80 Series Wiring Issues

[Wilbroad]

I am looking for wiring diagrams for this 91-93 Cruiser, if anyone can share a PDF i will be grateful..
A lot is a mess on my car and i need to reorganise it, e.g. the reverse lights are not working, someone had put a manual switch on the dashboard for these lights.

Also please advise where i can get a good replacement switch online.



[Firewout]

Link to 1996 80 series wiring diagrams.

https://drive.google.com/file/d/0B23Isi3fiMPOX29SQWFuWWdDaUk/view?usp=drivesdk&resourcekey=0-MziTpx1aMQGeXO020buc4A



[Wilbroad]

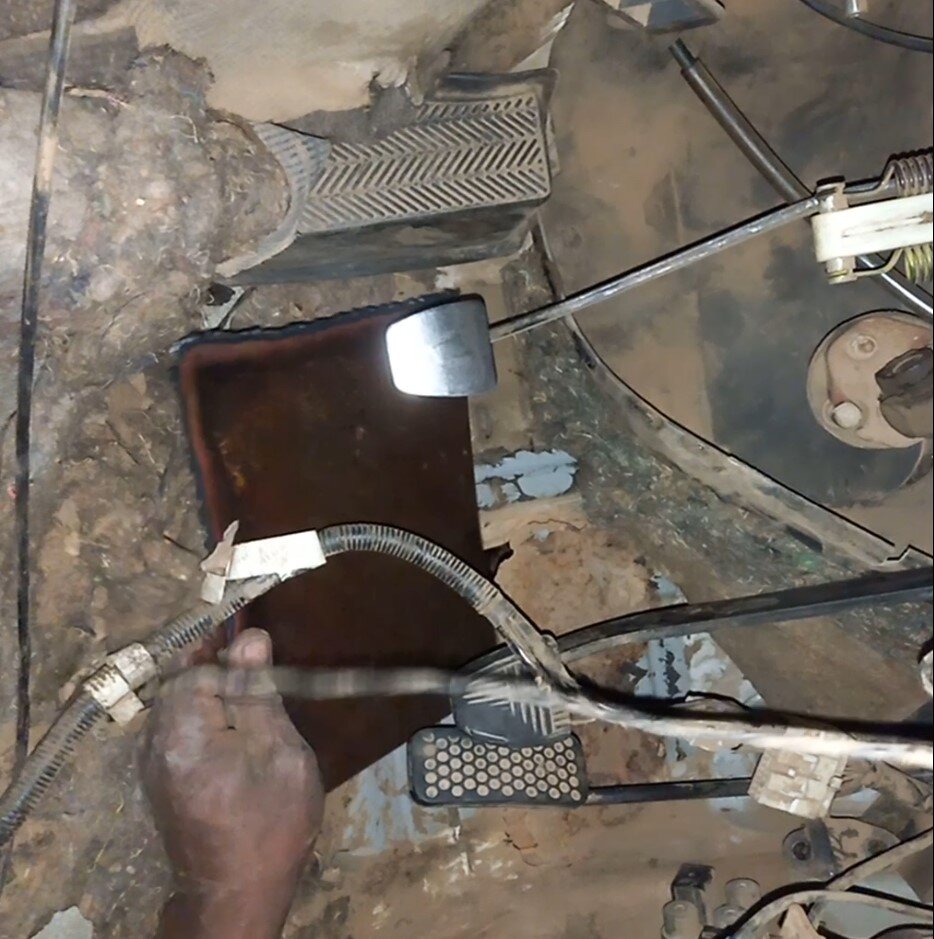

Thank you very much Firewout, you are a life saver, yesterday we removed the whole dashboard as as we were gas-welding the torn-up & rusted body under the passenger side and the driver's side. These were letting in dust.

Also found some rat nesting places in the aircon compartments. I turns out these rats chewed up a lot of cables and exposed them.

I am going to study and replace every broken cable, fuse or motor and bring this vintage to its best condition.

Thank you again so much!!, i really appreciate.
