Auto folding mirrors on the 150

Crispin

Administrator
Staff member
Guru
I am in great_britain
Feb 24, 2010
5,970
576
113
springs, gauteng
Right, I launched the 150 into the 20th century with auto-folding mirrors :D

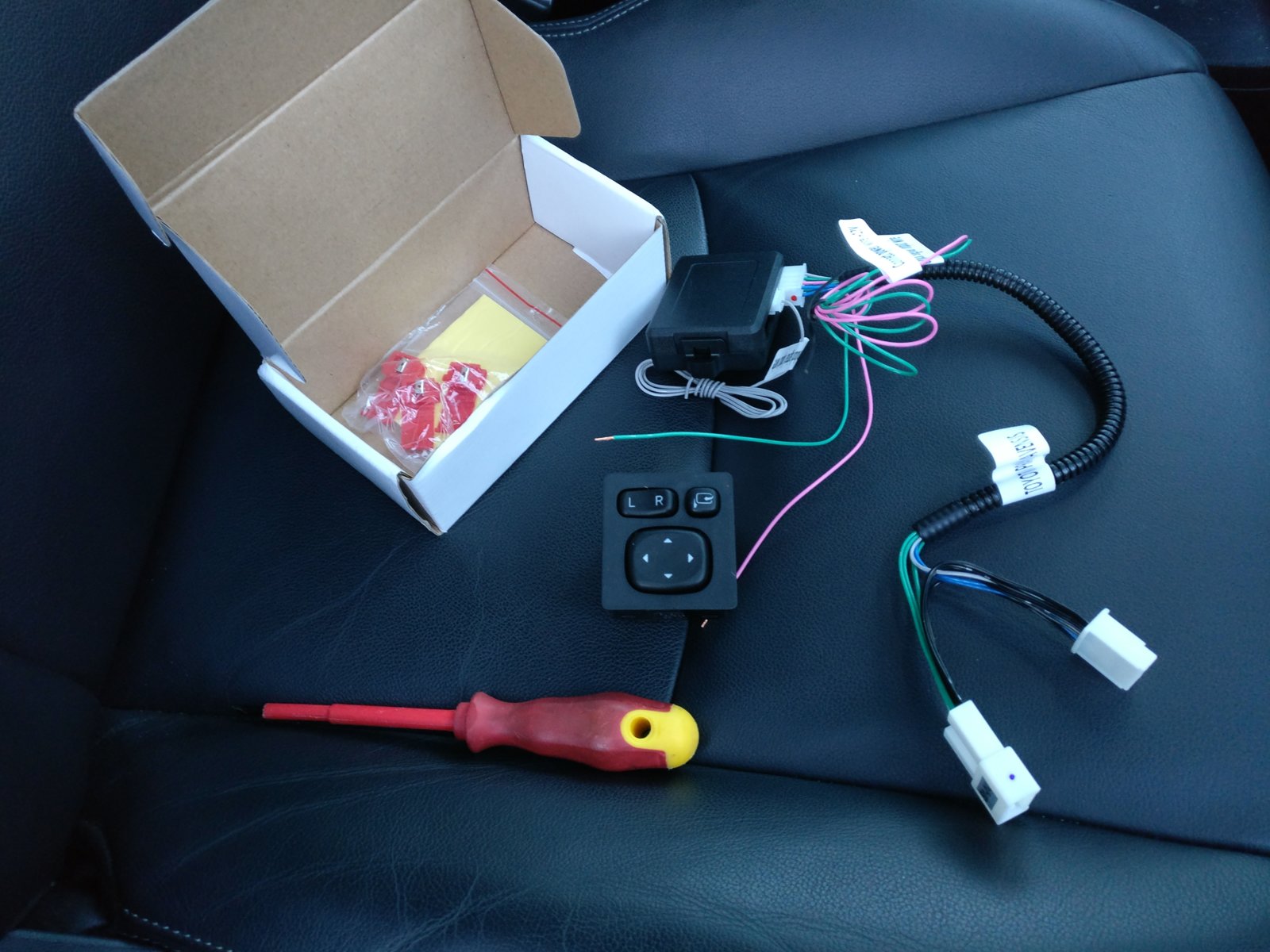

I bought a Auto-folding mirror kit from AliExpress for around £18 including postage.
Link: https://www.aliexpress.com/item/Int...32667768345.html?spm=2114.13010608.0.0.YRV2n2

They asked for a photo of the back of the mirror cluster so they could send the correct loom.

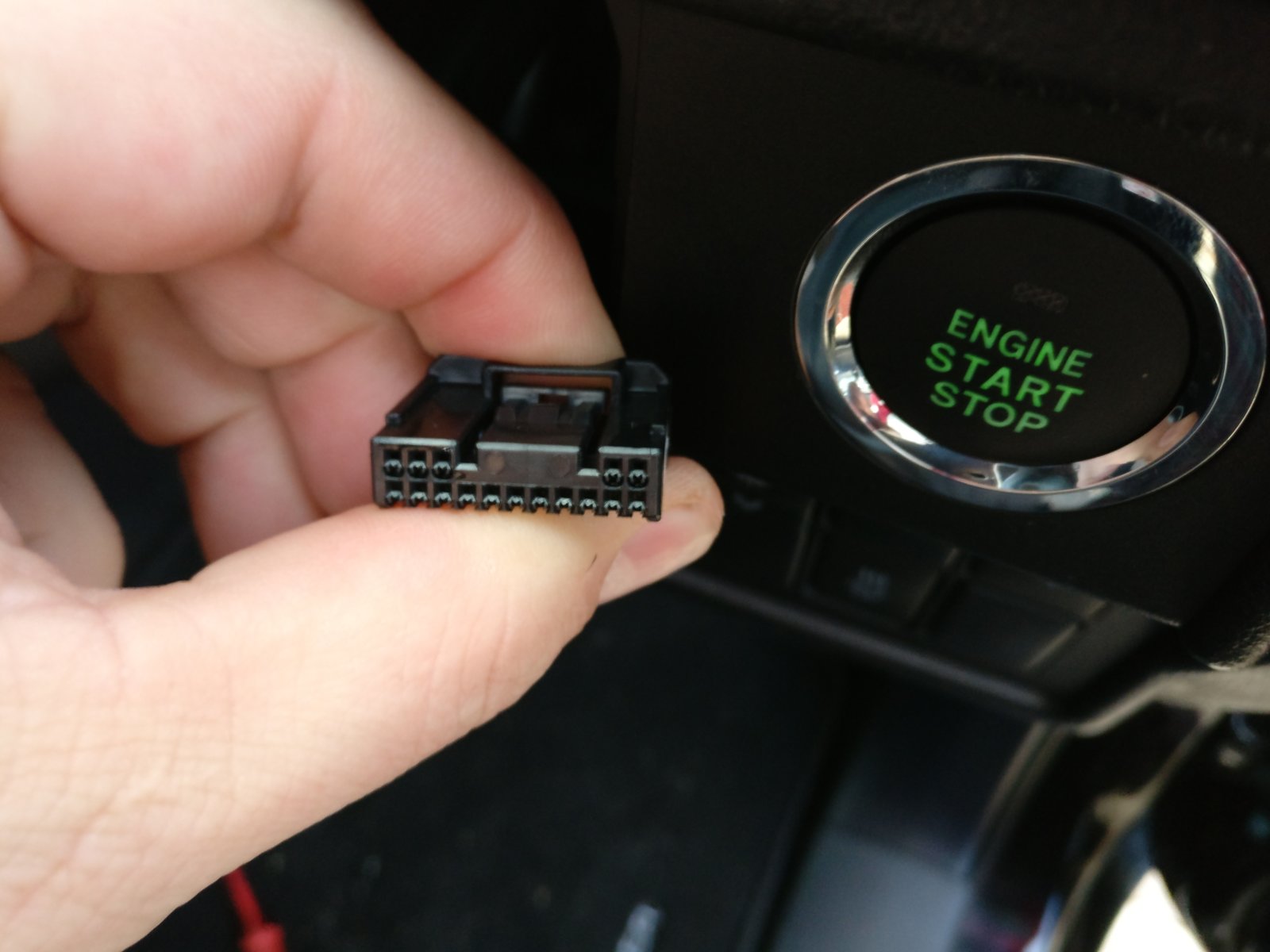

I sent this and it was sufficient.

The module arrived within a week which was pretty impressive.

Cluster out, loom adaptor in between and you can put it all back (Forgot pic :( )

Remove the kick-panel in the driver's foot well.
Next to tap off 12V (non-switched) which was easy enough - came off the door-control plug.

The next bit was a bit of a faf and took me a while to find as there are many wires and no instructions.
You need the lock pulse and the unlock pulse for when the doors lock and unlock. I thought I had found it on the white plug and after convincing myself it was correct and the module was broken I realised they were for the indicator flashes. :doh:

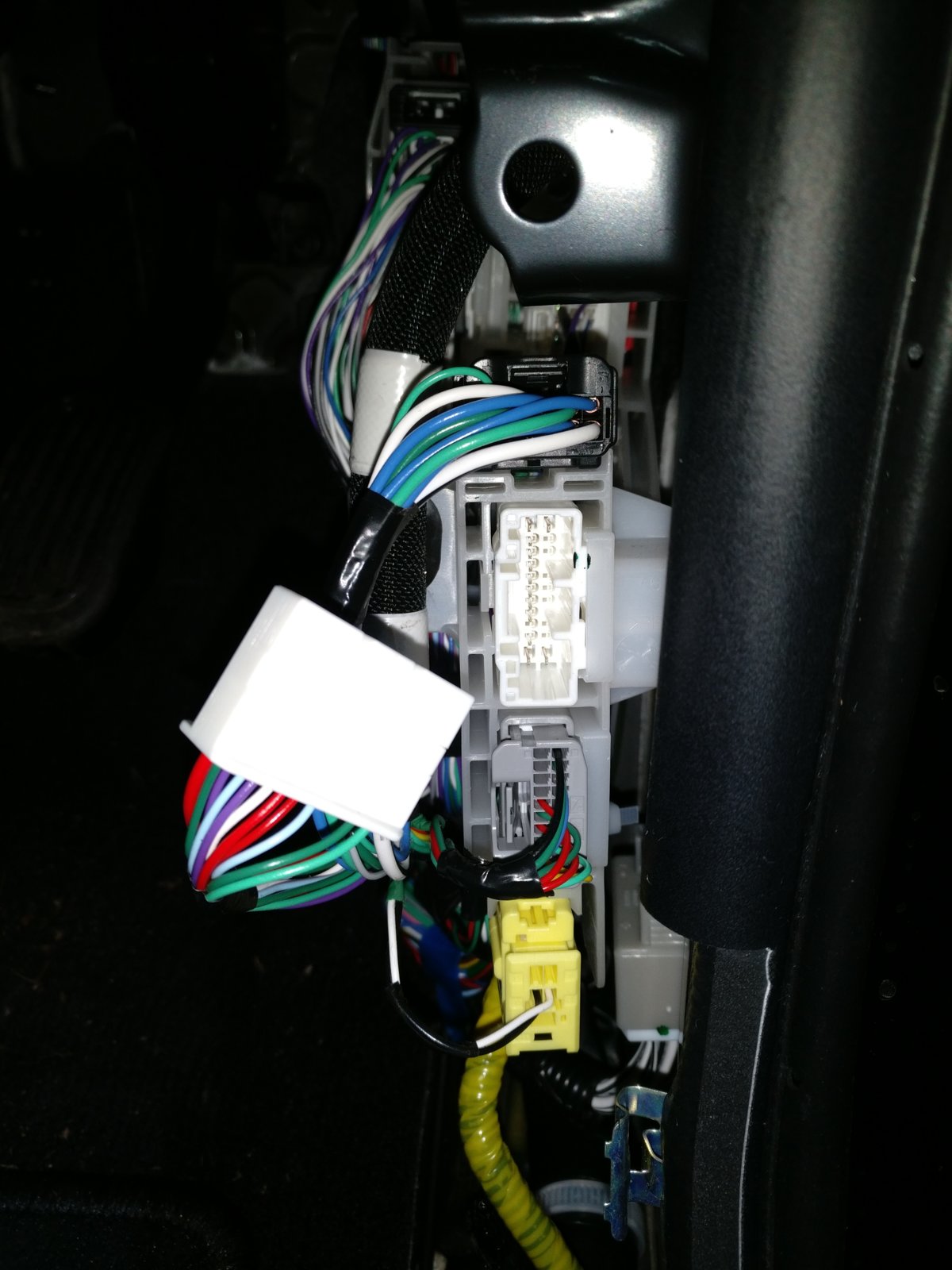

There are 4 plugs - going down, a black one, white one, grey one and yellow one.

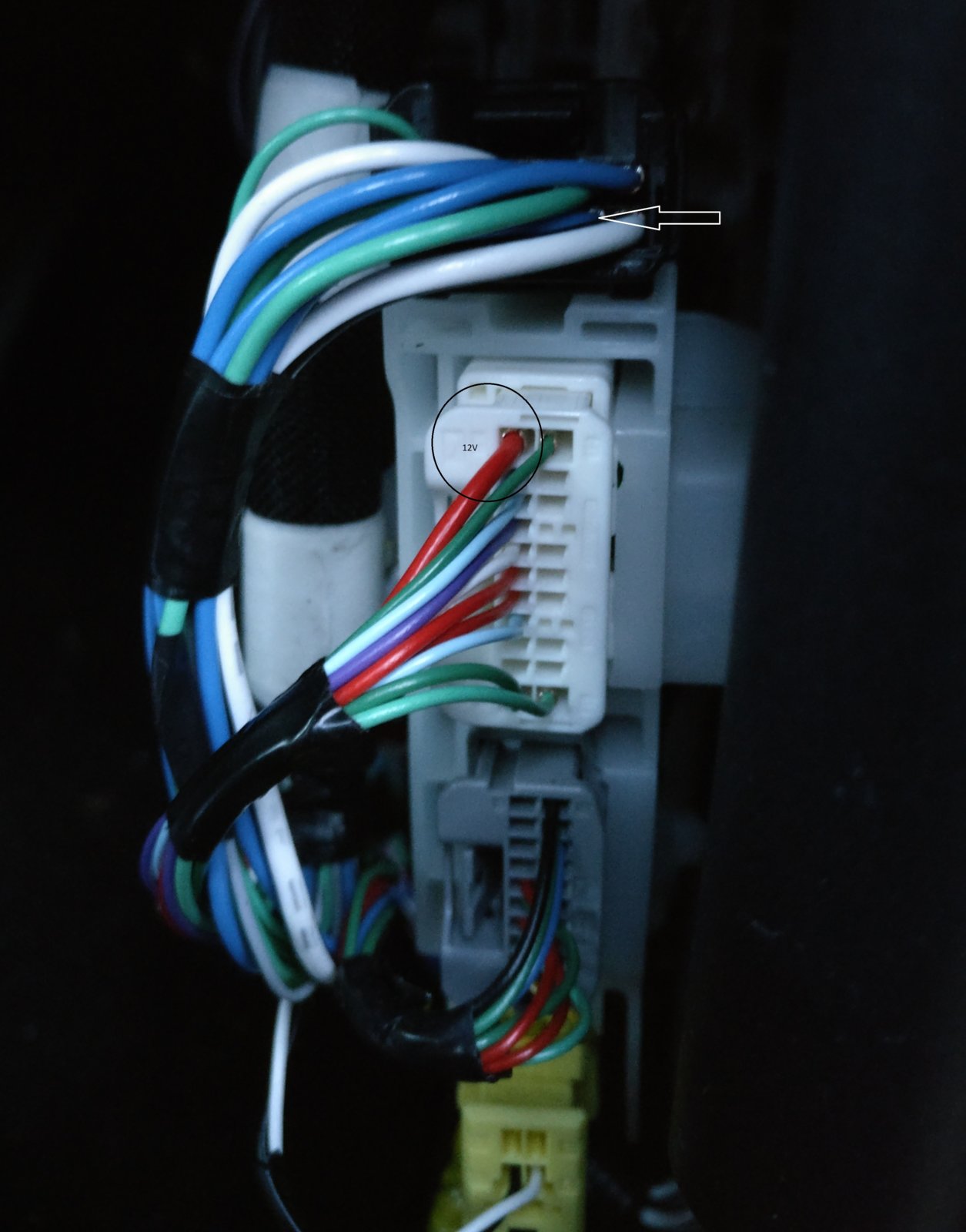

The 12V can be tapped off the thick red wire on the white plug.

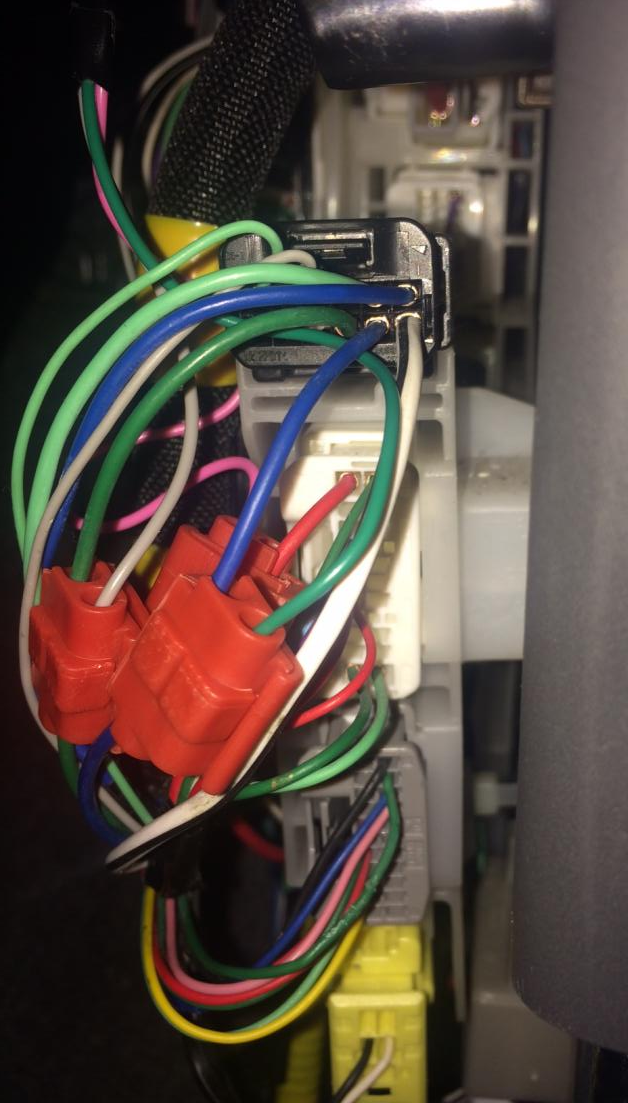

The lock and unlock signals are on the upper black plug. While plugged in, the bottom row of wires, the green and blue ones. (Blue one pictured above)

The green wire from the module goes to the blue one and the grey module wire goes to the green wire.


Tap those off, hold close the door switch and arm the alarm.
Like a 21st century car the mirrors whirr into action :)


I would love to understand why Toyota does not do this as a factory option. It would be even easier to do it in-house as it's all CAN-bus anyway. Ho hum.

Last edited:

TonyP

Super Moderator
Supporter
I am in uk
Feb 25, 2010
3,237
547
113
Goffs Oak
Is this the first mode, did 8 win the bet?

It amazes me that Toyota don't do this as standard. Welcome to the Landcruiser auto folding mirror club (currently at 2 members)

  • Like
Reactions: Crispin
Don't like the adverts? Remove them by becoming a supporting member.   Click here

psyxologos

New Member
Feb 6, 2017
39
2
8
Do Land Cruiser Invisible not have auto folding mirrors as a standard? I was not aware of that. I joust bought one... :openmouth::kissingclosed:


chapel gate

Well-Known Member
Supporter
Promoted Company
I am in england
May 26, 2014
4,077
2,528
113
near, leek staffs.
I think i can get auto folding mirrors to work on my 80, is the lock pulse just that, ie, a 1 second pulse or less?


psyxologos

New Member
Feb 6, 2017
39
2
8
Nope. :( Not when you lock it. At least, not on the LC 4.

I had no idea. So, buying this kit for my 16 plate Toyota Land Cruiser 2.8 D-4D 4X4 Invincible (177bhp) 5-Dr (I have no idea what the LC4 you are referring to is. Do I have the same model?) will give me folding mirrors? I am absolutely useless with doing that kind of work on my own, so I most likely will end up paying a garage to do it for me. Unless a kind fellow member who lives in the North West and knows what to do volunteers...


Crispin

Administrator
Staff member
Guru
I am in great_britain
Feb 24, 2010
5,970
576
113
springs, gauteng
Yup, it should work. Yours in the Invincible (aka - LC5) whereas mine is the LC4.

As for installation - a local garage should be able to do it for you. Less than an hour. Two max.


psyxologos

New Member
Feb 6, 2017
39
2
8
Yup, it should work. Yours in the Invincible (aka - LC5) whereas mine is the LC4.

As for installation - a local garage should be able to do it for you. Less than an hour. Two max.
Thanks for that. So, which is the part I need to purchase? Is it the same with yours? You mentioned they asked to see a picture of your mirror. If they asked me the same I would not know exactly what to take a picture of...


Crispin

Administrator
Staff member
Guru
I am in great_britain
Feb 24, 2010
5,970
576
113
springs, gauteng
Very cool. Glad installation was easy.

I want to find out how to enable the chirp on mine. EU law says cars are not allowed to chirp when arming alarm (it was a quiet day in the office when they decided that) so they disabled it on eu ones.

Think it's time to get the techstream out.


Gasmanjc

Member
I am in australia
Oct 11, 2016
196
124
43
Gold Coast
Yeah I need to get techstream so I can do the Windows and sunroof thing on long hold of the FOB. I got carista and a cheap OBD2 dongle but it was so cheap carista wouldnt recognize it properly. Other apps were fine with it though.


hamba

Well-Known Member
Supporter
I am in uk
Jan 3, 2016
254
102
43
Northern Ireland
Hi Gasmanjc, how do you find that snorkel? I'm looking to get one fitted and I really like the look of the tjm airtec.


Gasmanjc

Member
I am in australia
Oct 11, 2016
196
124
43
Gold Coast
Hi hamba. I have had no real issues with the snorkel. Only real negative I've heard although never actually spoken to anyone who has had the issue is that on very deep water crossings (over the bonnet) water "may" go up the windscreen and into the snorkel. I think if you you're going that fast into deep water you might end up with other problems . I have seen the safari type snorkels get their heads ripped off etc though as they hang out a fair way.

For me the decision was about aesthetics in the end. I just wanted to try and keep the lines as clean as possible if that is at all possible :D


Jack P

Active Member
I am in great_britain
Jan 3, 2016
85
29
18
East Sussex
Any idea if the same kit would work on a 120? Description states 2010-2015 models. Can't find one for a 2005 model.

Also can it be wired to only fold when double locking i.e pushing the key fob lock button twice?
