Auxiliary Fuel Tank Project (Land Cruiser 90)

KZJ90

Member
Joined
Mar 14, 2010
Messages
133
After two summer WVO testing, I decided to install an auxiliary tank under my Land Cruiser. Main reason for this is that it´s not possible to use WVO at winter time almost at all, because of it´s thickness (it´s even solid). So now I can use diesel for Webasto and for starting/heating up time.

So, I bought ATG stainless steel tank (27 litres), Sirai L340 -valves and an universal tractor fuel filter. I modified/welded the original fuel intake pipe for two tank hoses, fabricated/welded brackets for the tank and 30-plate heat exchanger.

I wrapped 2 metres of 10 mm copper pipe over the fuel filter, so it´s heated version now. A sensor for Oil Temperature gauge is installed too.

I have done 50 mm bodylift (body lifted from frame), so there is more space than normally under the body. The tank is just at the same height from the earth than the frame rails. The heat exchanger and the filter is installed just front of the tank.

The car is equipped with a rear heating, so there is going heating pipes from the motor. The water for the heat exchanger is taken from those.

Everything works well. :thumbup: Electrical connections/switches still need finishing.

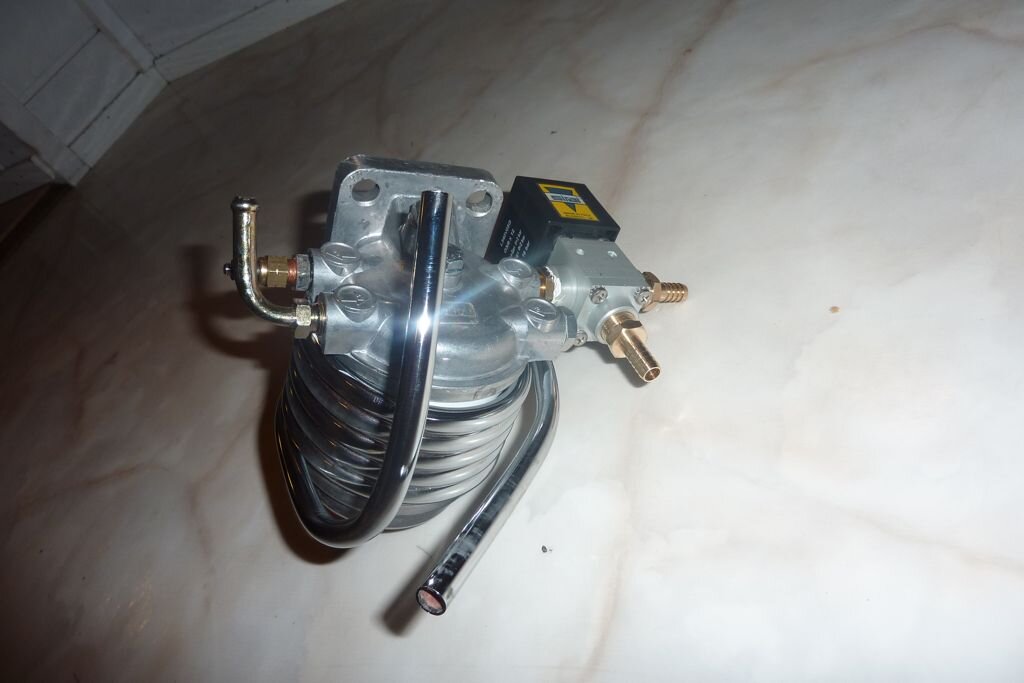

Universal filter+fuel temperature sender+copper pipe wrapped

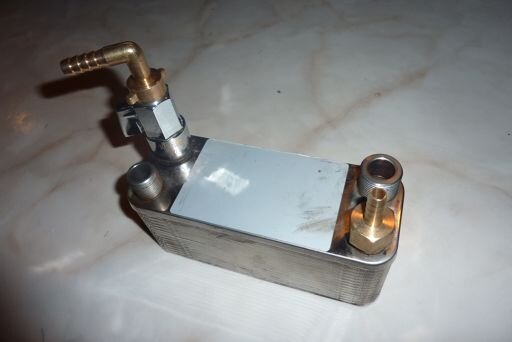

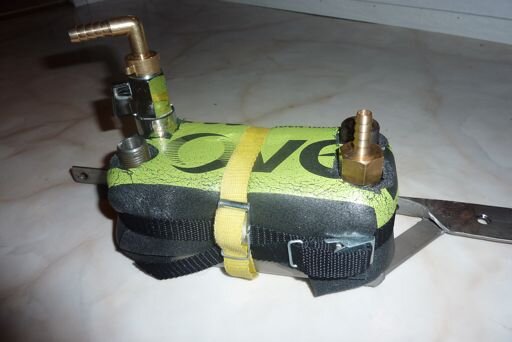

Heat exchanger (30 plates)+ball shut-off valve+insulation

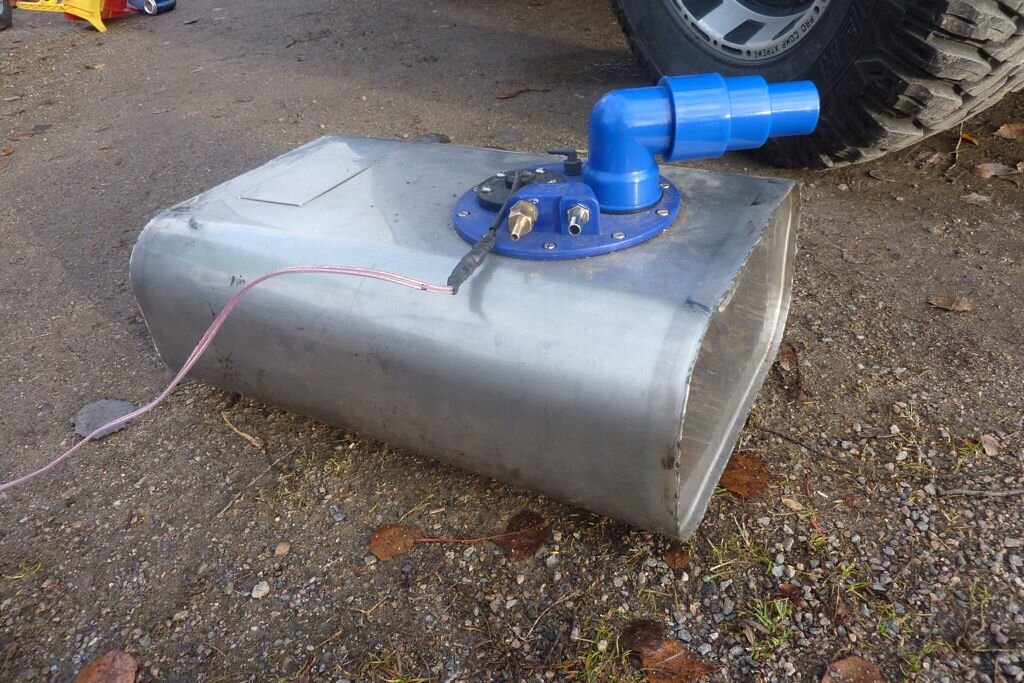

Fuel tank (ATG ST2027)

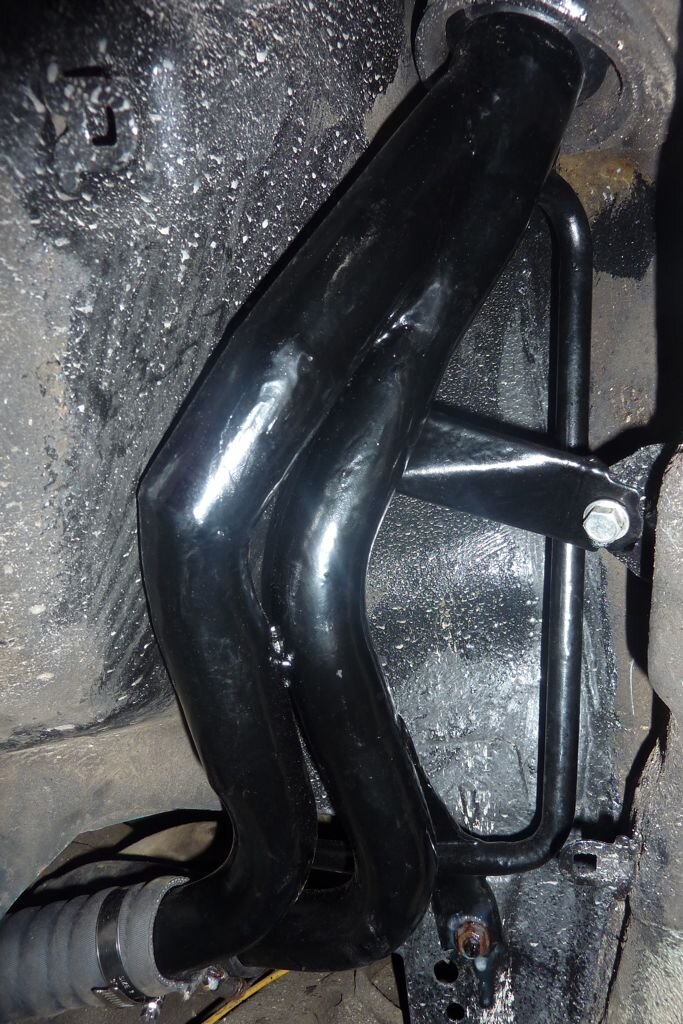

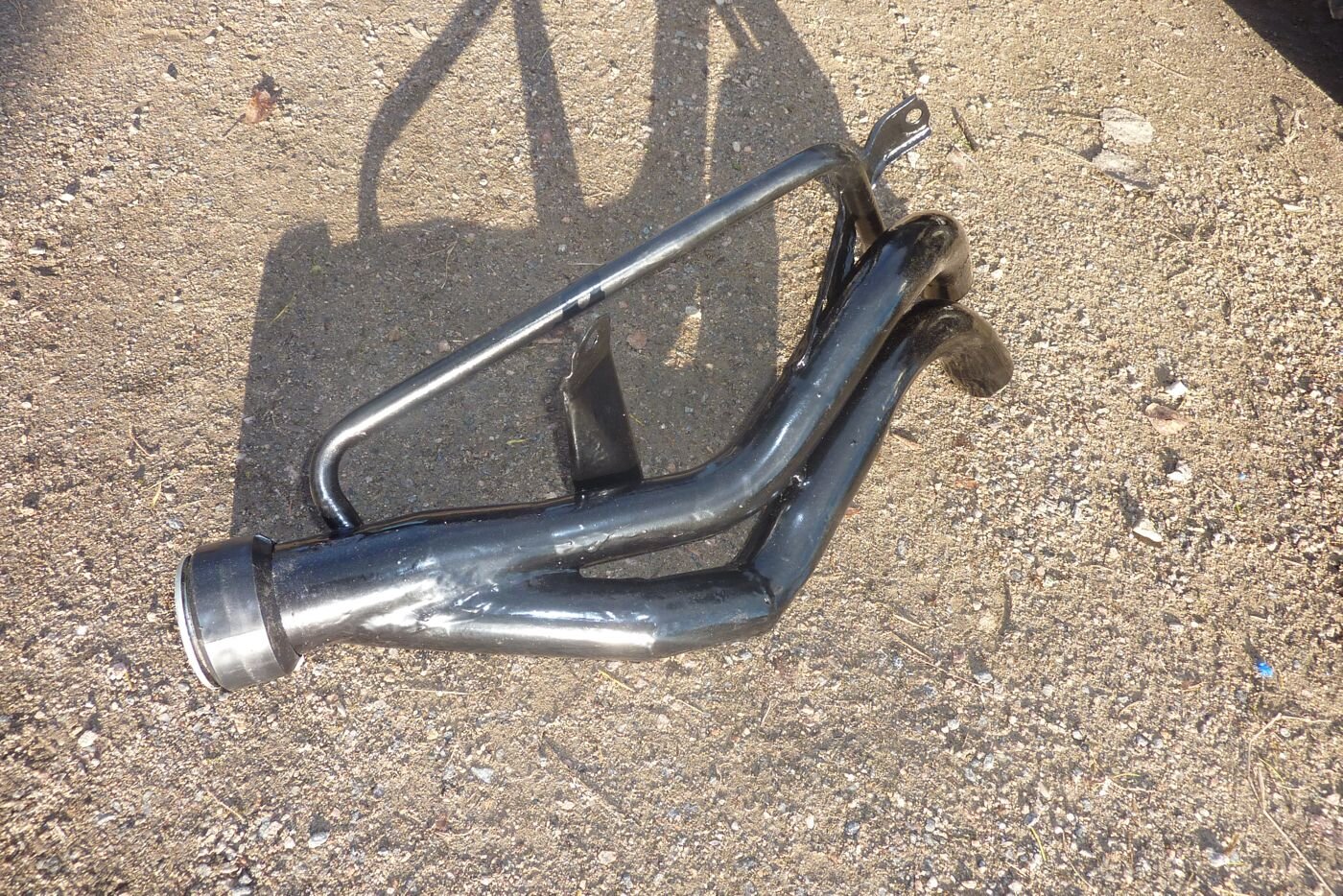

Modified tank pipe



Return line valve


Everything installed and working





Fuel hose insulation


Diagram (sorry messy draving)


Attachments

  • suodatin.jpg
    58.8 KB · Views: 228
  • lmmnvaihdin.jpg
    21.1 KB · Views: 399
  • lmmvaihd.jpg
    27.6 KB · Views: 234
  • tankki.jpg
    174.8 KB · Views: 271
  • tyttputki.jpg
    160.5 KB · Views: 201

karl webster

Land Cruiser Club sponsor
Promoted Company
Guru
Joined
May 20, 2010
Messages
5,590
Looks good mate. Did same with my filler neck as well. You have got a fuel heater for the oil under the bonnet as well though havnt you?
karl


Chris

Super Moderator
Supporter
Joined
Feb 24, 2010
Messages
17,304
Garage
Country Flag
europe
Nice going M.

Tidy looking addition. But with your healthy lifestyle, there can't be much waste oil around, surely? You aren't melting down all of the Elk are you? :o

Chris


KZJ90

Member
Joined
Mar 14, 2010
Messages
133
karl wester said:
Looks good mate. Did same with my filler neck as well. You have got a fuel heater for the oil under the bonnet as well though havnt you?
karl

No I haven´t (but the small glow plug version in diesel line, it´s been there since starting this hobby). The one and only (big 30-plate version) is under the rear floor and the fuel hose to the IP is well insulated.

Chris said:
Nice going M.

Tidy looking addition. But with your healthy lifestyle, there can't be much waste oil around, surely? You aren't melting down all of the Elk are you? :o

Chris

Tnx. Healthy? I don´t know about that. I have got free oil enough so far (from pizza/kebab places). ;) You can´t get vegetable oil from elks. :lol:

Don't like the adverts?  Click here to remove them

karl webster

Land Cruiser Club sponsor
Promoted Company
Guru
Joined
May 20, 2010
Messages
5,590
I have my heater under the bonnet. Need to mount it as close to the pumpas pos for mine though. I also am going to heat the veg tank to make it easyier to get up to the front. Going to put a pump at the back end as well as i have done that in the past to help ip pump. I love it though. The saving on oil is unbeleivable. veg rules
karl :thumbup:


Chris

Super Moderator
Supporter
Joined
Feb 24, 2010
Messages
17,304
Garage
Country Flag
europe
You can´t get vegetable oil from elks. :lol:

Maybe not, but they make a nice kebab though!

Chris


Crispin

Administrator
Staff member
Guru
Joined
Feb 24, 2010
Messages
5,991
Country Flag
great_britain
Nice project, not exactly cold enough here for that. :(

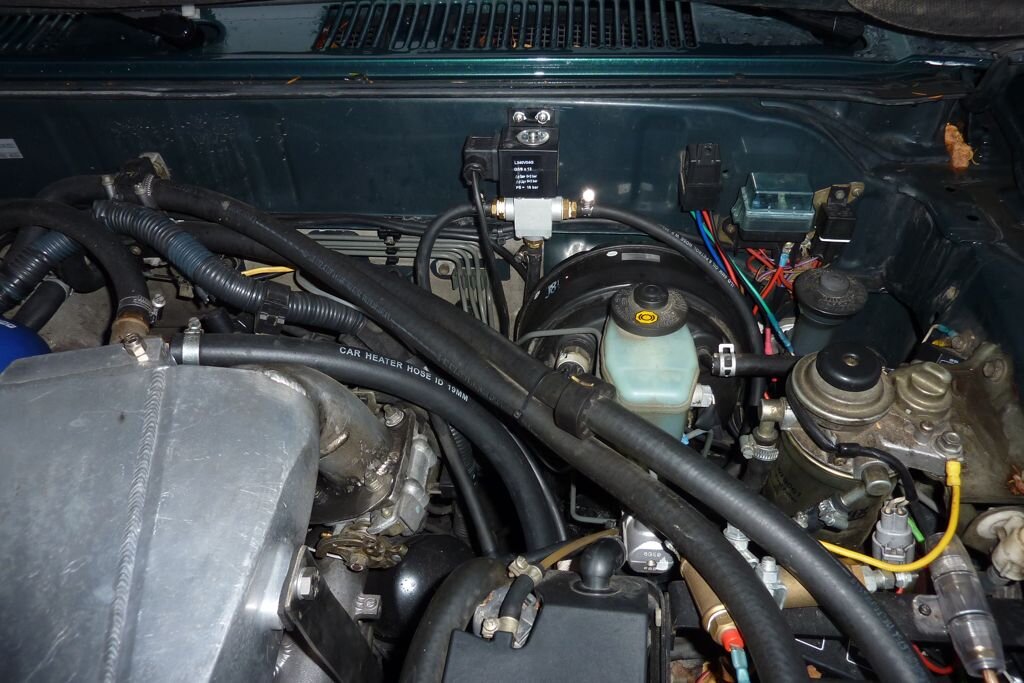

That's that to the bottom left? Water cooled intercooler?
