Boost Gauge Setup

CAT Apr 3, 2014

  1. CAT

    CAT Member I am in ireland

    108
    16
    18
    Map
    Hello everyone,
    I have a KZJ90 and I am currently doing a few mods.
    I have my bigger boots now, Hankook Dynapro AT-M and I've just installed my snorkel yesterday. We are getting there!
    I have a boost gauge and I am now looking to install it. I am pretty sure its a mechanical boost gauge, I have my tubing and T piece to tap into whatever section of the engine I need to! Initially I though I was going to place tubing directly into the intake post intercooler. I have a FMIC which I am going to install and always presumed this was going to be the best place to read the boost. What do you guys think? Otherwise it seems there should be some small vacuum tubing somewhere that I can attach my T piece onto and get a boost reading, but I have no idea where that is??!! Any help greatly appreciated. Many thanks.

  2. Beau

    Beau Well-Known Member I am in guyana

    1,896
    226
    63
    Map
    There is a tube that runs from the turbo to the turbo wastegaste (essentially what operates the turbo wastegate. You can put a T-piece in there and run a tube to your boost gauge.

  3. CAT

    CAT Member I am in ireland

    108
    16
    18
    Map

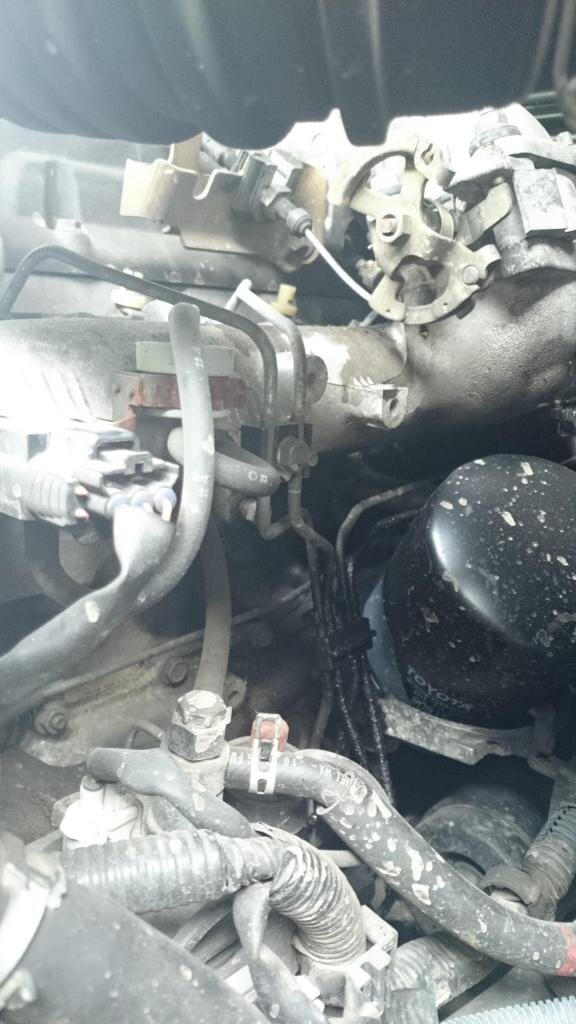

    What about this here, is this the 1kzte boost sensor?

  4. CAT

    CAT Member I am in ireland

    108
    16
    18
    Map
    Thanks Beau, any chance of getting some diagram to see the tube running to the turbo wastegate? toyo diy seems to have lost its diagrams?

  5. fridayman

    fridayman Well-Known Member

    1,578
    1
    36
    Garage:
    Map
    It's on the other side of the engine (to the pic) behind the intake pipe going down to the turbo (take this off to make access easier).

  6. Shayne

    Shayne Well-Known Member Guru

    12,061
    4,023
    113
    Map
    I think this is the pipe your looking for


    I have a 1KZTE but i doubt theres a great deal of difference in the lay out of a D4D , to get to my actuator i found removing the intercooler altogether and iirc a couple of heat shields was necessary , but i wanted to unbolt my actuator - getting to the pipe might be a bit easier .

    Last 2 pages here show my turbo actuator , i disconnected the pipe to give me room . http://www.landcruiserclub.net/foru...Tuning-Devices/page7?highlight=digital+tuning

    Last edited: Apr 4, 2014
  7. Beau

    Beau Well-Known Member I am in guyana

    1,896
    226
    63
    Map
    Yes, the pic Shayne has above is the pipe I was talking about.

    However I have seen people get boost reading's from the intake side as well however I think it can ready slightly lower values on the intake side than turbo side...It's debatable

  8. CAT

    CAT Member I am in ireland

    108
    16
    18
    Map
    I suppose after the intercooler there will be a loss of boost through the system. Do you think the picture above shows a boost sensor for the 1kzte? Its on the intake manifold.

    I would get a more accurate reading nearere the turbo I suppose. I can weight it up though, thanks for the info lads.

  9. Shayne

    Shayne Well-Known Member Guru

    12,061
    4,023
    113
    Map
    I would say the first pic you posted is a 1kz as there is no intercooler on that engine , i fitted my own cooler and had to move the throttle cable bracket shown in the pic .

    Take all the air box pipe off and you might be able to see your actuator .

    Last edited: Apr 4, 2014
  10. CAT

    CAT Member I am in ireland

    108
    16
    18
    Map
    Great stuff, thanks Lads.

  11. fridayman

    fridayman Well-Known Member

    1,578
    1
    36
    Garage:
    Map
    Shayne - did you replace your intake manifold, or fit a throttle body adapter plate for the intercooler?

  12. Shayne

    Shayne Well-Known Member Guru

    12,061
    4,023
    113
    Map
    The lower intake manifold housing the throttle body is untouched i just removed the upper alloy pipe . On my truck the throttle cable bracket was bolted to the alloy pipe and so with the pipe removed to make room for the cooler i had to find another way to secure the bracket .

  13. fridayman

    fridayman Well-Known Member

    1,578
    1
    36
    Garage:
    Map
    Hmm I need to go look at your pics again. I'm about to do mine.

  14. fridayman

    fridayman Well-Known Member

    1,578
    1
    36
    Garage:
    Map
    I see you made an adapter. I've actually sourced the matching inlet manifold.

  15. Towpack

    Towpack Well-Known Member Supporter I am in england

    3,366
    1,018
    113
    Garage:
    Map
    Take the feed from the air intake, after the IC if there is one and as close to the intake manifold as possible. This way you get a reading of the actual boost supplied to the engine after any losses through the IC and pipework etc. JMO

  16. Shayne

    Shayne Well-Known Member Guru

    12,061
    4,023
    113
    Map
    Whole system is pressurized until the wastegate opens so it shouldn't really matter where you take the reading .

  17. Towpack

    Towpack Well-Known Member Supporter I am in england

    3,366
    1,018
    113
    Garage:
    Map
    It shouldn't but it does. An IC will have a resistance to air flow so there will be a difference between the inlet and outlet pressures.

  18. CAT

    CAT Member I am in ireland

    108
    16
    18
    Map
    Thanks for the help so far lads, just another question, I need to hook up the gauges to a power supply that is activated when the ignition is turned. Any ideas as to what is the best option for doing this? Many thanks in advance, Liam.

  19. fridayman

    fridayman Well-Known Member

    1,578
    1
    36
    Garage:
    Map
    The cigarette socket / power point is an easy place.
