Hj60 front winch bumper build

[Iwan]

After having snow on the ground last wednesday, thought I better sort out my 60 series for the mot!

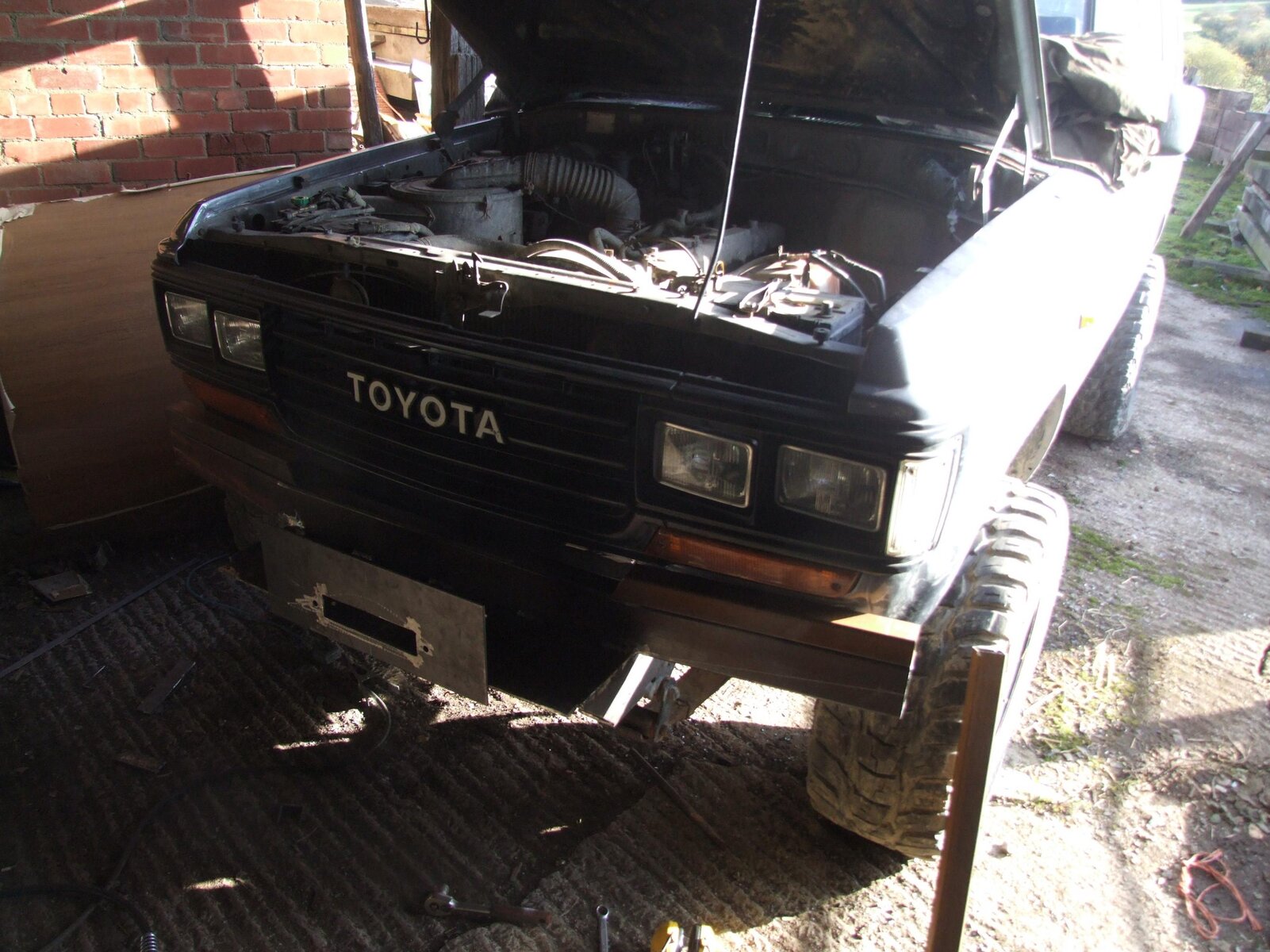

Since my 60 series has a 65mm body life we decided the best place to fit the winch plate is ontop of the chassis and work it out from there!


The main aim goal is to try and keep the bumper as compact as really possible.

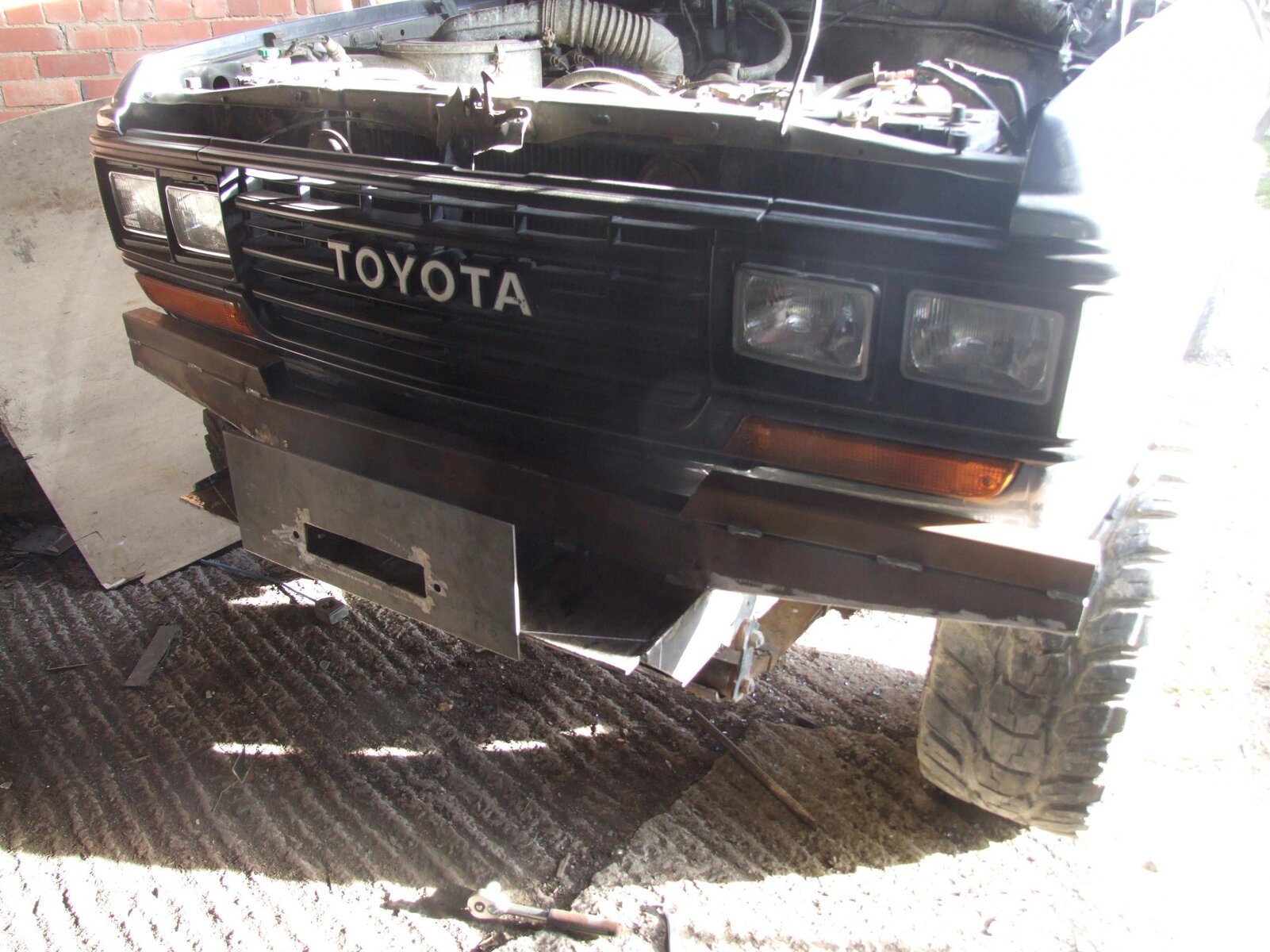

Decided to add the 50x50 box to the top of the 100x50 box to raise the top level further up.

Will just add 2 pics as I dont want to loose my attachments!! Many more pics to follow!!



[Iwan]

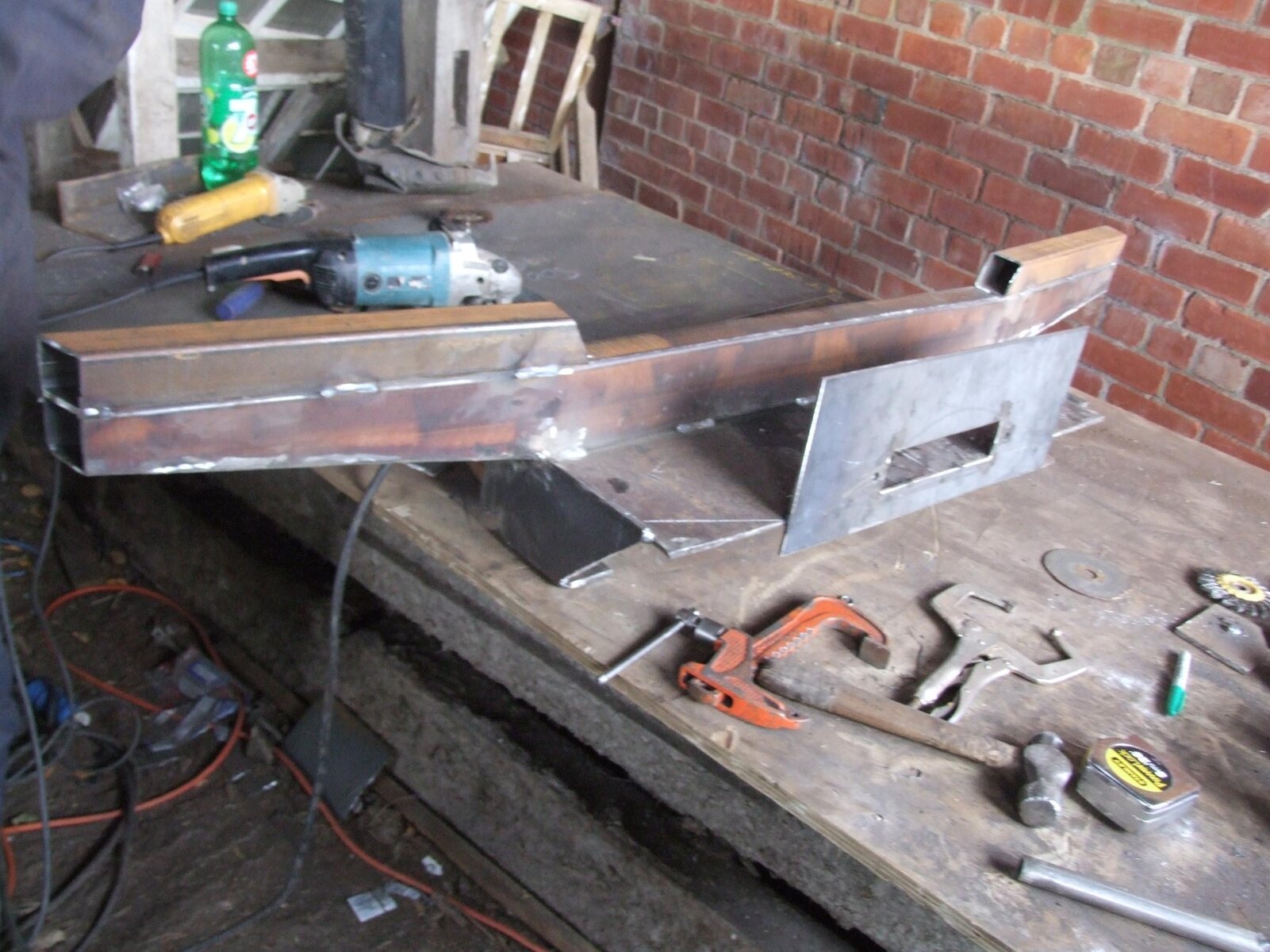

A couple more pics of a bit more progress


Have thinned out the ends to allow a good approach angle.

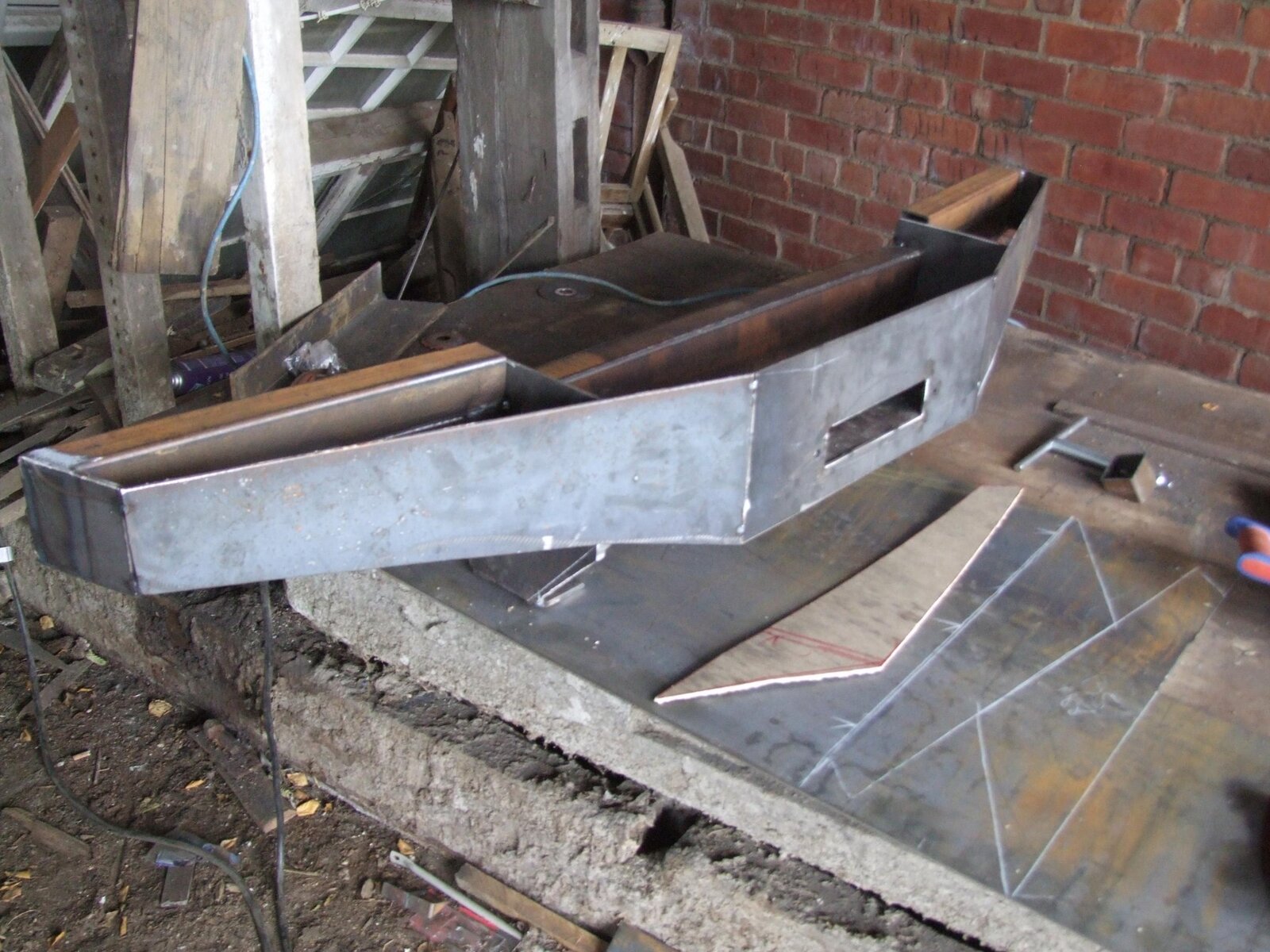

End angles cut ready for a 5mm plate corner. Taking a good form now.



[karl webster]

Coming on nicely

Are you planing on getting rid of the sharp edges on the front of the Chasie legs?

Is this one going to make another show at Lincomb this year then?



[Iwan]

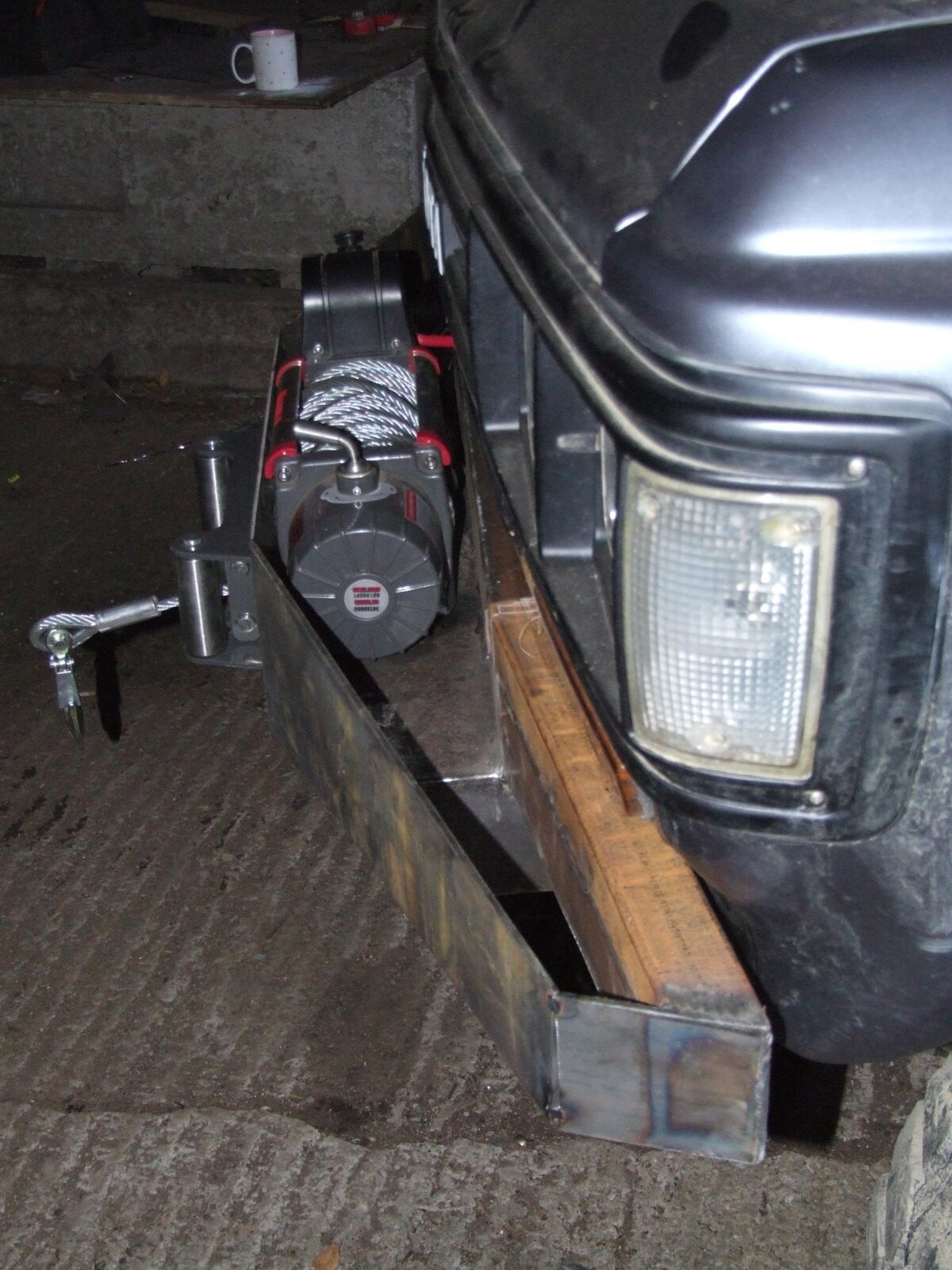

So the progress upto yesterday, pretty much happy with the format, quite a bit more to do but hope to get it finished today.




Pretty good going for 15hrs work so far



[Iwan]

Coming on nicely

Are you planing on getting rid of the sharp edges on the front of the Chasie legs?

Is this one going to make another show at Lincomb this year then?

Cheers Karl, pretty chuffed with it. We are going to build the welds up on the corners and then form them to a smoother radius.

It was a good move to cut the corners down on the winch plate as it worked to narrow the front of it and then make the return angles more acute.

Hope to get it on the road next week, so be ready to attend Lincolm!



[moggy1968]

looking good that fella!



[tonytoyota]

Hi Iwan that progress is looking good and I love the look on the 60 thanks for the pics R you OK from tonytony



[karl webster]

Now I see the way your going.

lpoks great.

New winch as well !



[Iwan]

Now I see the way your going.

lpoks great.

New winch as well !

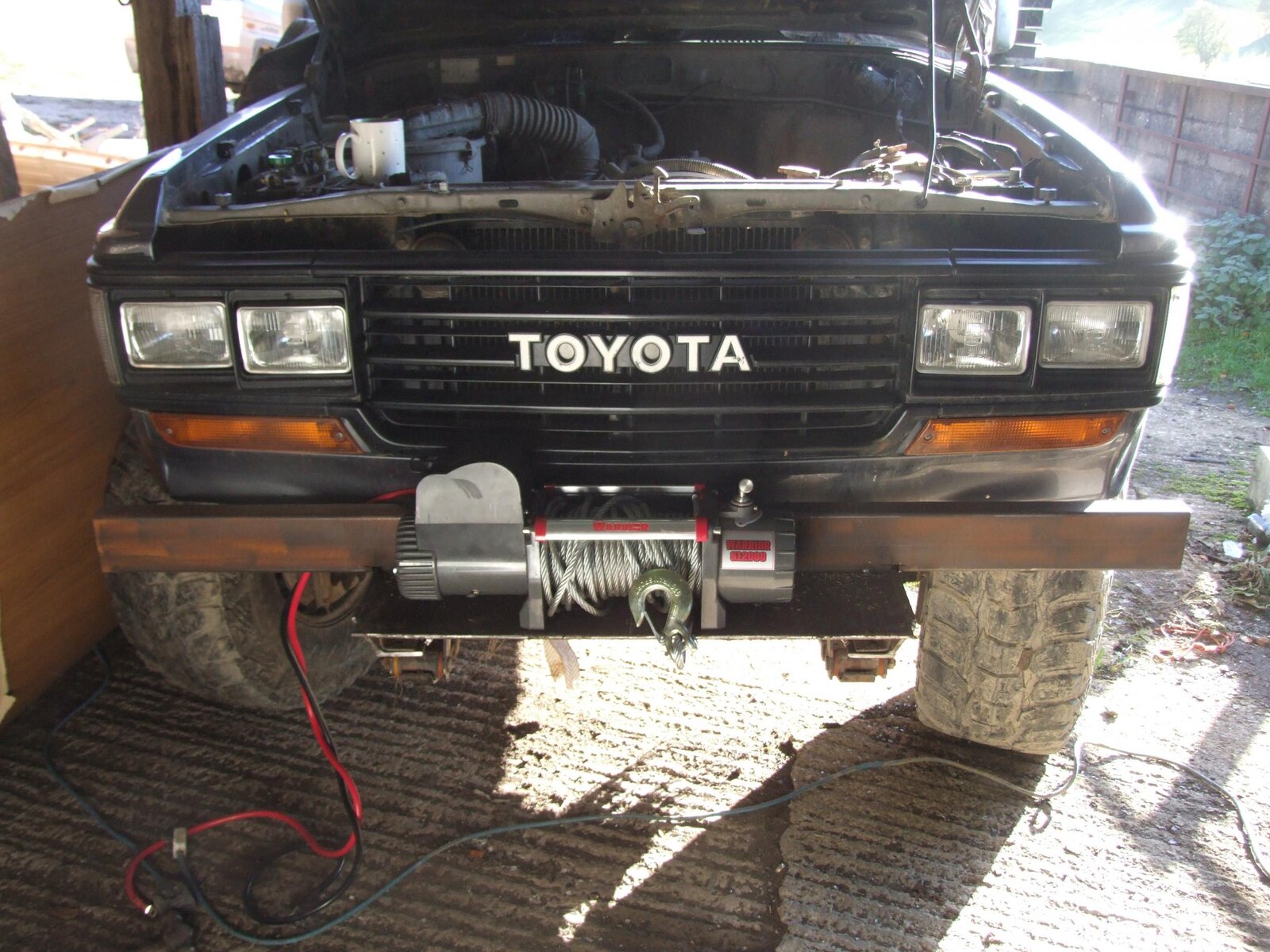

Ahh! The winch is the problem! 12v! But perfect for setting up the bumper, I swapped a 24v winchmax 17000lb winch for it off my neighbour. That was way too excessive with needing 8"x 8" of space for it to fit! Need the smaller mounting bolt pattern winch setup in 24v.



[Iwan]

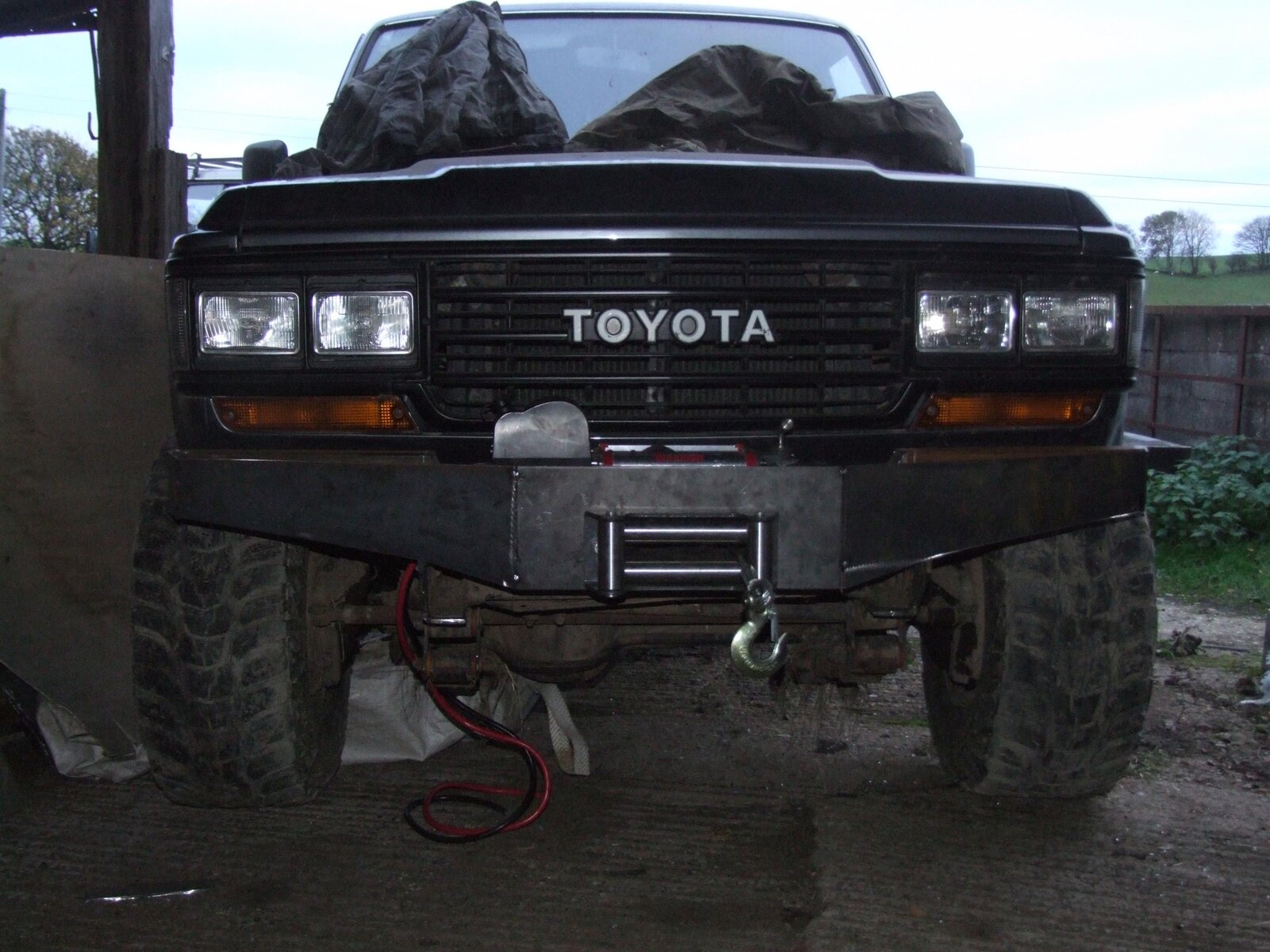

A few more pics of the progress.


Easy to mark out the rest with a template, Mat is a propper pro at this job!

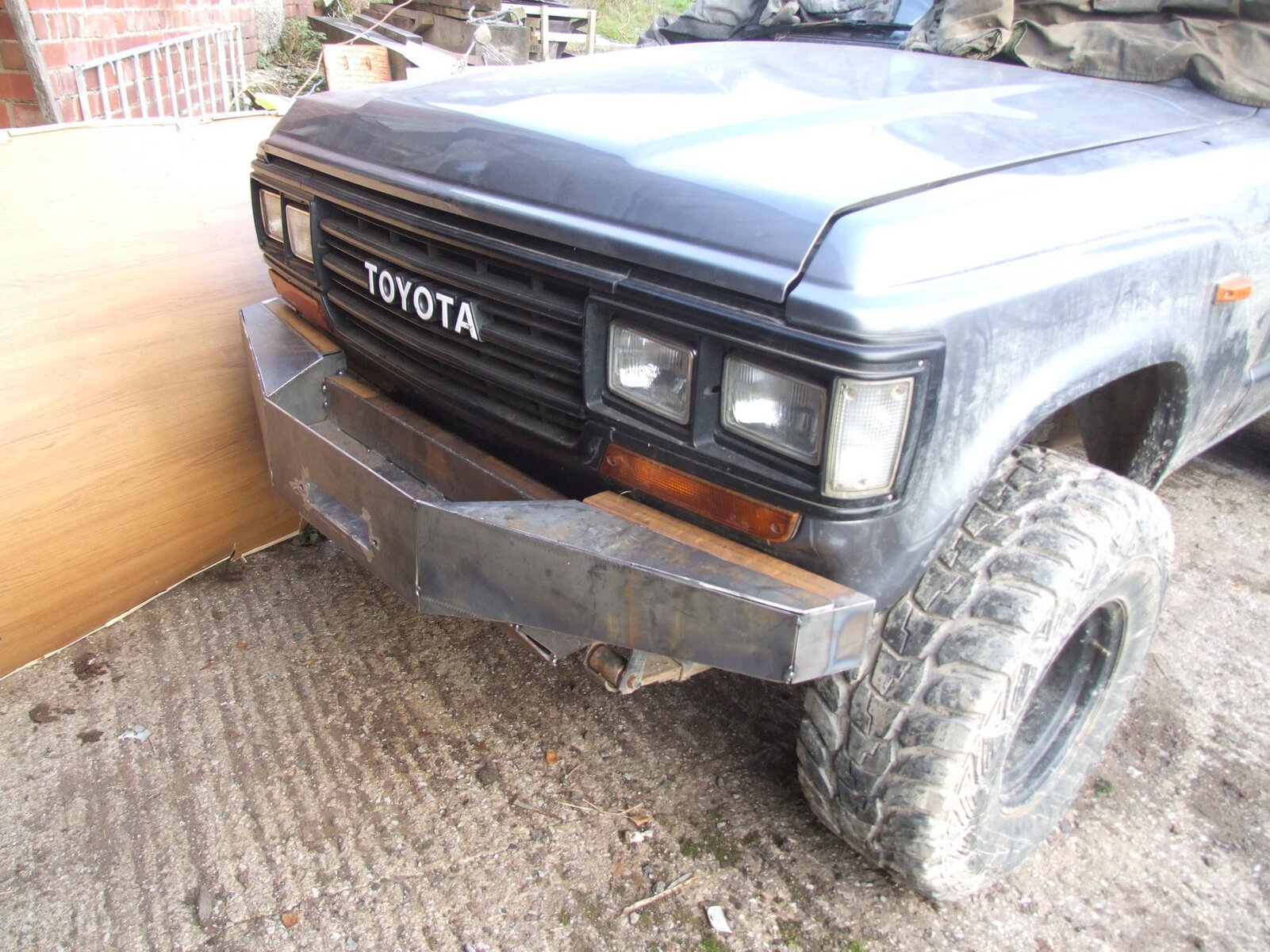

Pretty much a finished look for it, I like the highup look of it!
