Kaymar wheel carrier

[pekkerwood]

g’day everyone

Can anyone tell me the measurement from the tail gate to the outside face of the spare wheel when attached to a kaymar dual wheel carrier, or tail gate to the stud plate.

I’m looking at getting one but not sure if it will fit in the shed

Thanks



[SamW]

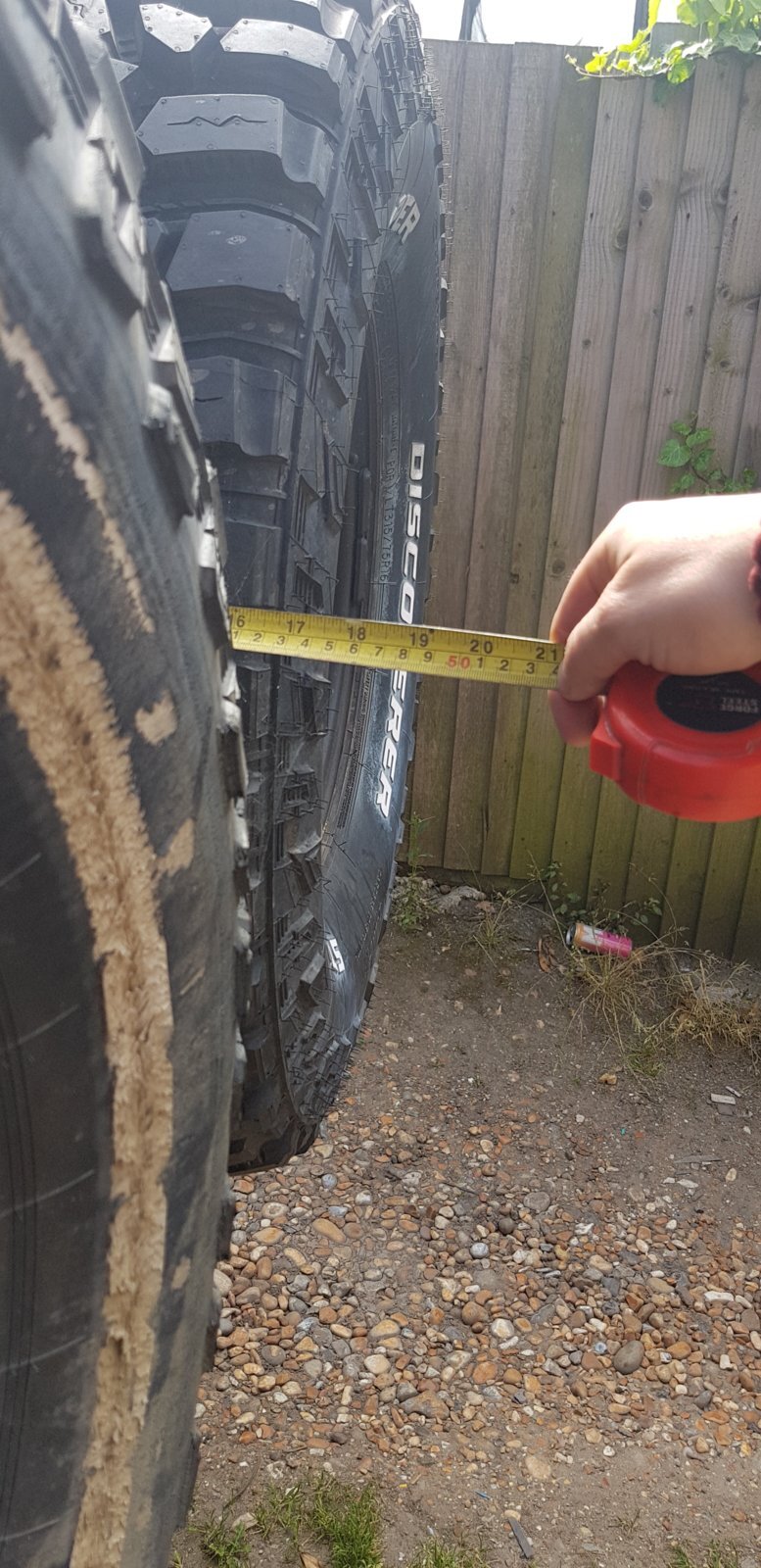

Hi mate my kaymar is quite old so not sure it they will still be the same but mine from the tailgate not the recessed bit is about 17"(432mm) that is with 315/75/16 tyres on it hope that helps



[SamW]

Thats to the front of the tyre



[froggy Steve]

I will measure mine when I get back later this pm just to double check



[pekkerwood]

Thats to the front of the tyre

View attachment 145668

Thanks mate you do good work



[froggy Steve]

I got 360 mm to the back edge of the rear mounted number plate light.....



[pekkerwood]

I got 360 mm to the back edge of the rear mounted number plate light.....View attachment 145678 View attachment 145678 View attachment 145679

There is a 70mm discrepancy with the measurements.

One does have a larger wheel with



[pekkerwood]

There is a 70mm discrepancy with the measurements.

One does have a larger wheel with

There is a 70mm discrepancy with the measurements.

One does have a larger wheel with

i hit the wrong button on my phone, I was going to say

Good be the larger measurement has a bigger wheel and maybe a off set rim.

I’ll be running 285/75/15 on a standard steel rim

Thanks for all the efforts



[froggy Steve]

just been out again with straight ruler and stick - turns out I am a blind baffoon......I have 400mm from bottom of upper tailgate to number plate holder. I am running coopers 285/75/16 on standard Toyota Alloys



[pekkerwood]

just been out again with straight ruler and stick - turns out I am a blind baffoon......I have 400mm from bottom of upper tailgate to number plate holder. I am running coopers 285/75/16 on standard Toyota Alloys

Thanks mate
