Prado LJ78 fuses

swilce

New Member
Joined
Mar 2, 2015
Messages
9
Country Flag
uk
Hi
I have just acquired a 1992 Prado LJ78 2.4 diesel.
The cover has come off the fuse box and I have no idea which fuses do what.
Does anyone have a fuse layout they could send me.
I have searched all over the net and not found one yet
thanks in advance
steve

Last edited:
Yeah I have the same jeep... I can send you a photo of mine, if you want... .. can I post the pic on the page ? im new here all so :whistle:

Think you need to get your post count up before you can post photos

ok will keep the fingers busy typing here ... cheers

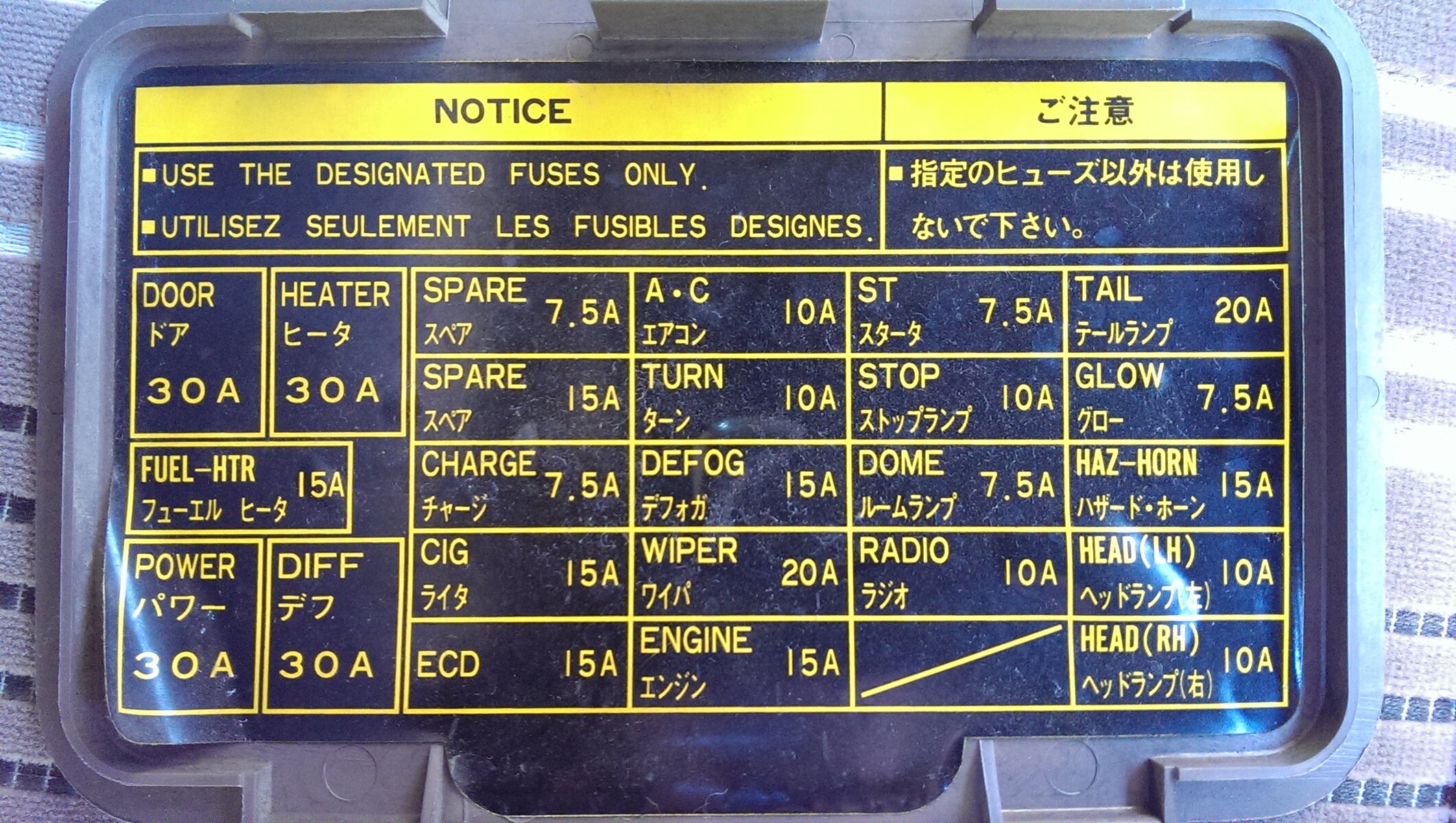

managed to get a copy of the fuse layout.
Only discrepancy I have found is that there is no fuse for the glow plugs in my car.

for future reference:
