Turbo swap 1KZ-TE

Shayne Sep 16, 2015

  1. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map
    I don't like the look of this job but a garage gave me one of those chin scratching humming and harrring errrrmmmm maybe a 4 or 5 or 6 hour job i wouldn't like to say :icon-rolleyes:

    So any helpful advice would be appreciated .

  2. Beau

    Beau Well-Known Member I am in guyana

    1,877
    221
    63
    Map
    hmm I'm not too sure I've ever removed the turbo from the actual engine bay but if I was, I would imagine removing the exhaust manifold would be your first step. Then you can remove the oil lines running to and from the turbo and also the down pipe. Not too sure what else. I have the head and manifolds off my engine at the moment, so I'll try and get some pictures tomorrow for you so you can understand the job better.

    Are you replacing the turbo with anything special? :icon-cool:

  3. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map
    Any pics you can offer would be appreciated Beau its going in blind that bothers me sods law means we always find the right bolt to undo after we have removed lots that weren't necessary and i can't imagine any coming away easy .

    So sure was i that you would ask i almost answered the "anything special" question in my first post :lol:

    Temptation was there but i've spent a good few hours this evening researching and i'm not convinced there is anything to be gained by so called upgrades . TE means boost is limited by ecu so we can't even max out our factory set up and other options such as new core etc don't in reality do anything other than alter where in the rev range boost comes in .

    CT12B I believe i'm looking for and its £155 from maxspeedingrods . Roughtrax want over 100 for a repair kit so .....

  4. BobMurphy

    BobMurphy Well-Known Member I am in scotland

    1,456
    457
    83
    Map
    Remember there's a water feed to the turbo as well :whistle:.

    Bob.

  5. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map
    I know there's one in there Bob but i've no idea where , should i start with draining oil and coolant as it seems unlikely i will be able to clamp either feed closed ?

  6. Rob Cowell

    Rob Cowell Well-Known Member I am in wales

    1,205
    551
    113
    Map
    Shayne, have you got a workshop manual for it? I have the Gregory's manual that covers the engine. There are 3 pages covering removal, inspection, dismantle, reassembly and refitting (and another half page for the intercooler). If you PM me your email address I should be able to scan or photo it. Skim reading, you need to drain coolant, but not oil.

  7. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map
    Of course i have i've had it so long without using it i never thought on it ! thanks Rob .

  8. wobbly

    wobbly Well-Known Member

    2,617
    80
    48
    Garage:
    Map
    I fitted a maxspeedingrods ct20 to my old LJ78, seemed a decent piece of kit, and unbelievably cheap !

    Did you get a new gasket, mine didnt come with one, worth checking before you destroy the old one.

    Pete

  9. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map
    Still waiting for them to email me back about gaskets Pete i also want to be sure its a steel wheel rather than ceramic .

  10. karl webster

    karl webster Land Cruiser Club sponsor Promoted Company Guru Land Cruiser Club Promoted Company

    5,448
    966
    113
    Map
    Just be careful buying cheap turbos Shayne.Ive had loads of people come to me for a second hand unit after fitting a cheap £200 new turbo that have failed in no time at all.

  11. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map
    Seems a well established and respected company if you google "forum maxspeedingrods" results don't just come from the UK and the feedback seems good . No telling where anything comes from nowadays so try it and see is all i can do .

    Last edited: Sep 17, 2015
  12. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map
  13. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map
    Removal turned out to be much easier than i expected it is time consuming but a lazy 3.5 hours on my first attempt including umpteen tea breaks while i sorted bits and bobs on the phone and com . However on inspection i can't see any faults its a bit black as to be expected but i can detect no play and it spins almost as good as the new turbo so a wasted effort perhaps . I do wonder about how black the surrounding area is though :think:

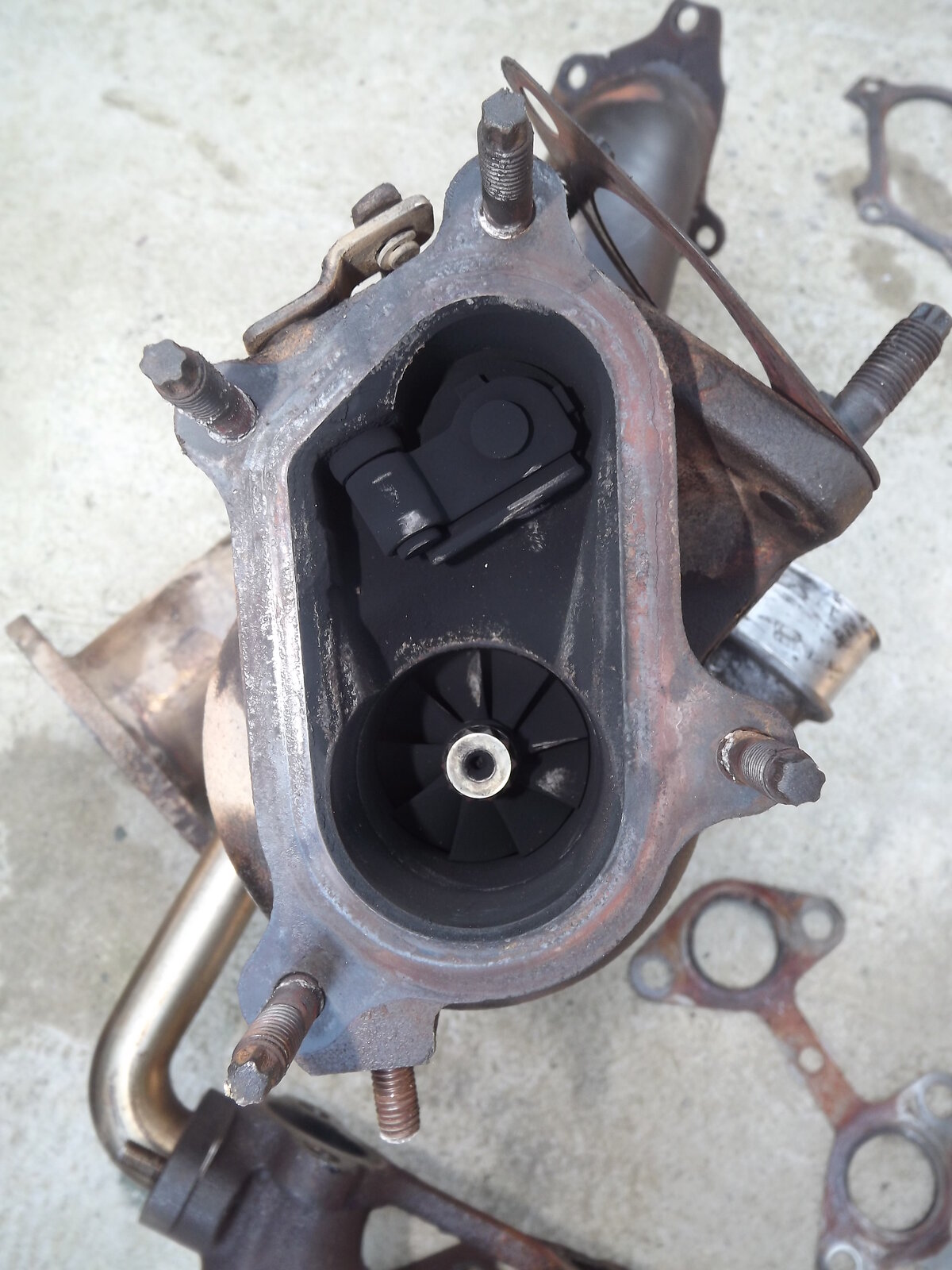

    Turbo out 004.JPG

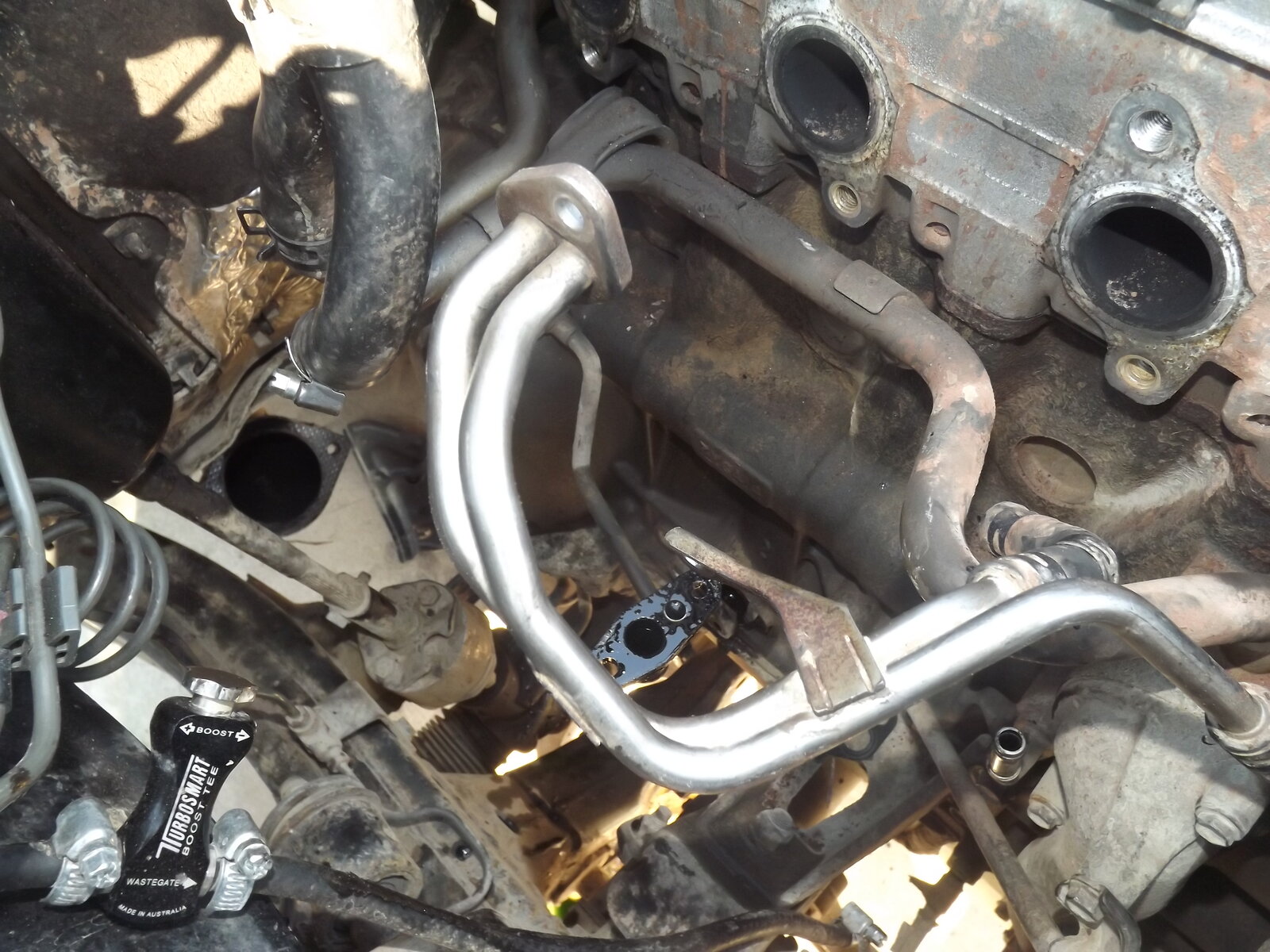

    Turbo out 003.JPG

  14. clivehorridge

    clivehorridge Well-Known Member Supporter Guru I am in romania

    14,490
    4,386
    113
    Garage:
    Map
    ... and there was me thinking how clean it all looks... :doh:

  15. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map
    It will all get a good scrub tomorrow with white spirits before i start putting it back together its high time she had some tlc .

  16. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map

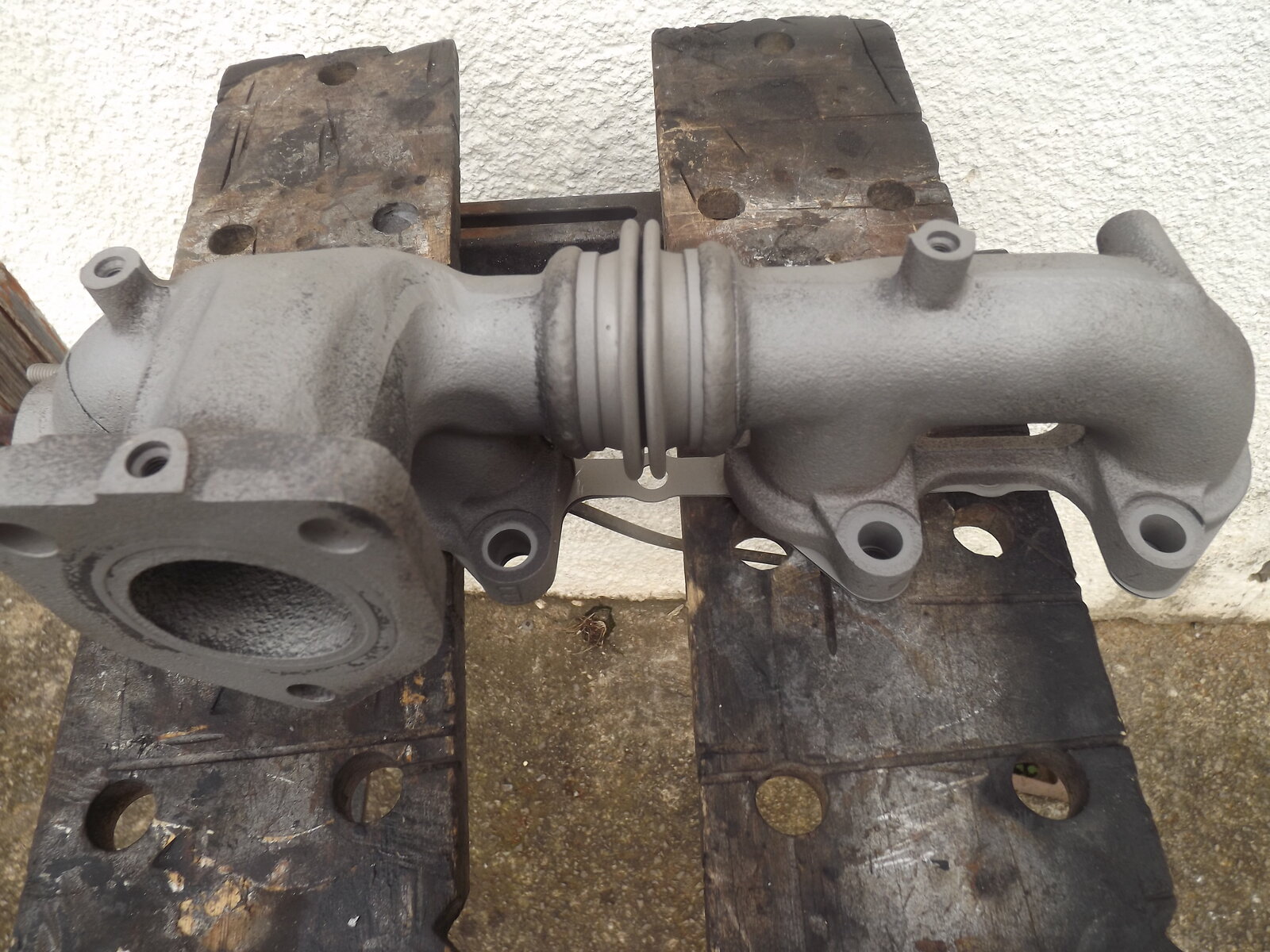

    Shot blasted
    coyx 001.JPG

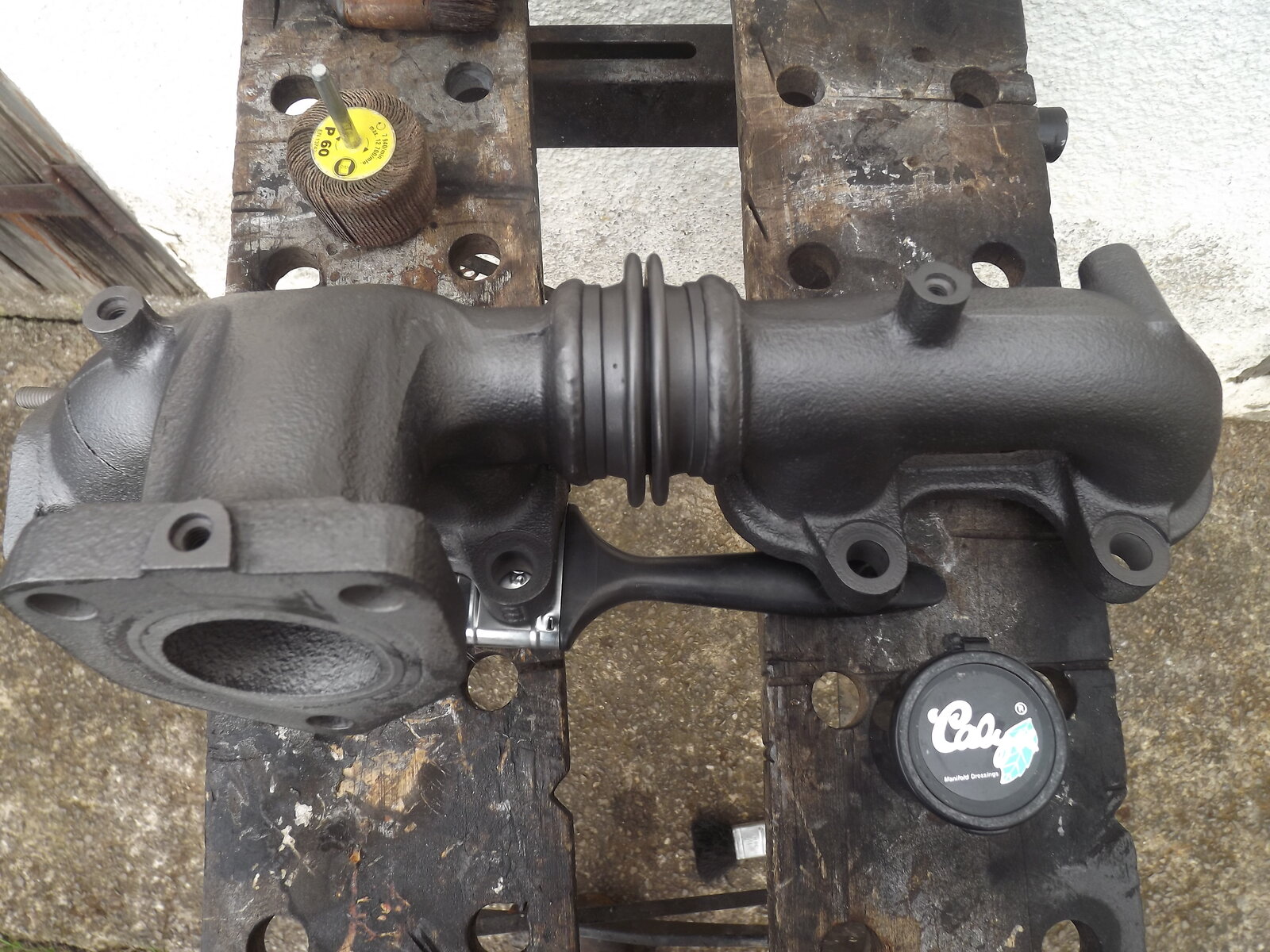

    Coated with Calyx
    coyx 003.JPG

    It will be interesting to see how it lasts .

  17. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    11,550
    4,594
    113
    Garage:
    Map
    Lookin' good Shayne. [emoji4]

  18. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map
    Well shes whistling happily and nothings blown up , fell off , leaked or screamed ............ yet :pray:

  19. Sag

    Sag Well-Known Member

    756
    77
    48
    Map
    Always a good sign,looks better than new buddy.

  20. Shayne

    Shayne Well-Known Member Guru

    11,616
    3,756
    113
    Map
    Need a gasket for the turbo oil feed pipe on the engine side 50 quid for the pipework and 2 gaskets from RT of which i will use only one gasket or shall i phone Simon :think:

    There's my tip for anyone replacing the turbo - I managed without removing the exhaust dump/down pipe but it was a pita trying to line it up with the oil feed whilst trying to keep the gasket in place (the gasket i'm talking about will be obvious if you do it) it eventually dawned on me that i could remove the offending studs from the turbo sit everything where it should be then just slip the gasket in and replace the studs . Unfortunately i didn't work this out before i had upset the gasket i now need to replace :icon-rolleyes:
