UK Supplied Alternator Adapter?

Roger

Well-Known Member
Supporter
Joined
Feb 2, 2011
Messages
246
Country Flag
uk
The alternator is showing signs of needing replacement (again! mud, water and rotating electric triangle of love).

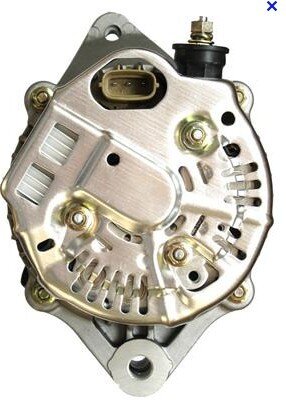

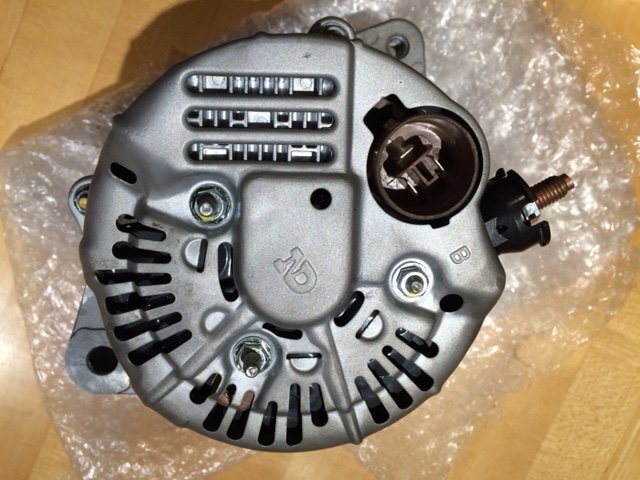

I have the older style round plug >92 but the later alternators are £16 cheaper and can be found in bigger amps....

Does anybody know of a uk supplier for these:


http://www.ebay.co.uk/itm/111608072953?_trksid=p2060353.m1438.l2649&ssPageName=STRK:MEBIDX:IT

Or (if someone can confirm the wiring diagram for me?) I could rewire straight to an oval plug but not sure which one it is:

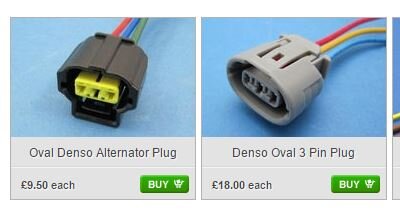

Although to compare the two I would guess the right one at £18?

And in so doing give yourself a bit more lead to play with. They really didn't use any more cable on these than they needed.

Thanks gents - agree with cable length its "just enough".

Plug ordered.

Does anybody have a wiring diagram so I get the pins the right way around?

Thanks gents - agree with cable length its "just enough".

Plug ordered.

Does anybody have a wiring diagram so I get the pins the right way around?

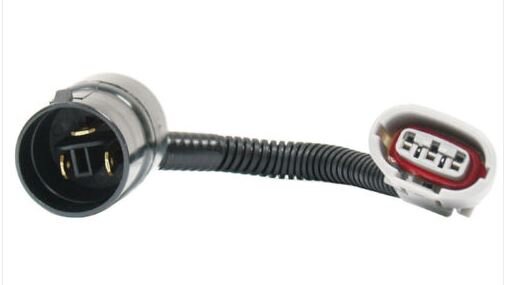

Is this any good Roger?

regards

Dave

Don't like the adverts?  Click here to remove them
Hi Dave,

That would be perfect if it were for the round and oval plugs:

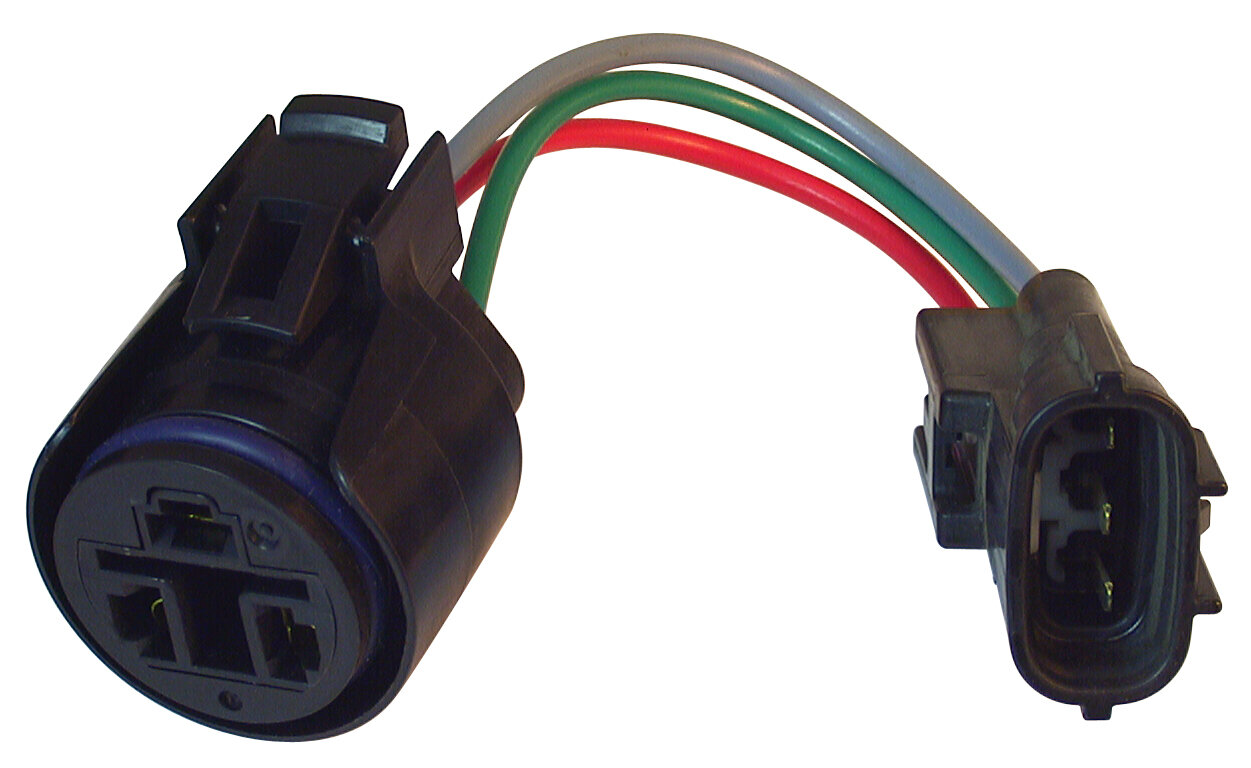

I found this picture of an adapter which is a layman's way of working it out, having a wiring diagram would give me peace of mind.

Alternator wiring.jpg

Ive just read your reply to my 100 series question - do the 100 series have these 4 pin square then? Im going to order one and try it now - cheers for that.
