Light bar wiring

warrenpfo

Well-Known Member
Joined
Jul 21, 2010
Messages
2,895
So here is my fag packet diagram of what I have currently.


I am running an on-off-on carling switch with a perm live and ground (from the aux battery). The switch has 2 live "outs" (1+ & 2+), as you can see 1+ runs to the relay which is wired directly to the battery and then onto the light bar. So far I am able to use the switch to turn the light bar on permanently even if the ignition is turned off which is the way i want it.

Next i want to know how to use the other switched out (2+) to enable the light bar to only come on when the lights are switch onto brights BUT to not turn on if the switch is off and the light are switched onto brights.

Any ideas.

Last edited:

warrenpfo

Well-Known Member
Joined
Jul 21, 2010
Messages
2,895
I have worked it out but am going to have to use another Relay and was hoping to just use the one.


TonyP

Super Moderator
Supporter
Joined
Feb 25, 2010
Messages
3,349
Country Flag
uk
Light Circuit.jpg

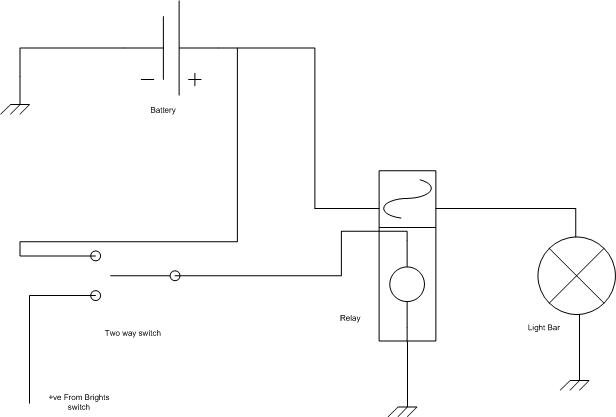

You could also do it with two switches... not ideal either. In the above just add another switch inline from the brights circuit. That's how I did it with Lil'Blue

{Edit} Well at least that's how I think I did it....

Last edited:

Jon Wildsmith

Super Moderator
Supporter
Guru
Joined
Feb 24, 2010
Messages
6,759
Garage
Country Flag
england
As Tony has shown above, flip your use of the switch so you have a common output and 2 inputs to choose from. That's how I wired the extra lights on mine.


warrenpfo

Well-Known Member
Joined
Jul 21, 2010
Messages
2,895
Here is my thinking.

My questions are:

Is the live feed from the head light when switched on able to also power the light bar and would i need to upgrade the cable thickness to handle the job?
Do i need a fuse where the question mark is OR will the headlight fuse do the job?
Can i take the live feed from relay two once switched on across the the out of relay one and the to the head light or do i need two separate lives from each relay going to the light.


Jon Wildsmith

Super Moderator
Supporter
Guru
Joined
Feb 24, 2010
Messages
6,759
Garage
Country Flag
england
You only need 1 relay. The + from the headlight circuit doesn't go to the relay direct, it goes to the switch. You wire the switch so you are choosing which power source to send to the relay coil, either constant or from the headlight. Your switch is an on/off/on or off/on/on type? One of the switch terminals will be common to both 'on' positions and goes to the relay coil +. Connect one of the switch 'on' terminals to fused constant power and the other to the headlight +.
