Sooo I've got into the 40 section quite a while back! Lol!

Much the same way as I got into a 60 many years ago! Once you get the bug then it will never leave!

Yesterday afternoon I decided to take a better look at it..

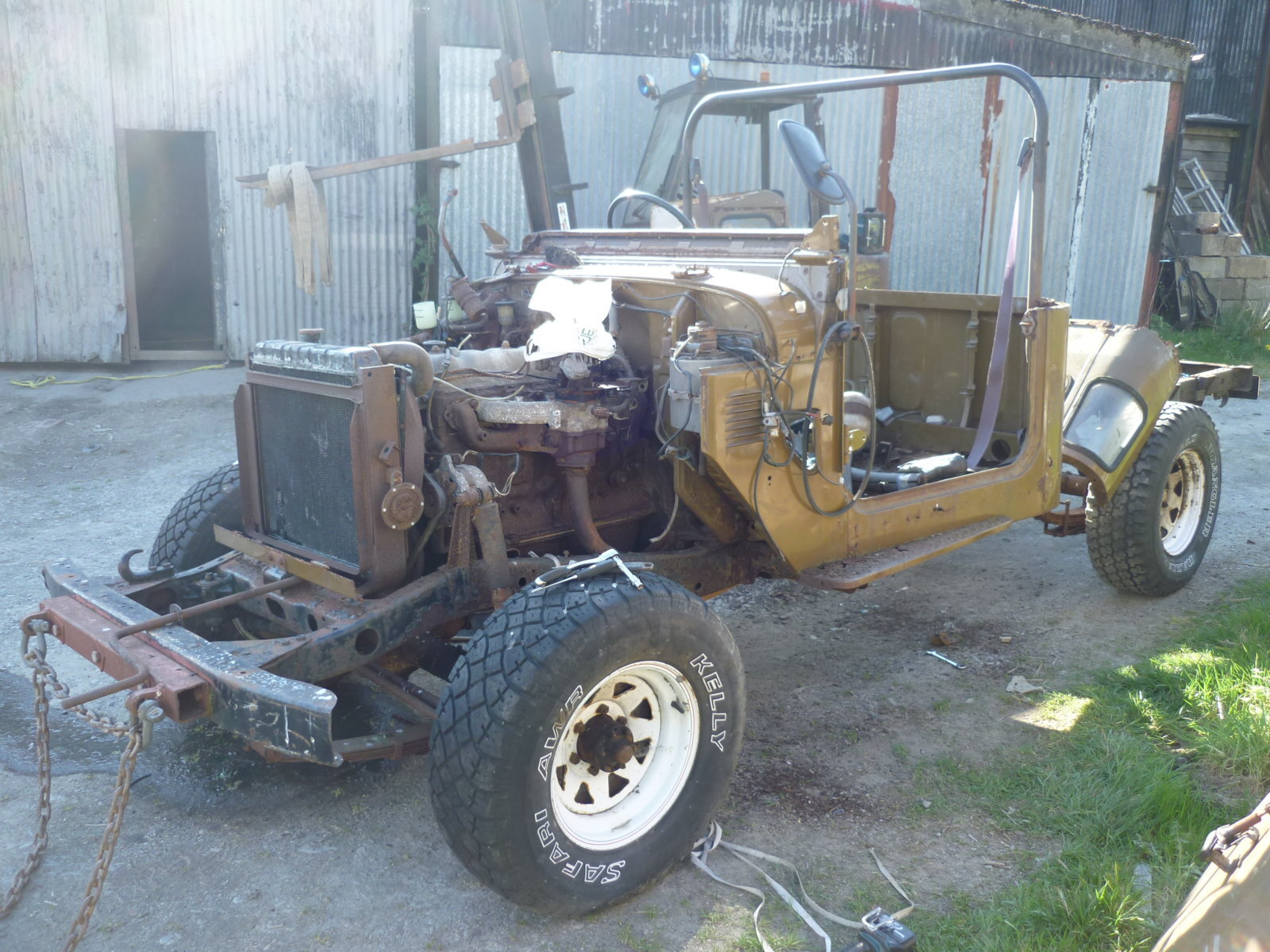

As you can tell.... I've gone to the bottom of the pile! This was a barn find that Karl found and I'm real glad to have bought it.


It's very rusty.. but it's the only 45 that I've come across which is the good point and considering how rare they are.... it's a good starting point!!

So this morning I got into action and took the time to disassemble constructively in action as not to break anything!

Managed to lift the cab off and it didn't fold in half!! @Shayne I was saying last night that the 45 was one of the bigger cruisers... they're longer than they look! :thumbup: I'm diggin the wella wheels theyr'e well in with the age of the truck! :thumbup:

It's been an interesting day seeing how these old cruisers were built back then... have seen some things that the younger cruisers have in a sense but are more revised and better lets say. But to have the opportunity to attempt to rebuild this "oldie" is lets say a challenge! Where there's a challenge there's a great opportunity!

The saving grace is that I have another cab in the same colour which is in cut pieces that will make it possible to make a good cab out of 2 essentially... looking forward to the lock down to end so I can collect and make a start on the cab!

Enginewise I want it to have a 1hdt and the early auto non electric box...

The road is long but I want to make this happen!!! :thumbup:
