Keys in ignition chime/ding

guruvetim

Well-Known Member
Joined
Oct 7, 2017
Messages
215
Country Flag
zimbabwe
Anyone know of a way to stop the chime when you open the drivers door with the keys in the ignition? I'm also wondering if there is a way to stop the easy entry steering from going up and down. Can I set It where I want it and pull a fuse?


AndyCook

Well-Known Member
Joined
Apr 16, 2010
Messages
3,757
Garage
Country Flag
scotland
On my 2013 Hilux I stopped the chime when leaving keys in ignition and opening. The door. It was by disconnecting a wire connected to key barrel.
try Googling it, might be same on 100 series


guruvetim

Well-Known Member
Joined
Oct 7, 2017
Messages
215
Country Flag
zimbabwe

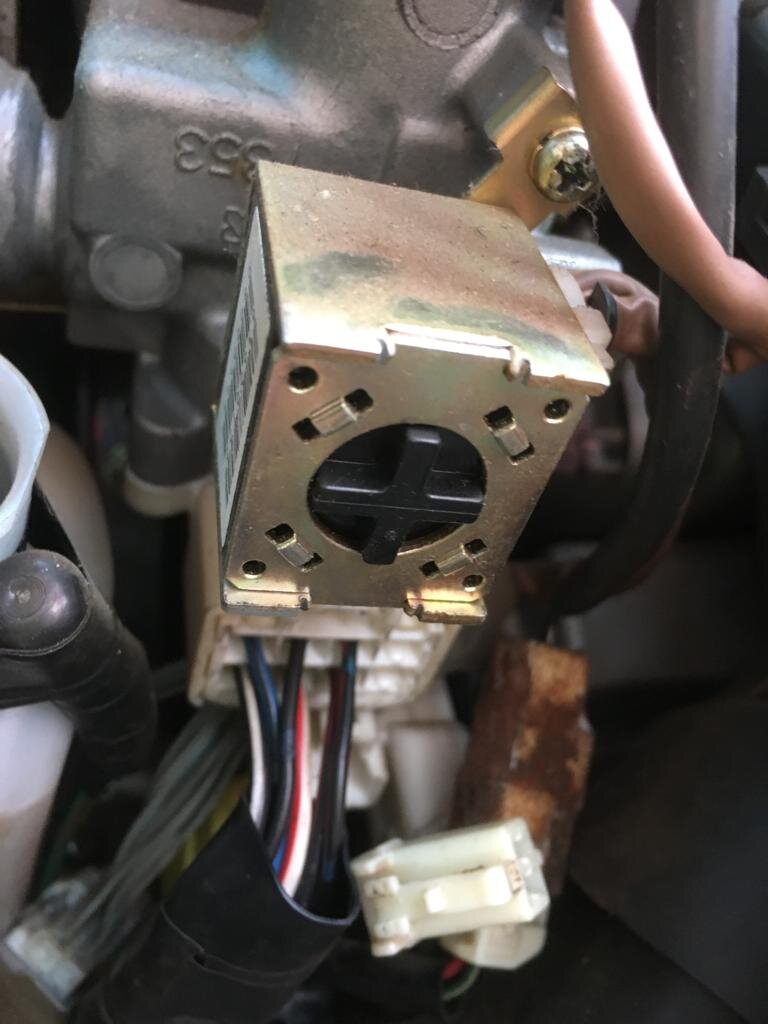

It would appear that this is the offending article.. time to start digging


Attachments

  • PXL_20211227_034340013.jpg
    383.4 KB · Views: 13

guruvetim

Well-Known Member
Joined
Oct 7, 2017
Messages
215
Country Flag
zimbabwe
Cheers Andy

I'll have a look at that before I pull the dash apart


Gr8Yota

Well-Known Member
Joined
May 11, 2017
Messages
492
Country Flag
scotland
I’d like to do the same on my 78. I did this on my FJ, it was as simple as pulling a connector apart behind the lower dash trim Once I figured out which connector.


uHu

Well-Known Member
Supporter
Joined
Mar 7, 2010
Messages
2,199
Country Flag
norway
... I'm also wondering if there is a way to stop the easy entry steering from going up and down. Can I set It where I want it and pull a fuse?
TechStream is the answer.
And maybe even the "key in ign. beep" has a switch in there as well - can't remember.

Don't like the adverts?  Click here to remove them

Shayne

Well-Known Member
Guru
Joined
Feb 2, 2013
Messages
15,480
I can't remember what chimed in the mrs truck but its chimes no more since i found the mini speaker and cut a wire .


guruvetim

Well-Known Member
Joined
Oct 7, 2017
Messages
215
Country Flag
zimbabwe
AndyCook you're a star..

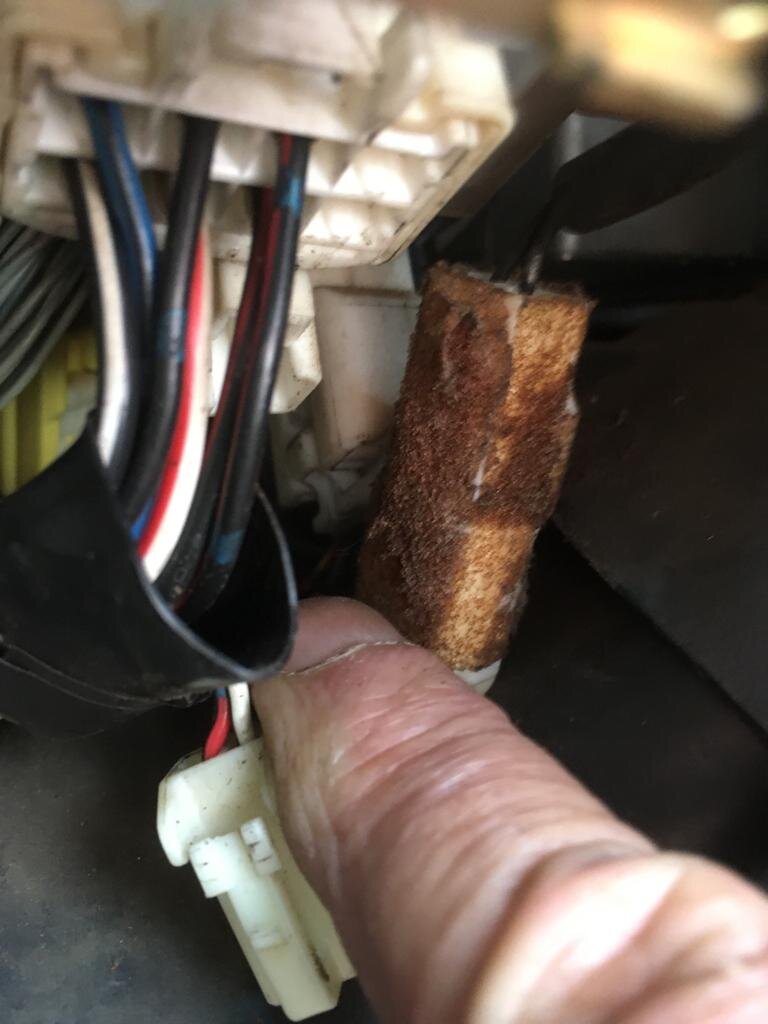

Unplugged this small white plug from the bottom of the ignition barrel and no more annoying chime. Lights on chime still works and best of all the "easy entry" steering up and down is also disabled but you can still adjust it with the joystick on the side of the column. Win win win I'll update if I find any down sides but so far so good.


Attachments

  • 2d8c38ec-08fd-447d-9eb3-3471bc493098.jpg
    62.6 KB · Views: 6
  • d8e12c12-09d9-474e-b2b9-cb92dd96f20b.jpg
    67.1 KB · Views: 7
