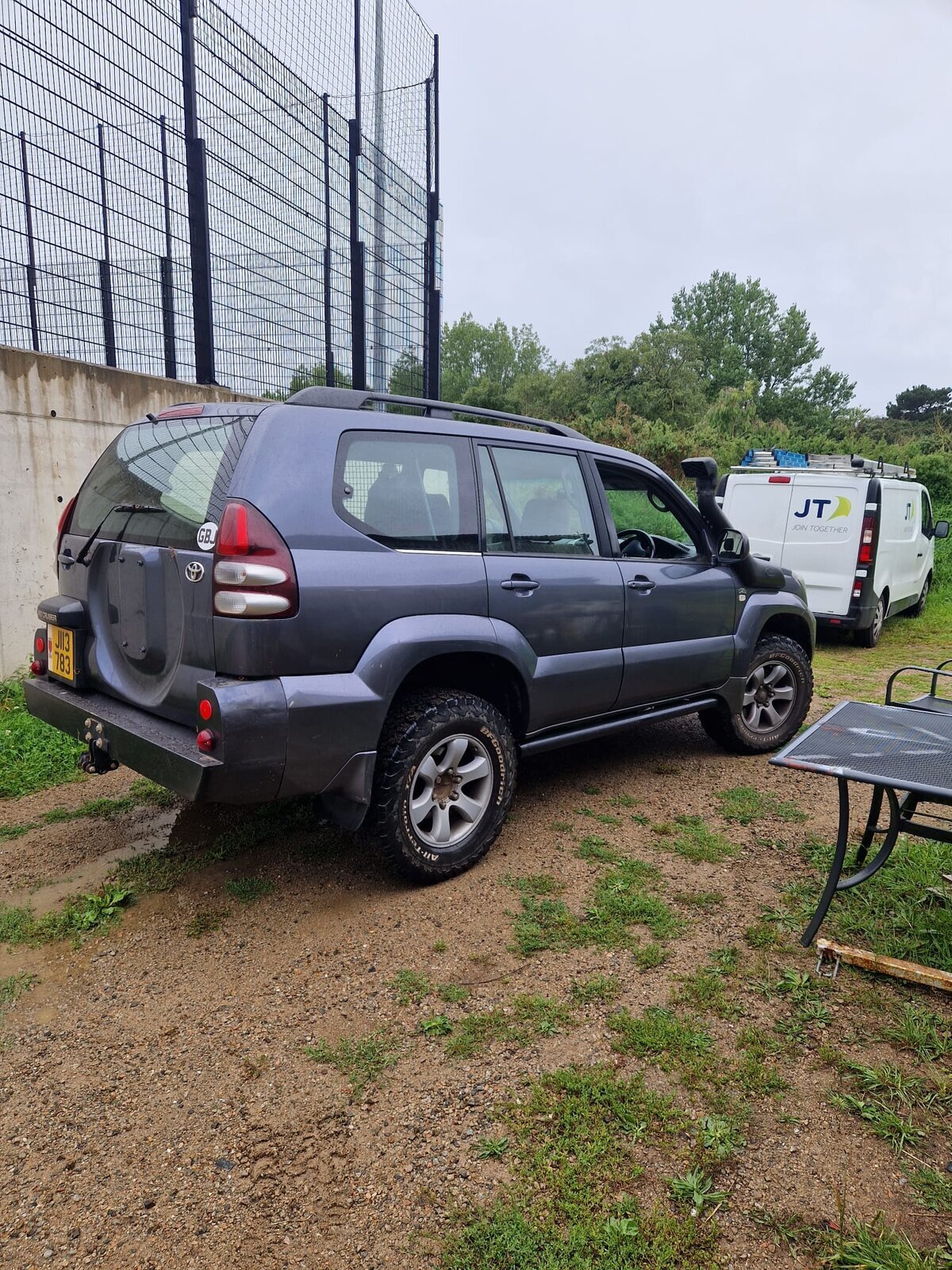

new homemade rock sliders

[toolsplus]

When I find the fabrication pictures I'll post them



[Tractionman]

Very nice job mate - and easy on the eye too, even looks like it could have left the factory like it.
I look forward to the fabrication pics, and how/ what you attached them to.
Well done !



[toolsplus]

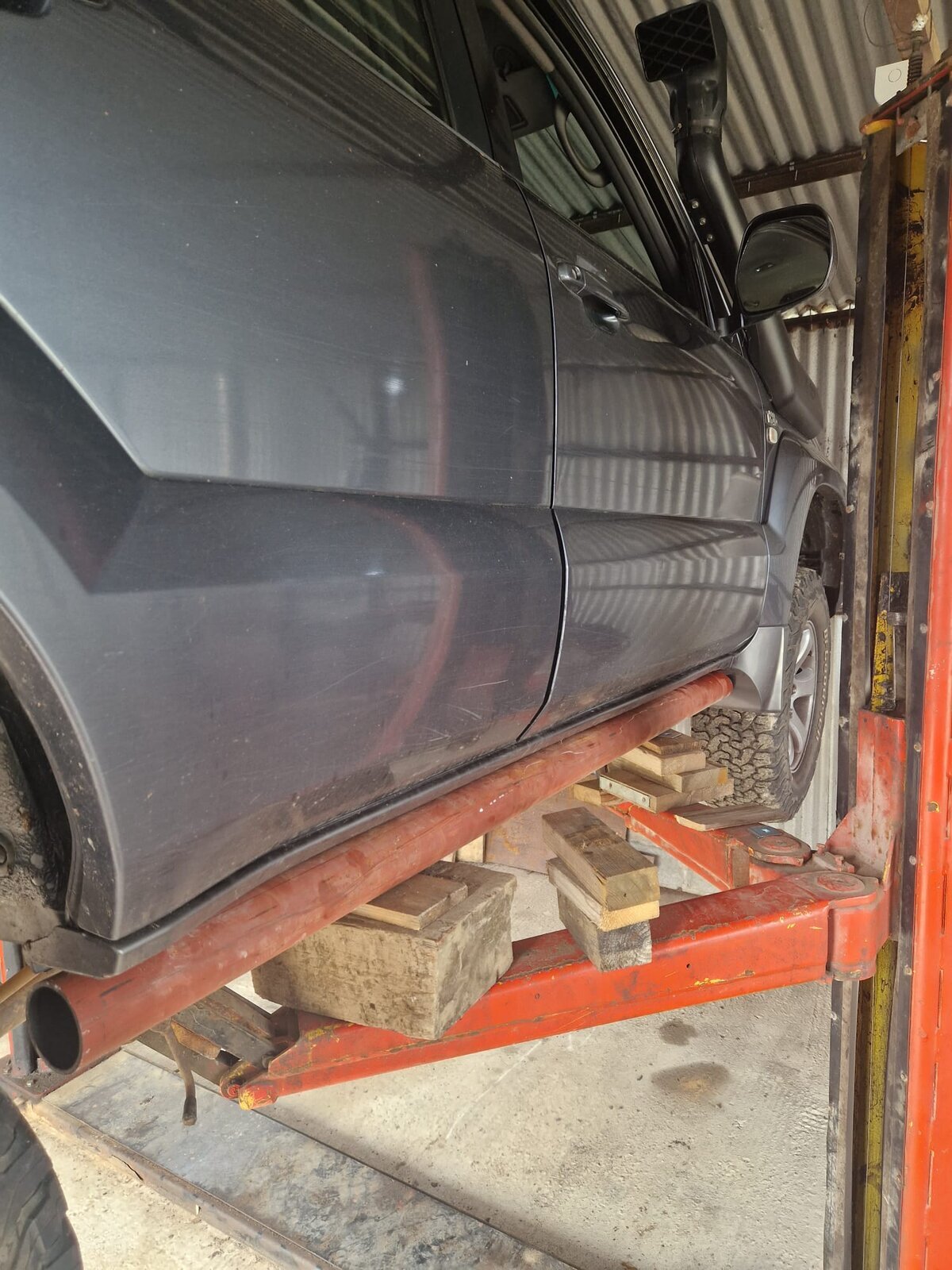

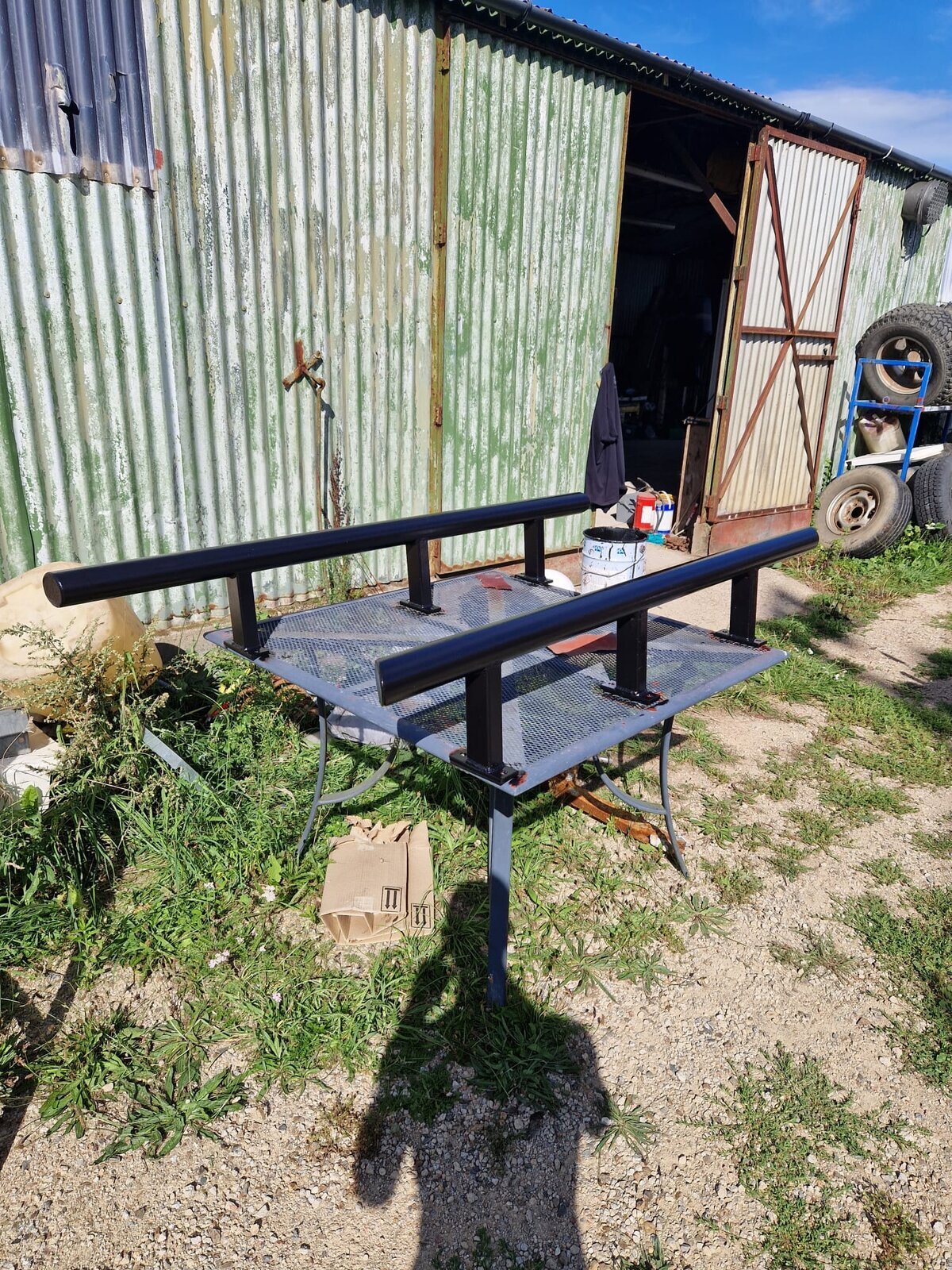

work in progress



[Tractionman]

Clever but simple idea, mate - not overcomplicated !
Scaffold poles used and fabricated brackets bolted direct through chassis ?



[toolsplus]

Clever but simple idea, mate - not overcomplicated !
Scaffold poles used and fabricated brackets bolted direct through chassis ?

4''diam. gas pipe 5mm thick.
there's a mounting bracket welded onto the chassis
annual service soon,I'll take some pics when the car's on the lift
cheers



[Tractionman]

That size makes more sense than my thoughts of piddly scaffolding.
A job well thought out !



[toolsplus]

3 brackets welded onto the chassis



[toolsplus]

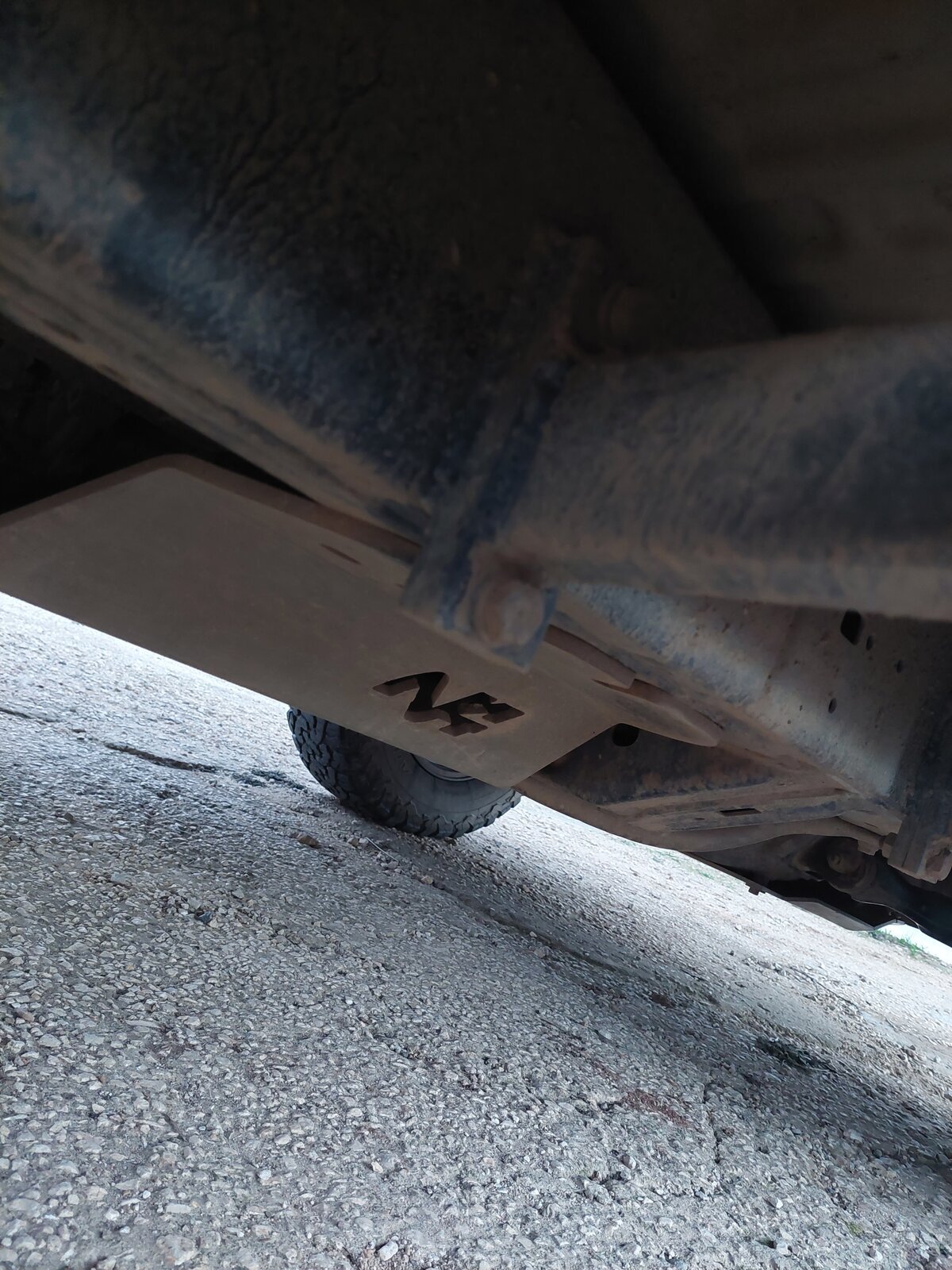

2nd pic's upside down



[Tractionman]

Thanks for the extra pics mate. Good job !!
