Familiar heavy haul tractor…

StarCruiser May 12, 2019

  1. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    11,208
    4,415
    113
    Garage:
    Map
    Some interesting loads and a novel way to keep weight down with the Space shuttle.


  2. Charlie

    Charlie Well-Known Member I am in indonesia

    757
    137
    63
    Map
    I use to work on Liebherr T282 Haul Trucks, I’m still working for them but back to excavators.

    StarCruiser likes this.
  3. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    11,208
    4,415
    113
    Garage:
    Map
    They’re electric transmission aren’t they Charlie?

  4. Charlie

    Charlie Well-Known Member I am in indonesia

    757
    137
    63
    Map
    Electric A/C dive, the engine (MTU 20V 4000 series) drives an alternator..... similar to a locomotive.

    StarCruiser likes this.
  5. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    11,208
    4,415
    113
    Garage:
    Map
    About 2000 hp if I remember correctly?
    I’m surprised they are AC but so much now is AC with electronic Controls becoming more widespread. No brushes to wear out. Controllable torque curves and probably far simpler control without series parallel, field weakening and so forth. Just a VSD and a dedicated computer/PLC I would imagine.

    Charlie likes this.
  6. Charlie

    Charlie Well-Known Member I am in indonesia

    757
    137
    63
    Map

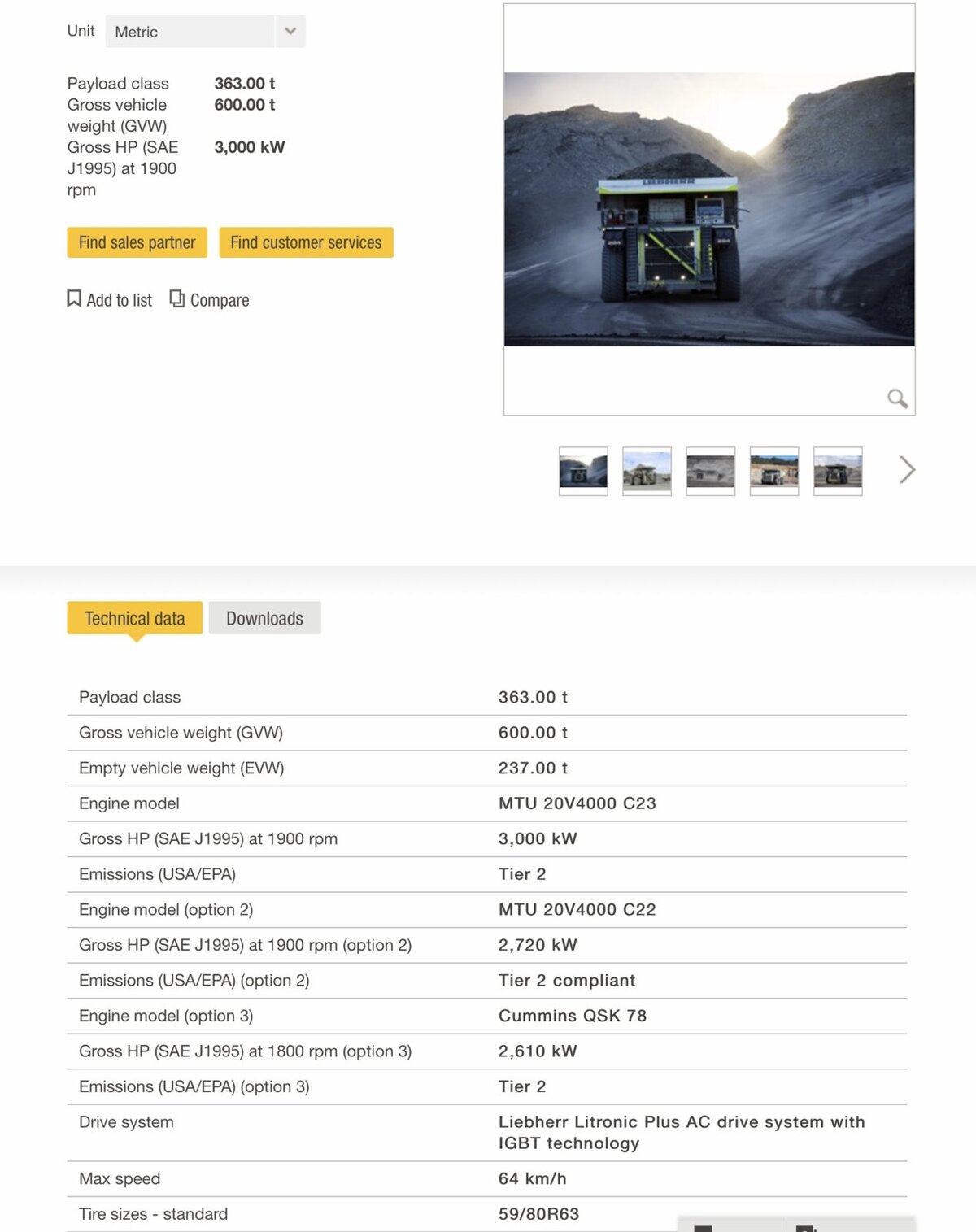

    0A82B312-E592-4AD6-99A1-47F363588AD2.jpeg Older truck used DC drive, but AC requires much less maintenance.

    StarCruiser likes this.
  7. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    11,208
    4,415
    113
    Garage:
    Map
    IGBTs have virtually taken over the small VSD market. I had no idea they would go up to this sort of size though. It doesn’t seem that long ago the drives were all thyristors but then it was the early 90s I was building Controls with them :whistle: Things have moved on dramatically. Trains are now mostly AC. Even those with DC supplies. Conversely, long range power grid transmission lines are now using HVDC.

    I appear to have jacked my own thread. :lol:

    clivehorridge and Charlie like this.
  8. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    11,208
    4,415
    113
    Garage:
    Map
    My reference was The Toyota Tacoma they used to haul the Space Shuttle across the bridge in order to keep the weight down. I felt strangely quite proud of it. :lol:

    clivehorridge likes this.
