1HZ 78 : looking for rpm and oil pressure gauge

TravelToy Dec 3, 2018

  1. TravelToy

    TravelToy New Member I am in belgium

    14
    2
    3
    Map
    I'd love to have an rpm gauge (tacho ?) and an oil pressure gauge.
    Anyone any idea on how to install those, if at all possible ?

    Kind regards,
    Chris

  2. Omar

    Omar New Member I am in australia

    4
    0
    1
    Map
    Hi
    I am a proud owner of Landcruiser GR71. I am also close to this upgrade, and here is my progress:


    After page B-15 from the manual. as I am after the wiring to the oil pressure sender. My car comes with light only (single wire oil signal sender), and I am replacing the cluster with one with tacho and oil pressure gauge. Everything working except the oil pressure gauge. I got the 3 wire oil pressure sender ready, I just need the wiring diagram

  3. Firewout

    Firewout Well-Known Member I am in belgium

    742
    381
    83
    Garage:
    Map
  4. Omar

    Omar New Member I am in australia

    4
    0
    1
    Map
  5. Omar

    Omar New Member I am in australia

    4
    0
    1
    Map

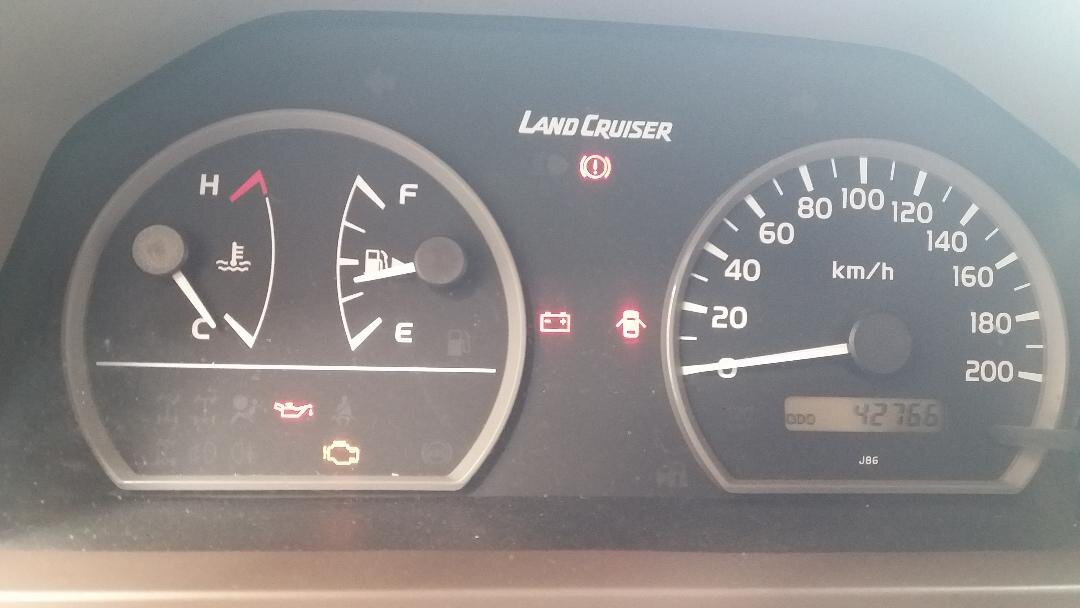

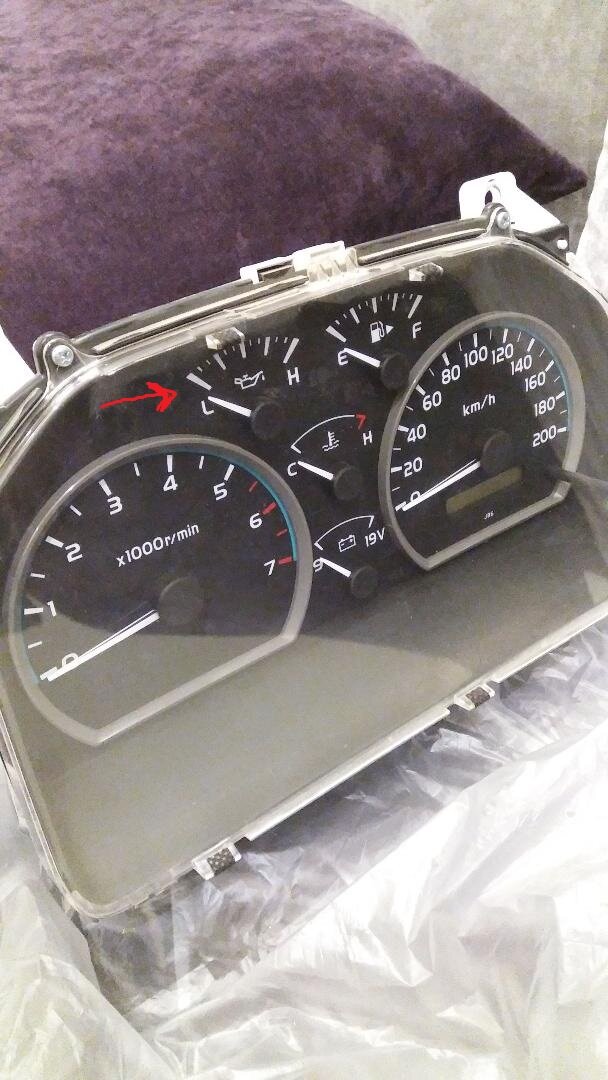

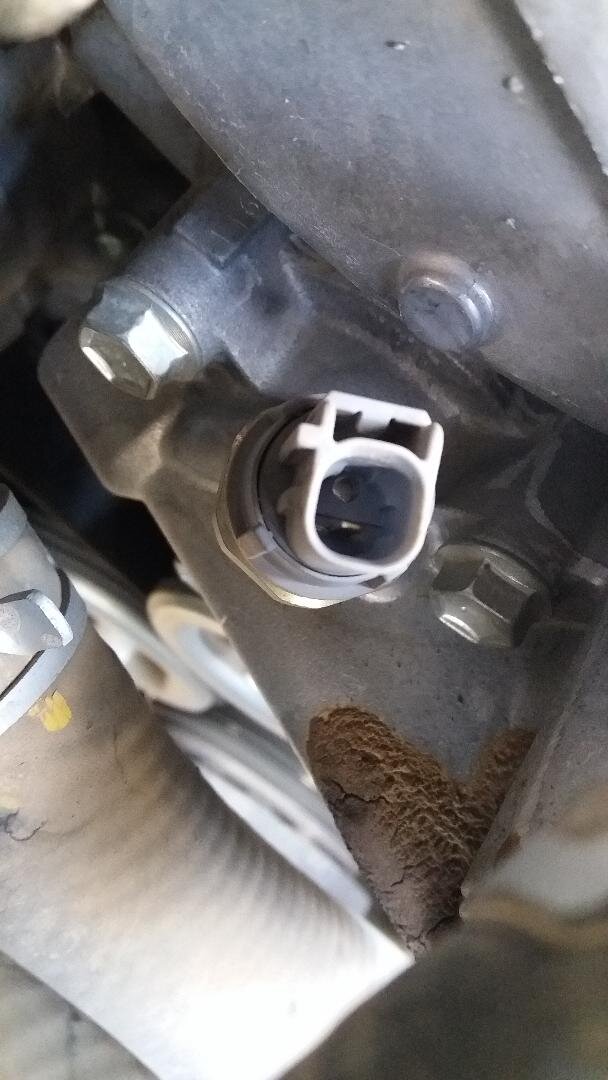

    I have added the pictures above: the old cluster does not have rpm or oi pressure gauge. The oil level is detected by only the red light via the single wire oil sensor sender in the engine bloc. The 2nd upgrade cluster has the rpm, voltage and oil pressure gauge. Now after connecting the latter, everything works except the oil gauge, so I got the original oil pressure sender (has 3 wires), and this I believe need to be hooked correctly to make the oil pressure gauge works. If anyone has the concerned wiring diagram, that would be awesome :kissingsmiling:. I guess it should be somewhere in page BE-15 manual.
