Hi mate

that looks incredible, without the body how much do you think it cost?

Giles
With engine, gearbox, E-lockers not including my labour close to 30k, chassis is galvanise and all bolts are SS, as is the 3" exhaust which is 316 stainless.


clivehorridge

Well-Known Member
Supporter
Guru
I am in romania
May 23, 2012
14,802
4,750
113
Comarnic, Romania
Garage
There's 5 years of passion in that project and it shows. Whatever the money, I would be hard pressed ever to sell it, it would be like selling one of the kids!

A beautiful job through and through. Being greedy, are there any "before & during" shots perhaps?

:clap::clap::clap:

Don't like the adverts? Remove them by becoming a supporting member.   Click here

watrob

Active Member
I am in australia
Aug 17, 2014
81
2
16
Brisbane
There's 5 years of passion in that project and it shows. Whatever the money, I would be hard pressed ever to sell it, it would be like selling one of the kids!

A beautiful job through and through. Being greedy, are there any "before & during" shots perhaps?

:clap::clap::clap:

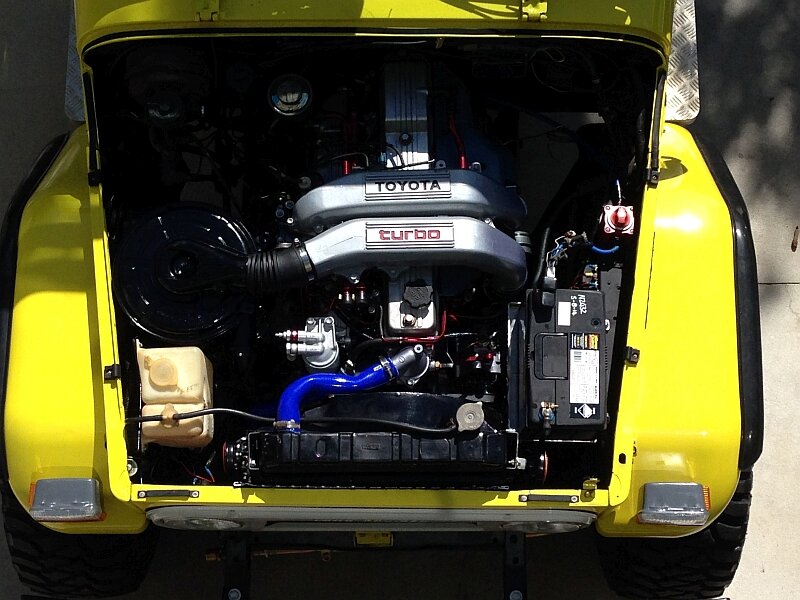

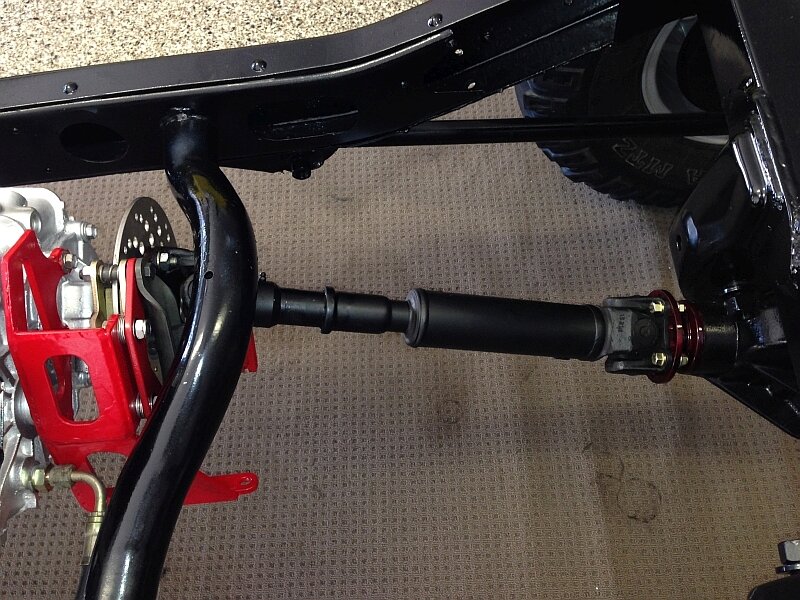

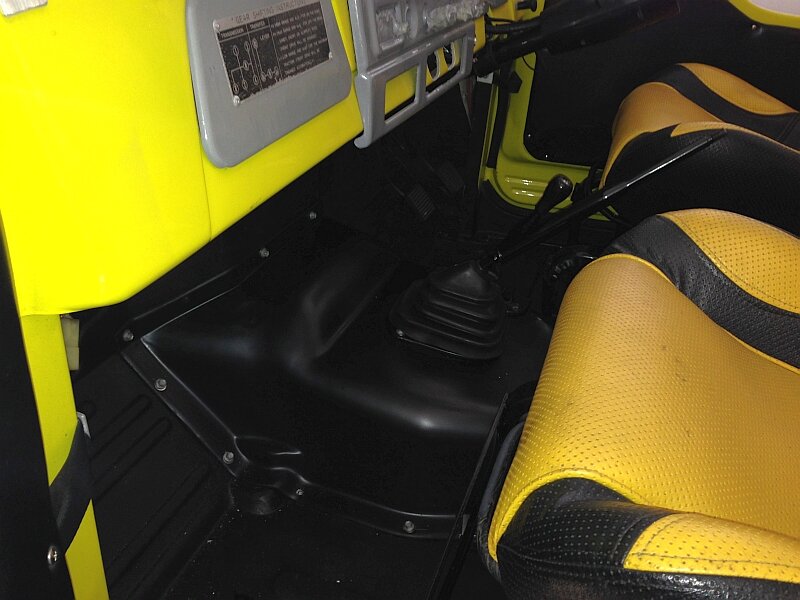

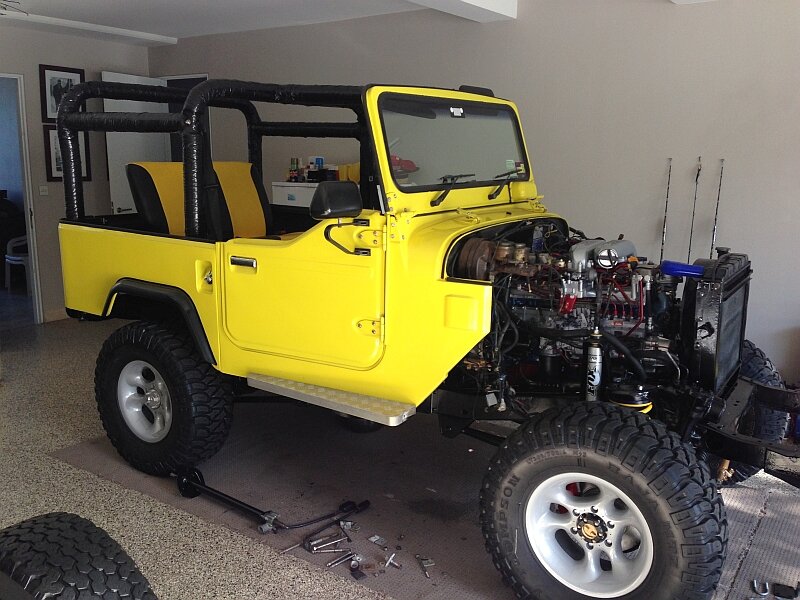

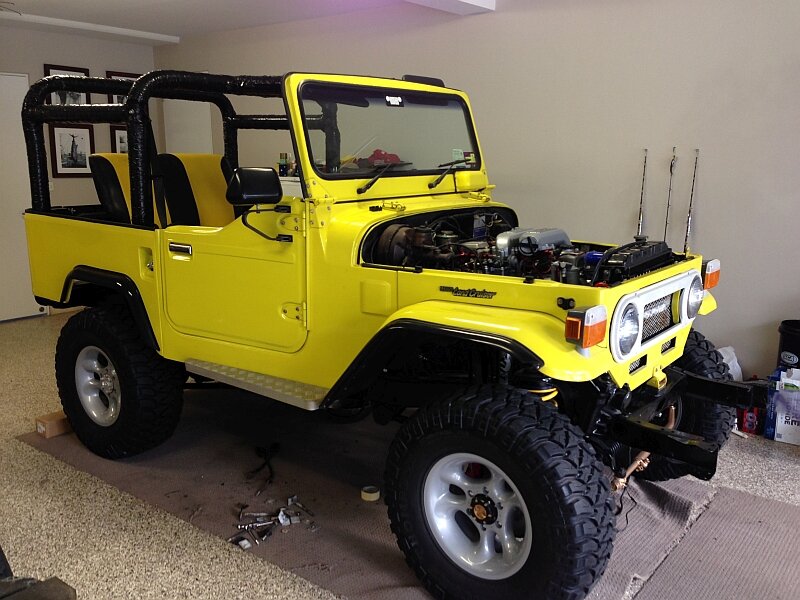

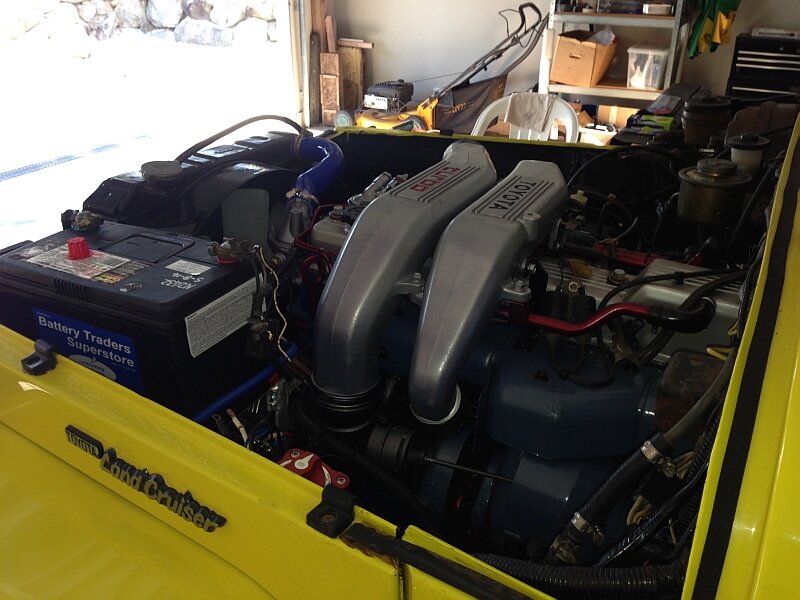

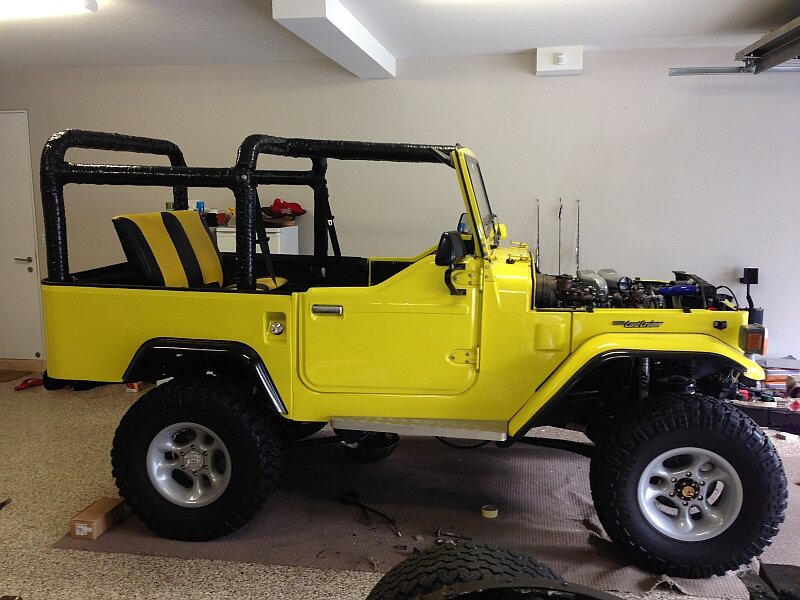

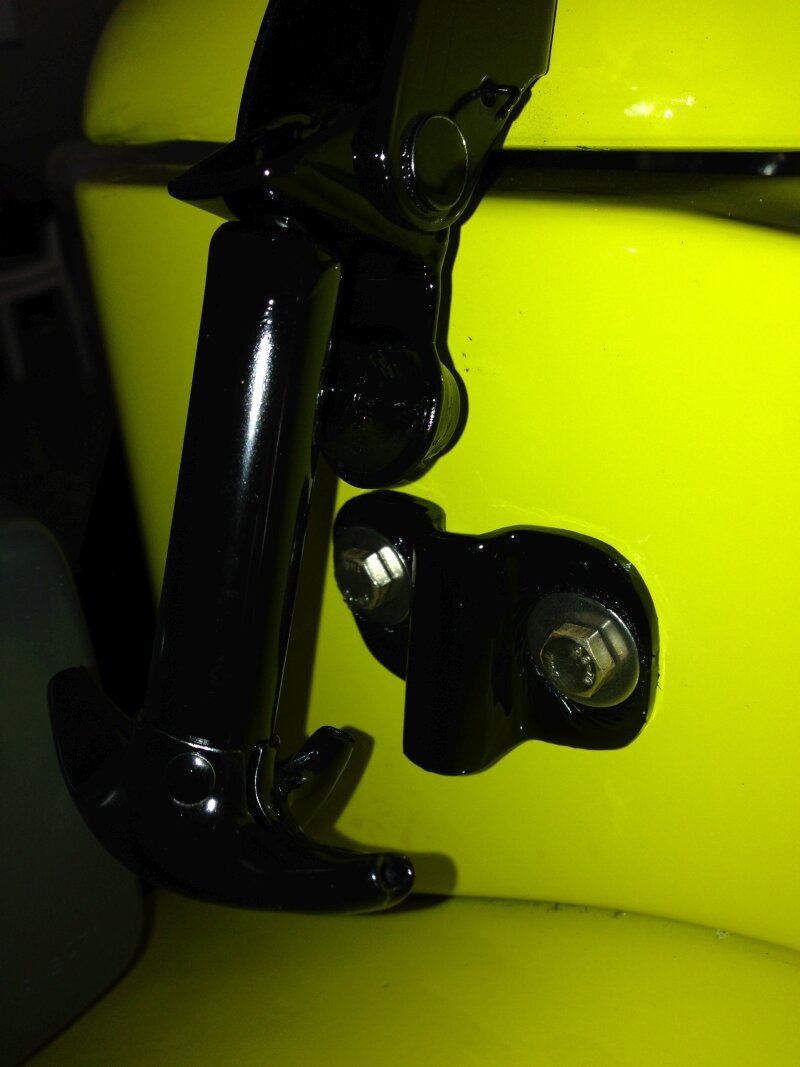

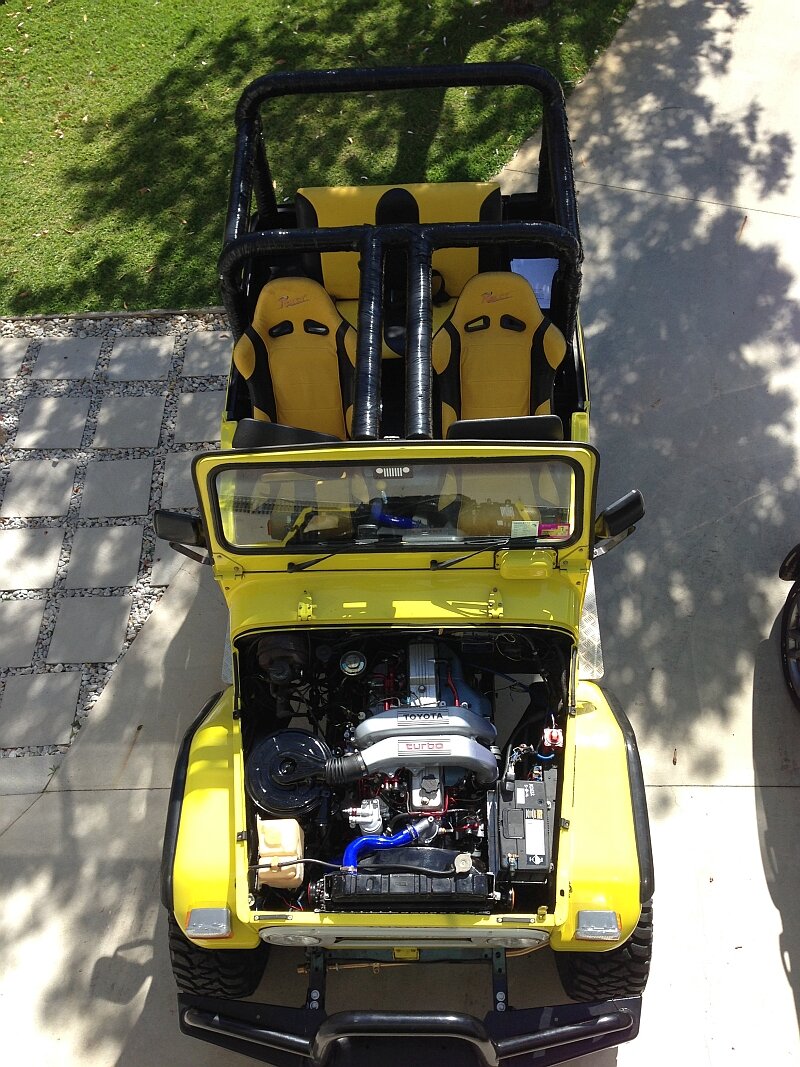

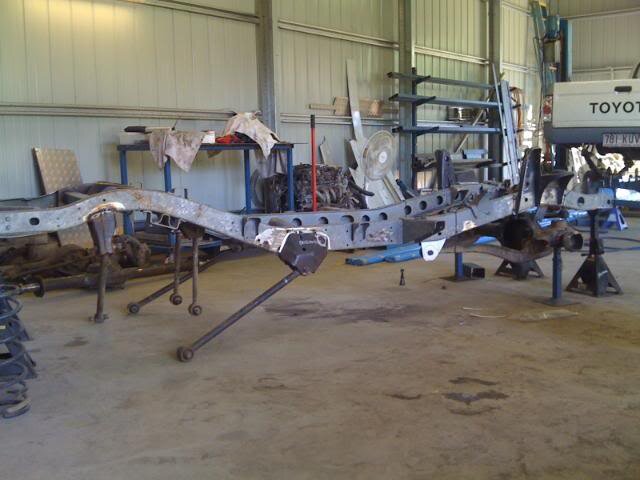

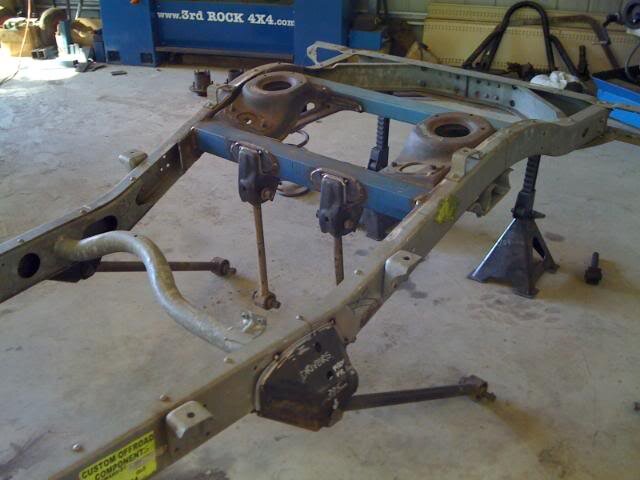

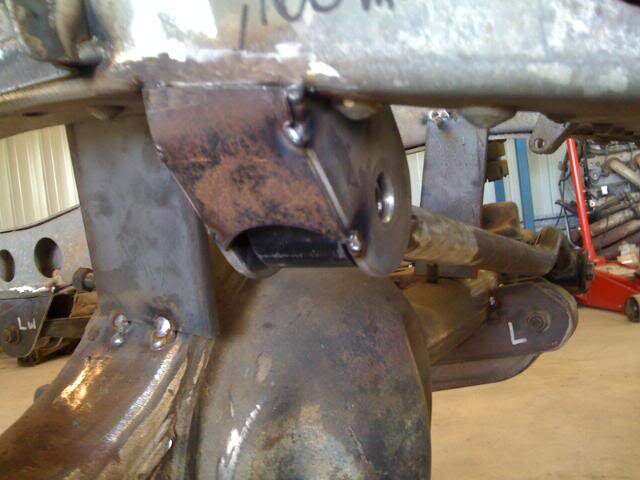

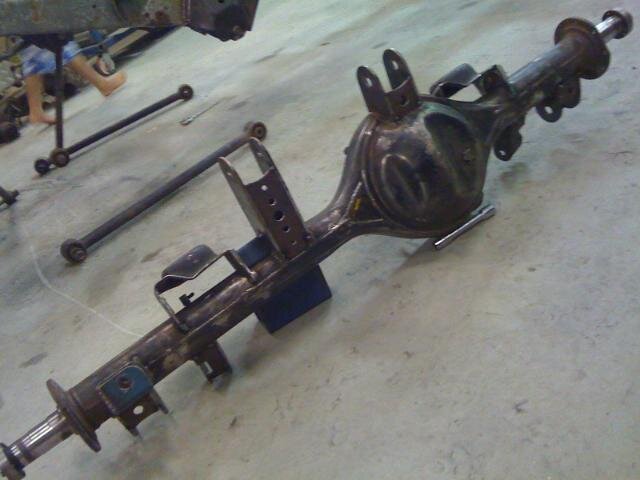

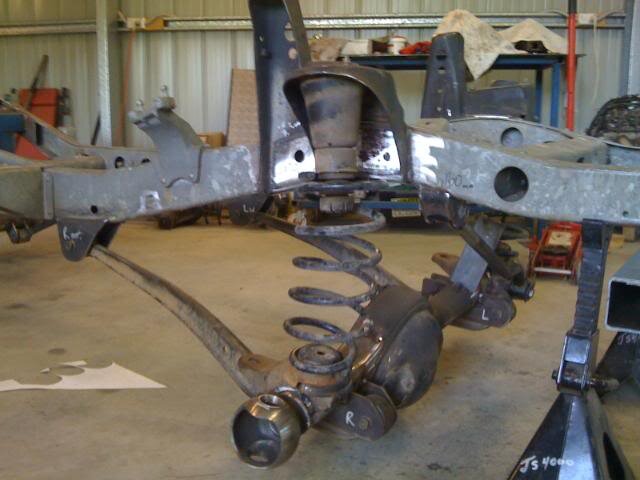

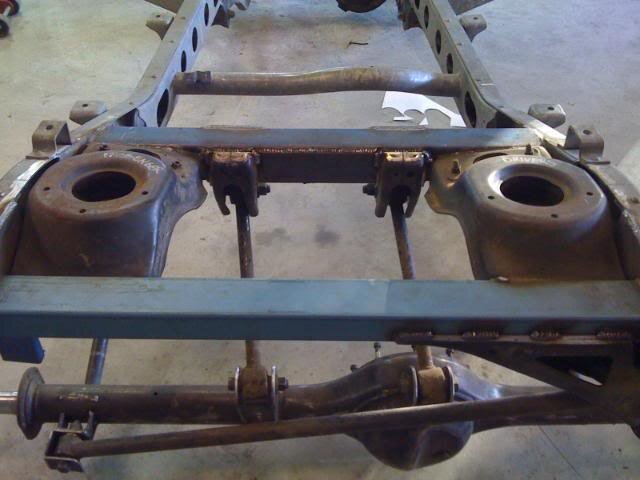

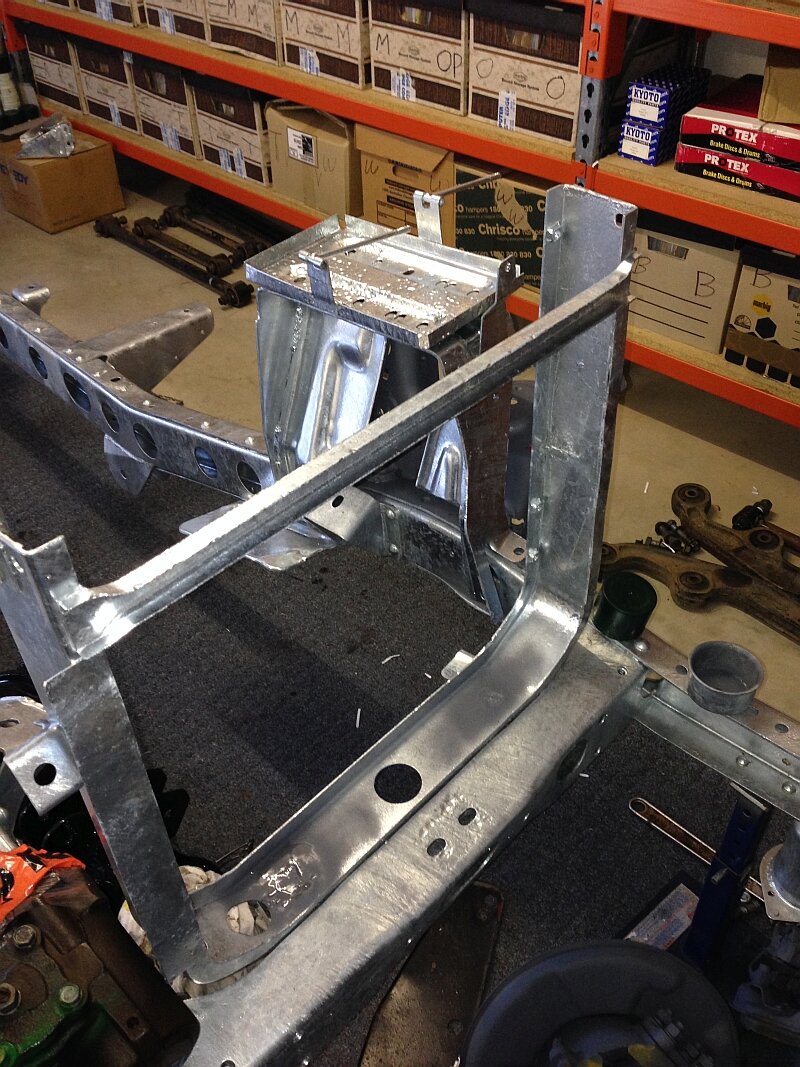

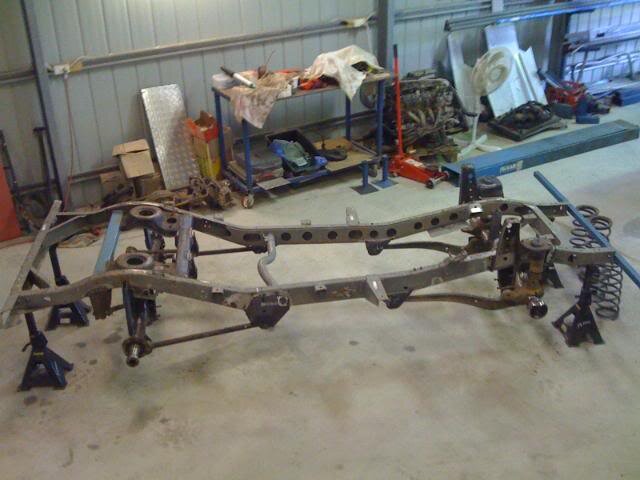

Here is the 40 chassis being built.

Gal Chassis 6a.jpg
Gal Chassis 14b.jpg
Gal Chassis 33g.jpg
Gal Chassis 39h.jpg
Gal Chassis 52j.jpg
Gal Chassis 57k.jpg
Gal Chassis 51j.jpg


Giles

Well-Known Member
I am in uk
Feb 25, 2014
201
0
36
Cardiff
Hi there

yes it looks expensive to, I have been thinking about doing the same thing for about a year but with a D4D and an aluminium body on a Hj45 , could you build another ?

Giles


watrob

Active Member
I am in australia
Aug 17, 2014
81
2
16
Brisbane
Hi there

yes it looks expensive to, I have been thinking about doing the same thing for about a year but with a D4D and an aluminium body on a Hj45 , could you build another ?

Giles
I have another one ready to go, just waiting on the 43 series fibreglass body to be built, 5 speed, 12ht diesel engine.

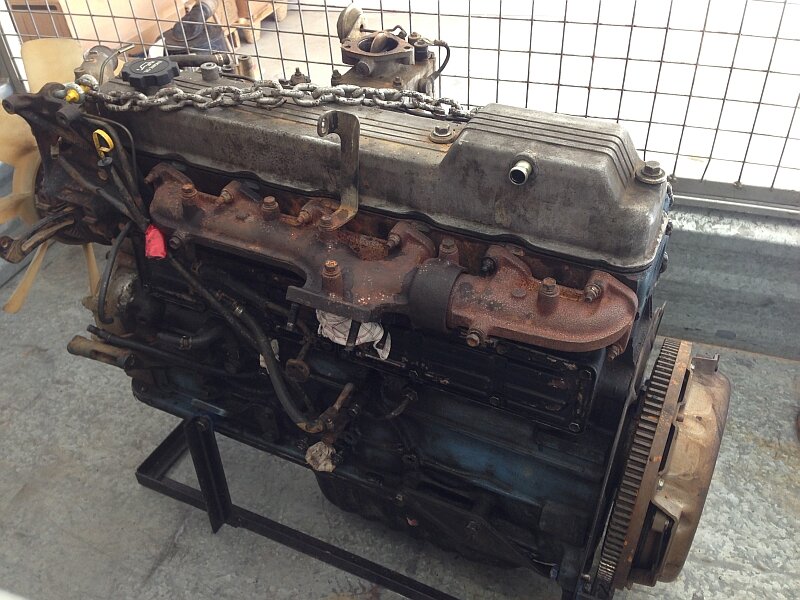

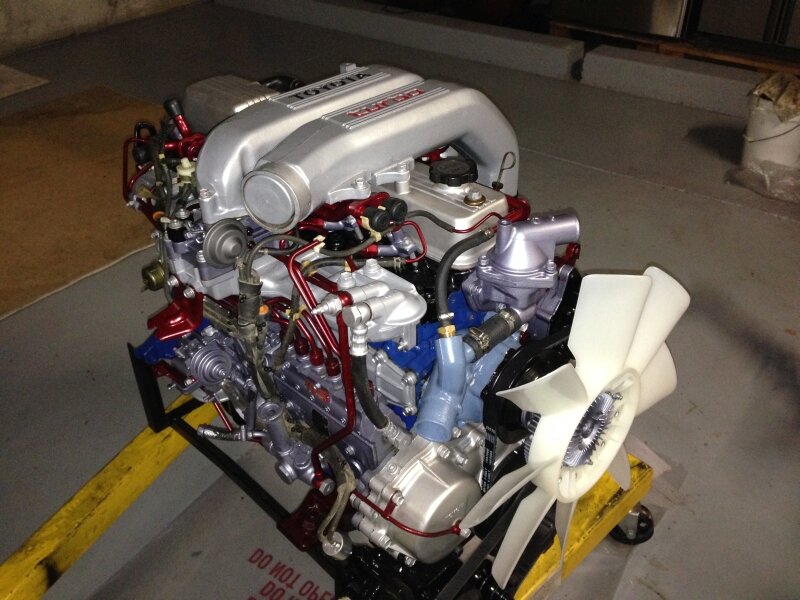

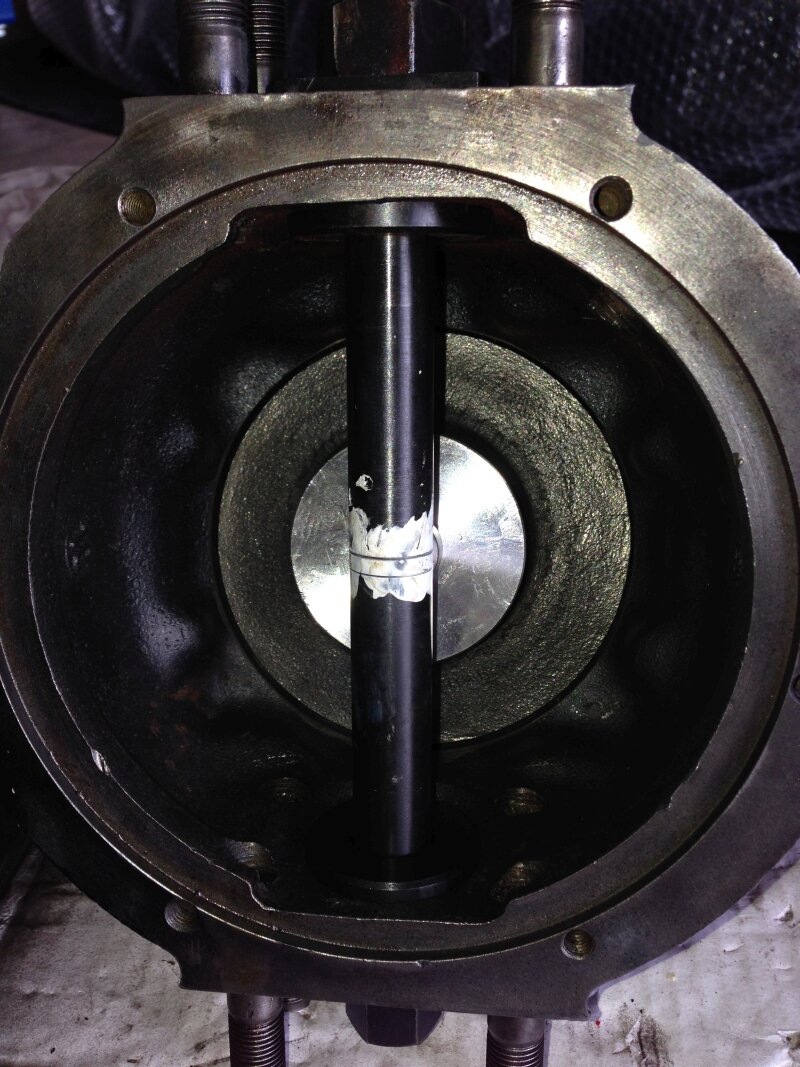

Full rebuild, pistons, head, bearing, the lot.

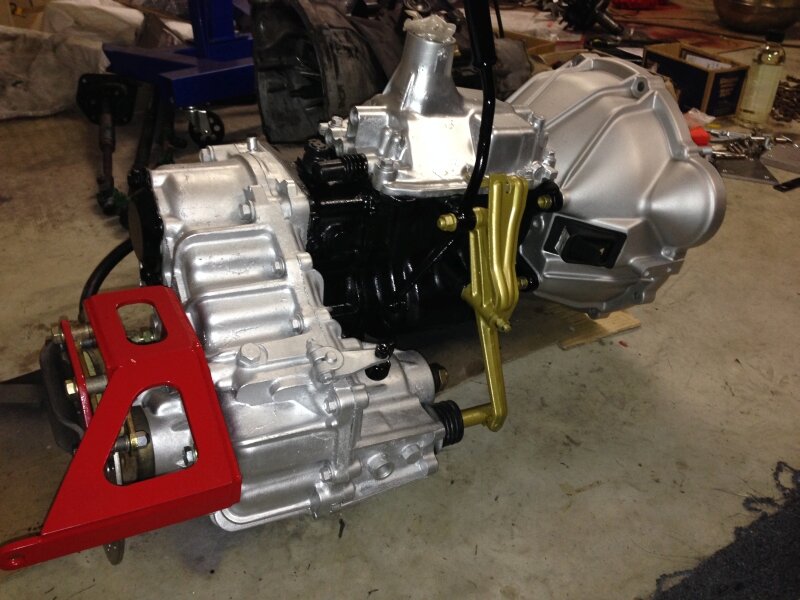

Gearbox

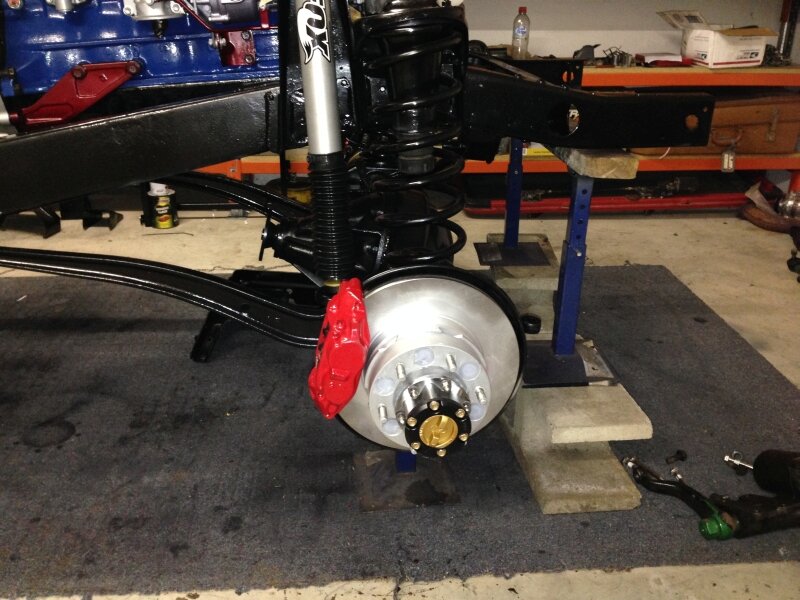

Disc Brakes all round

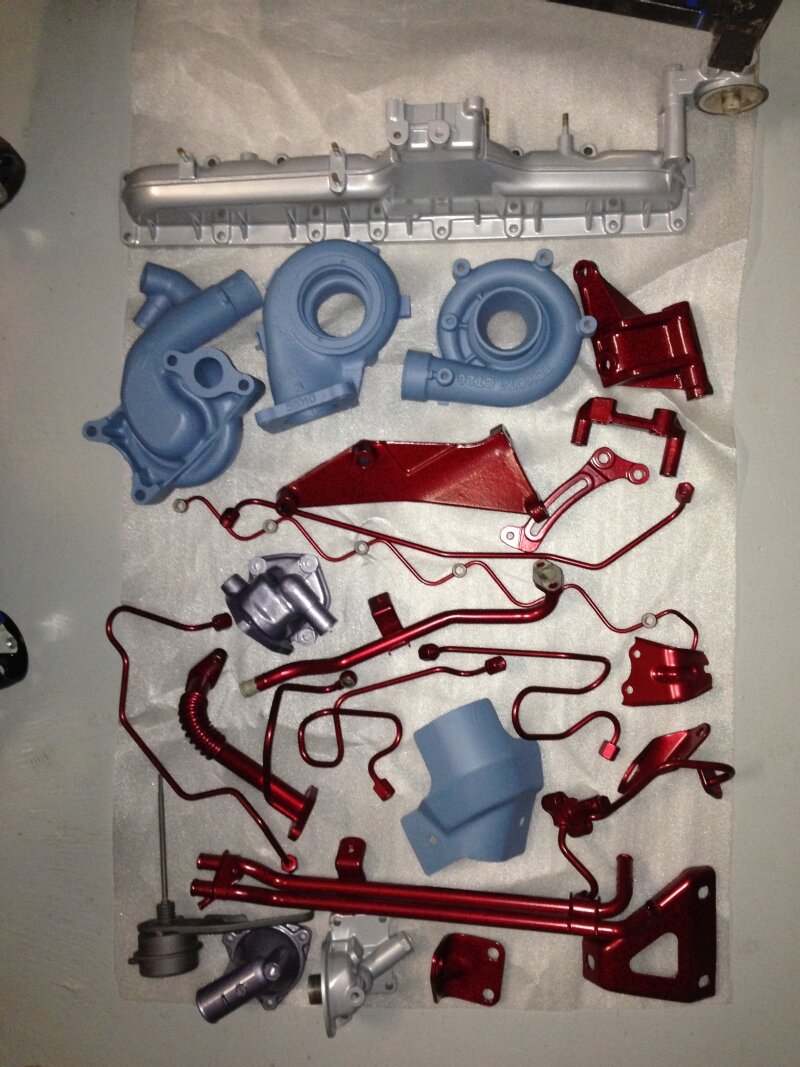

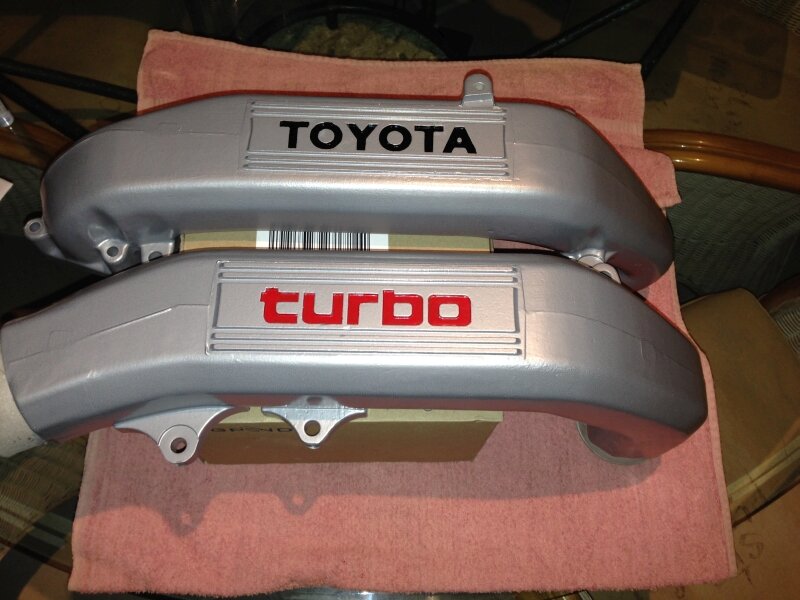

Manifold inlets


Ceramic engine parts

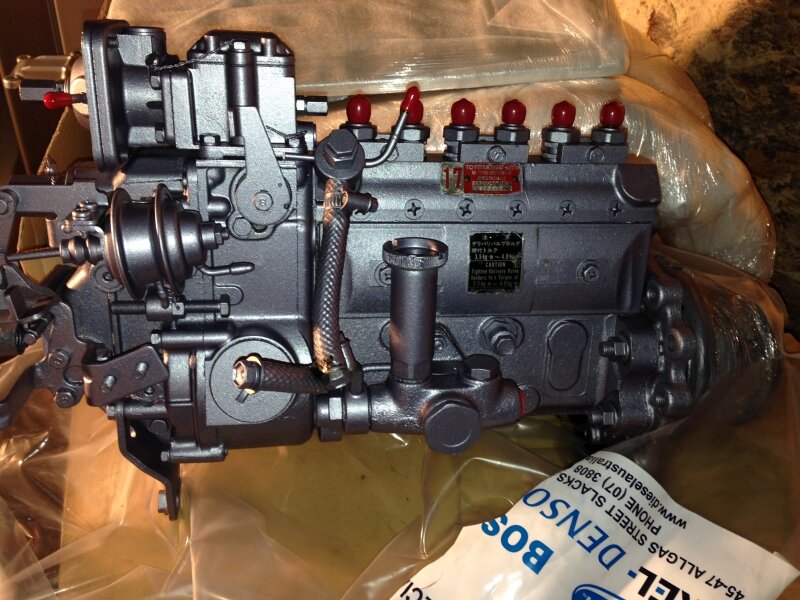

IP Pump reco


Relay alterations

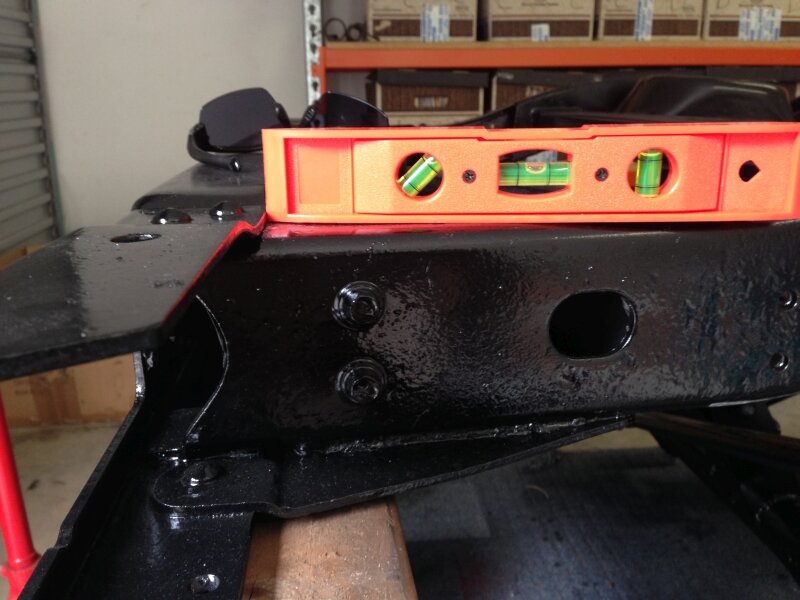

Chassis levelling

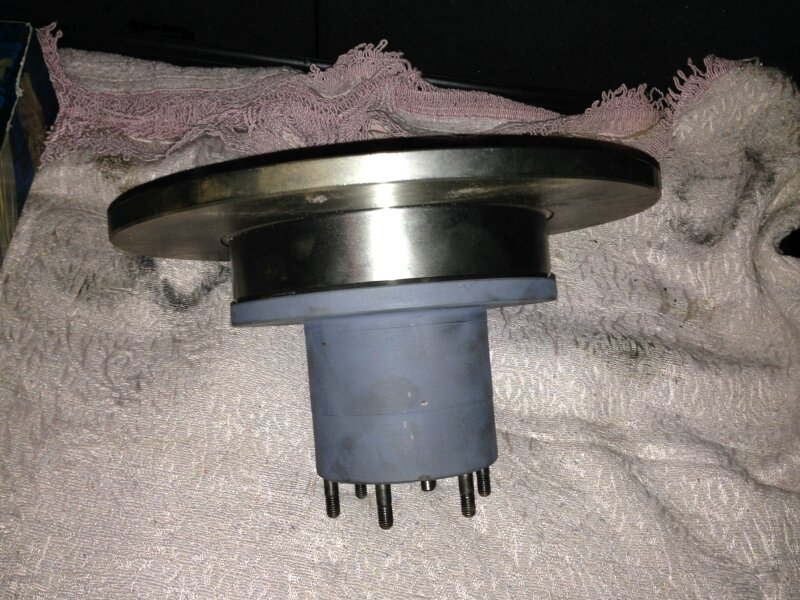

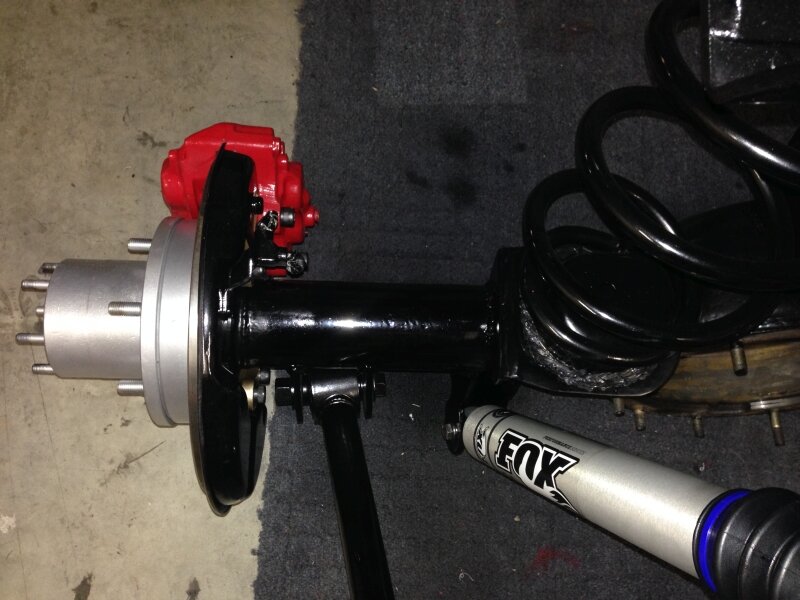

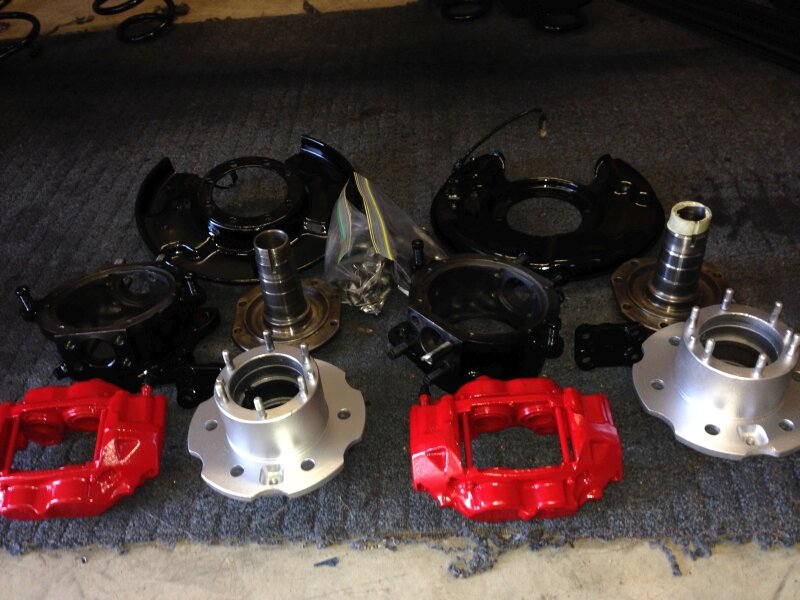

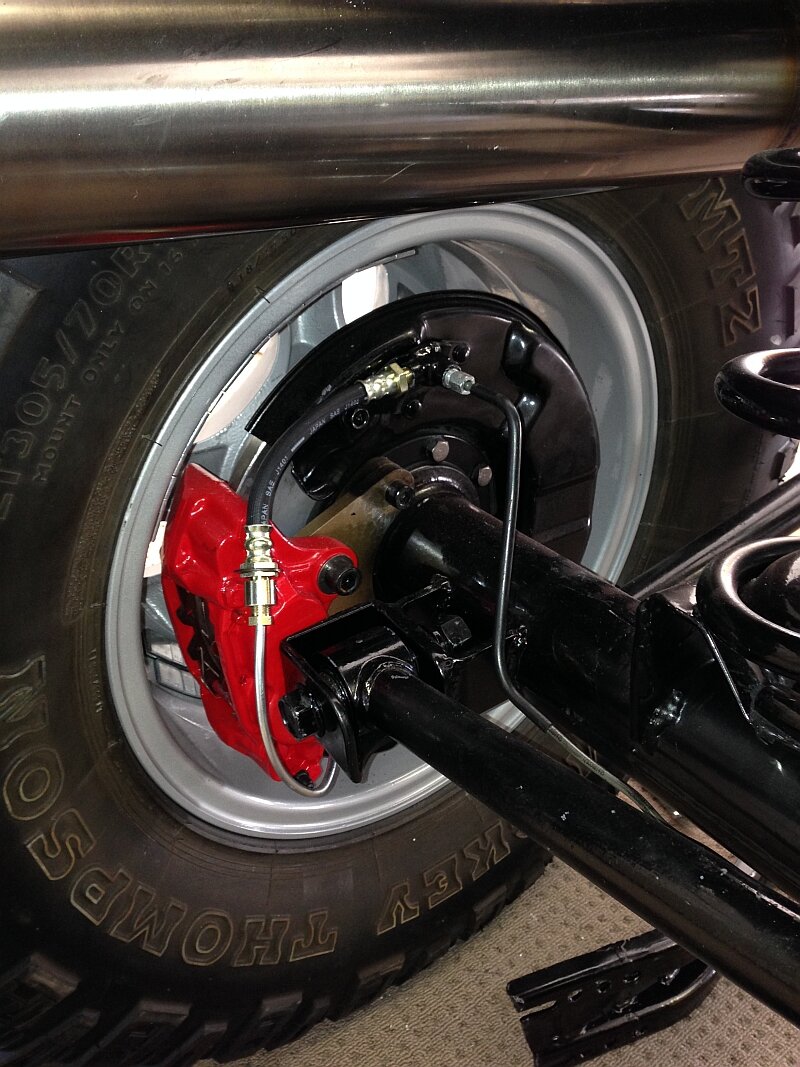

Rear hub conversion for disc brakes

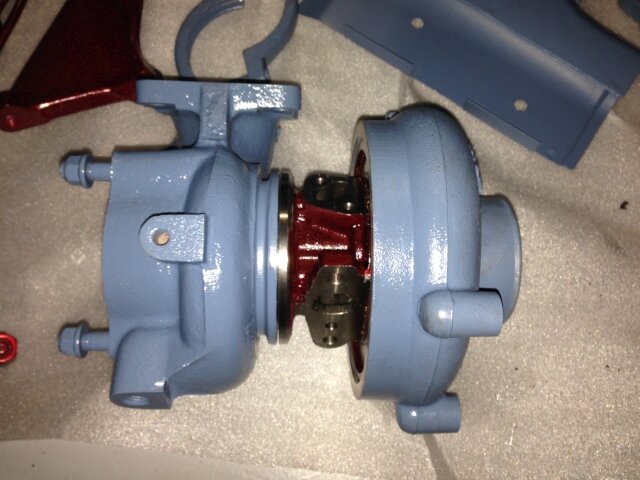

Ceramic Turbo

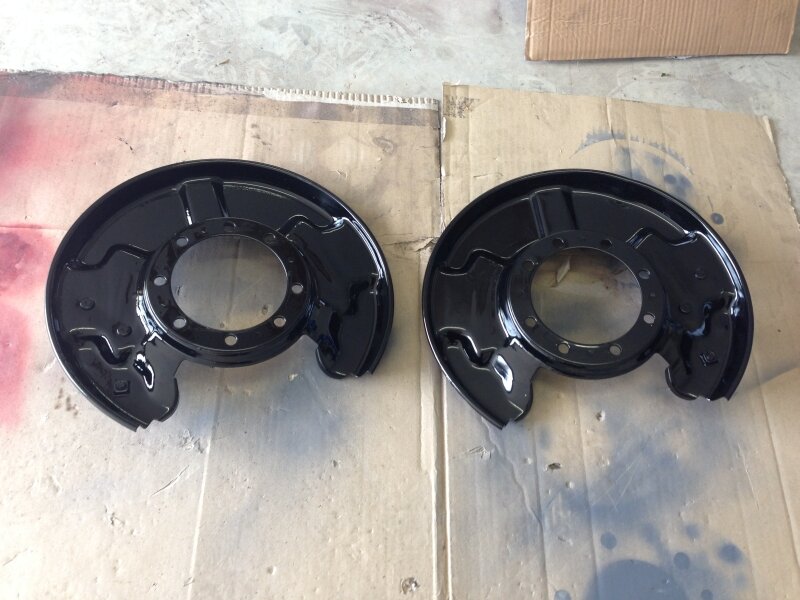

Backing plates for rear disc's

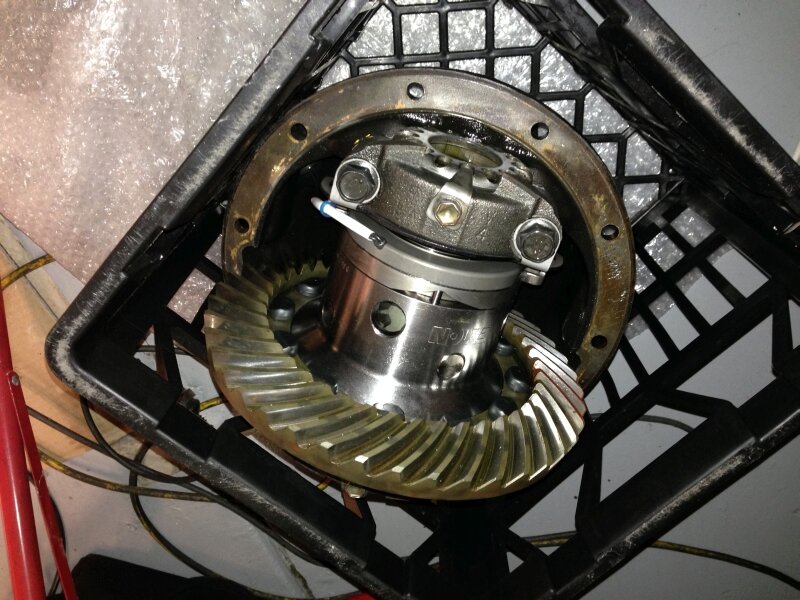

E-lockers

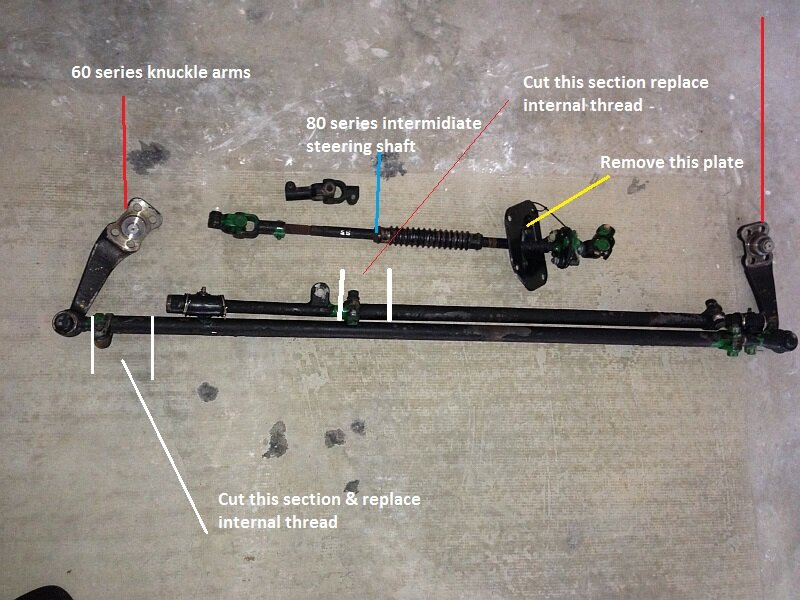

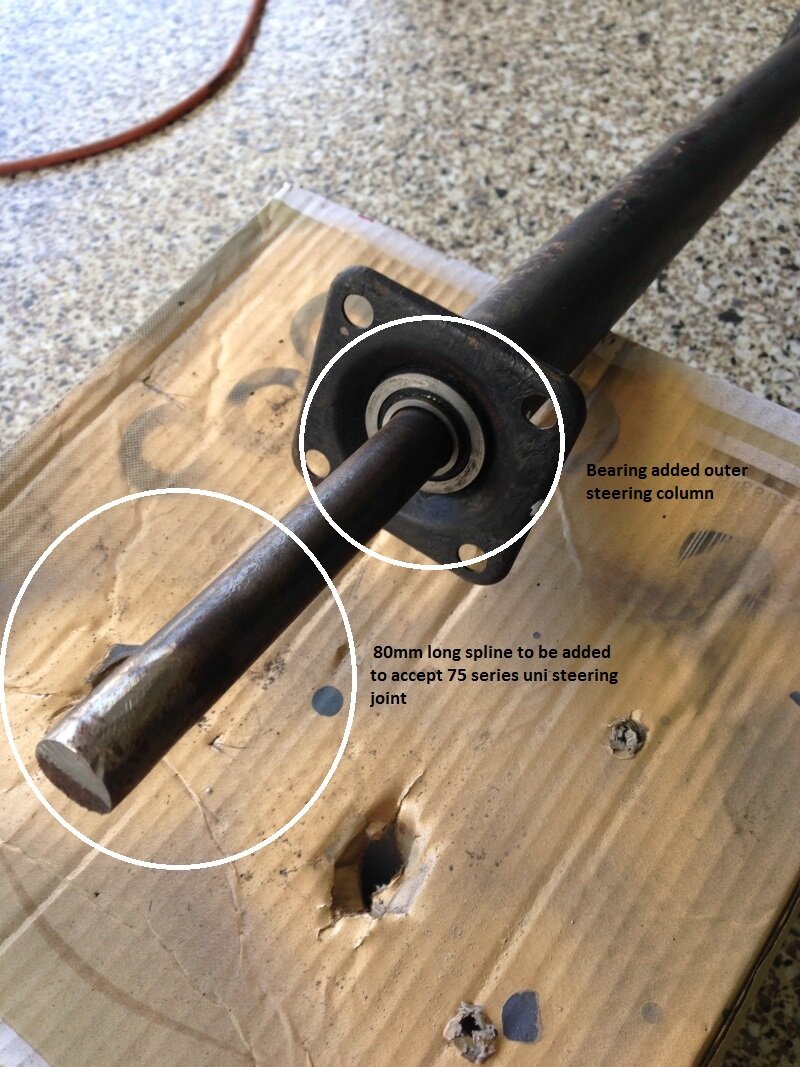

Steering conversion


Steering components


Front Knuckle alignment

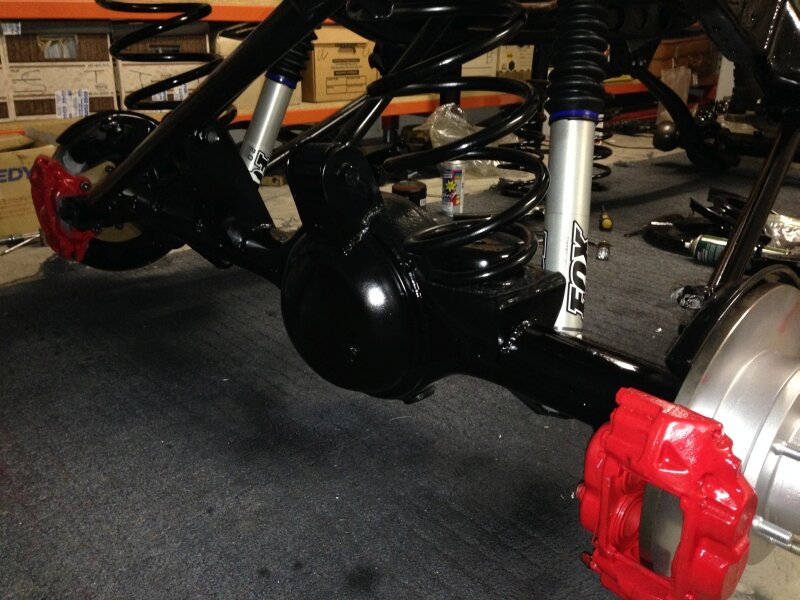

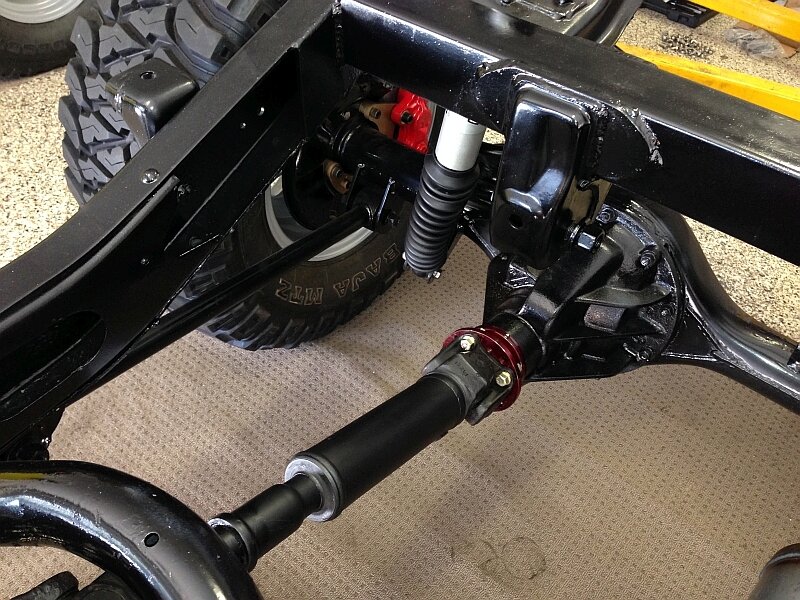

Rear end assembly

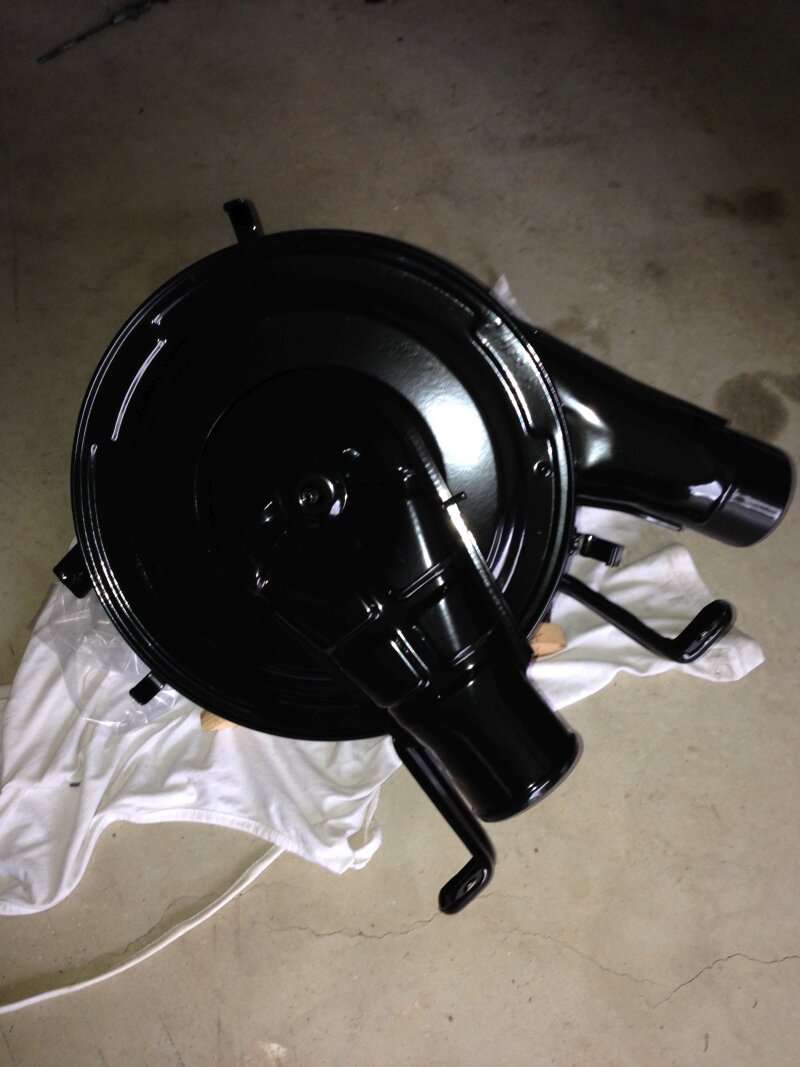

Air filter

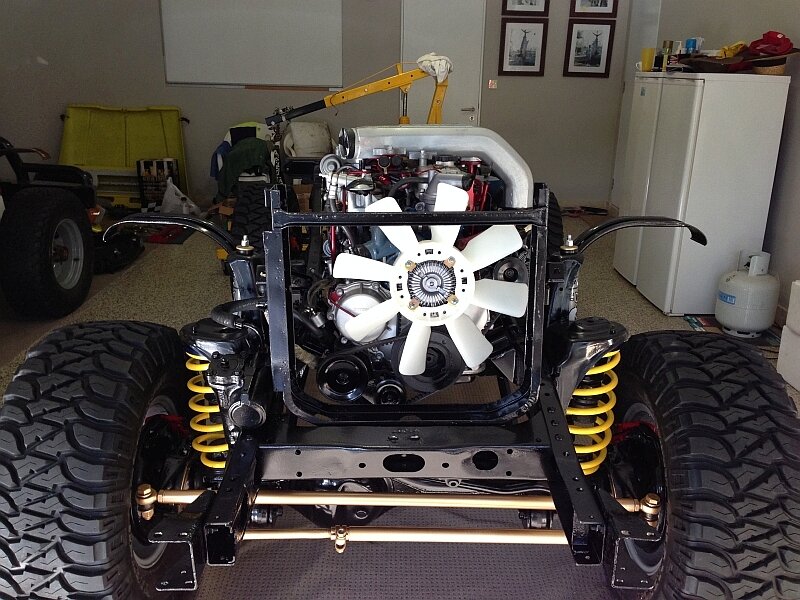

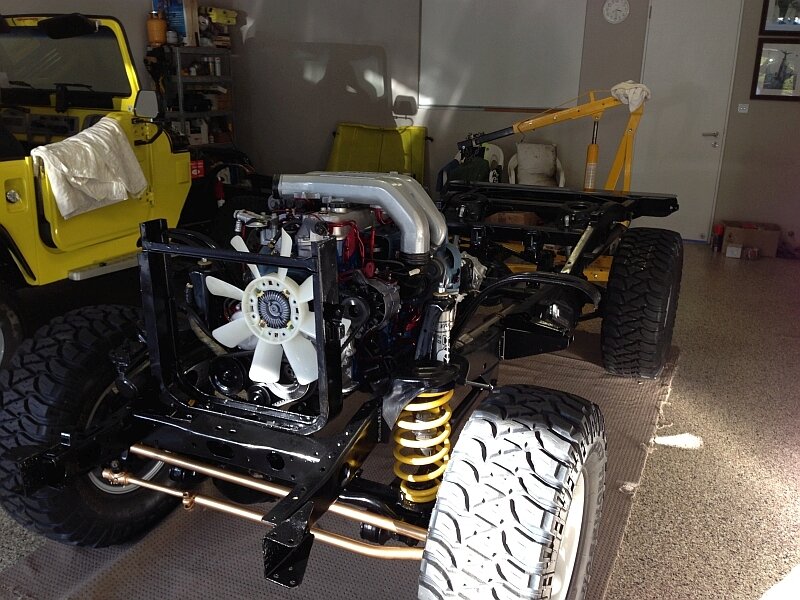

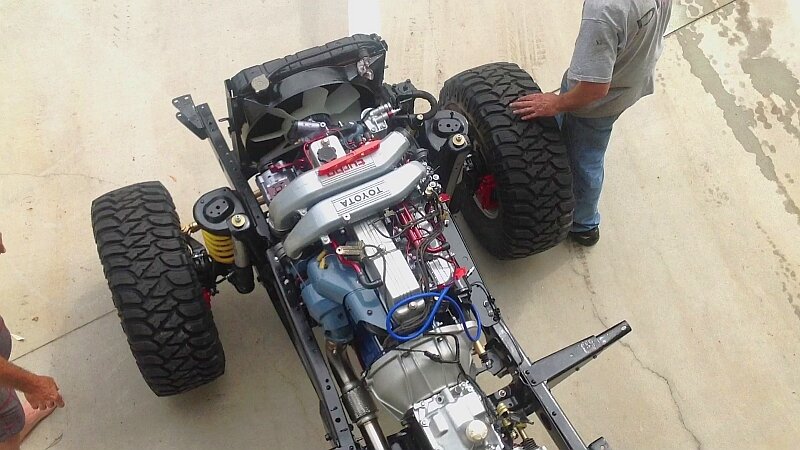

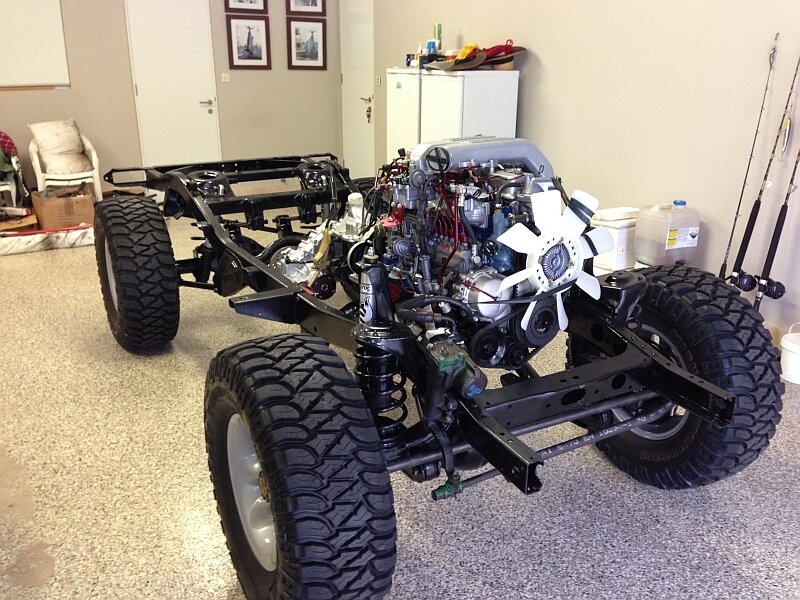

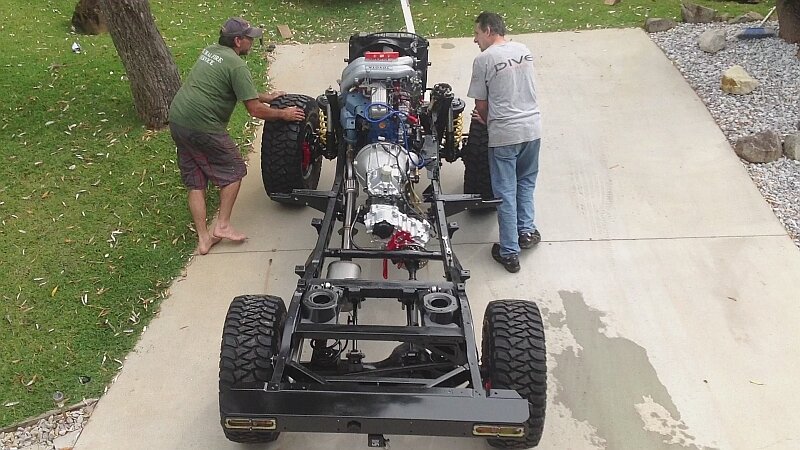

Rolling Chassis



watrob

Active Member
I am in australia
Aug 17, 2014
81
2
16
Brisbane



5 speed install

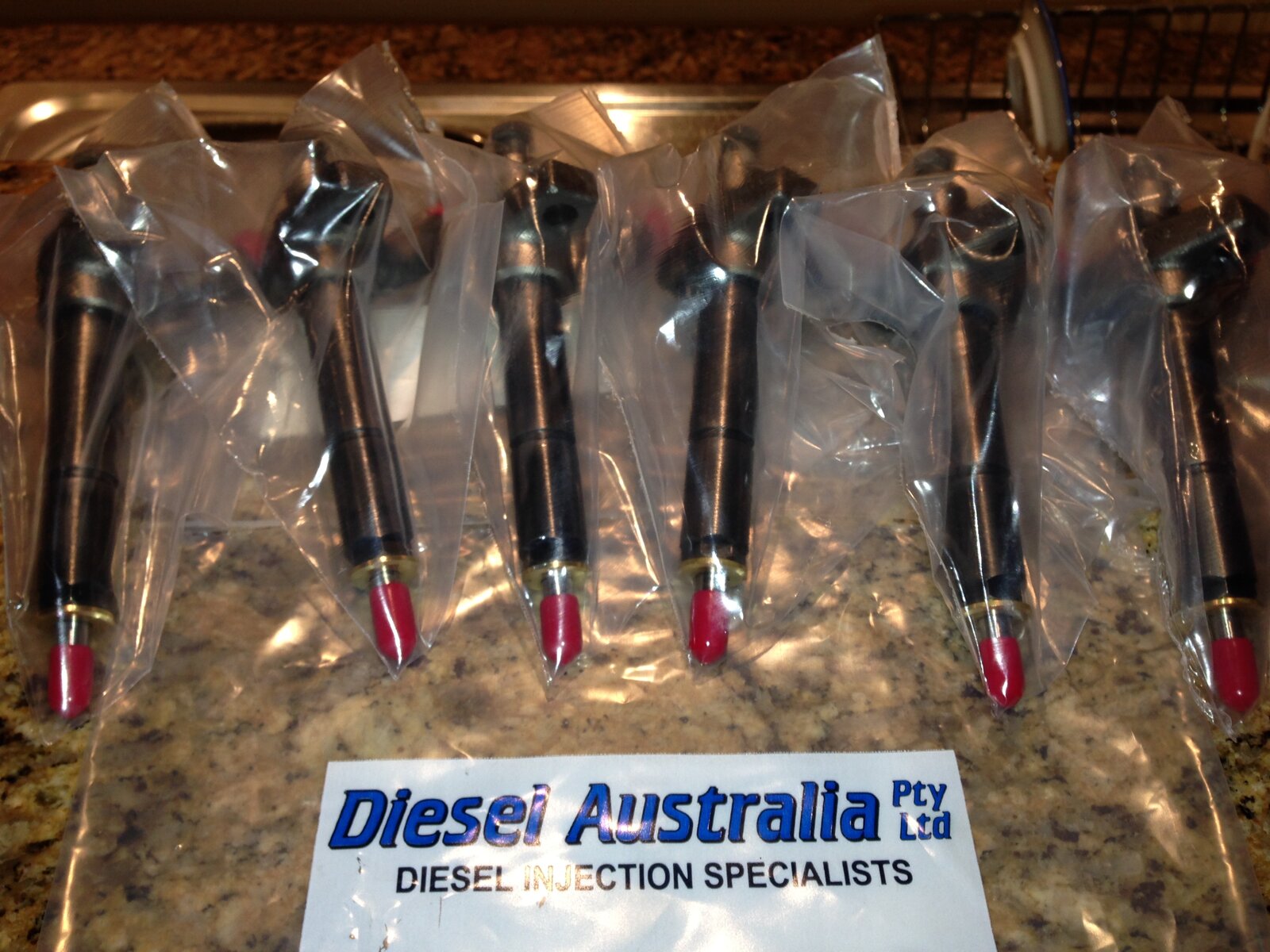

New injectors

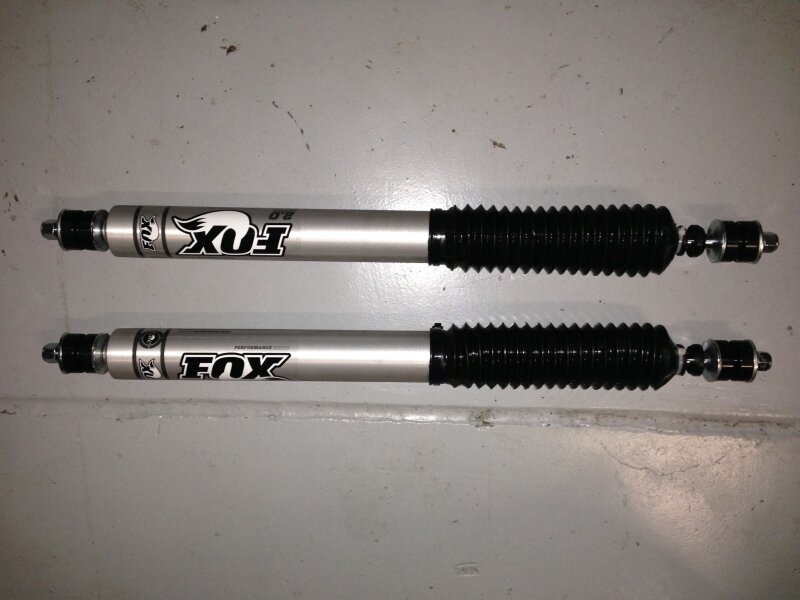

FOX Alloy shocks

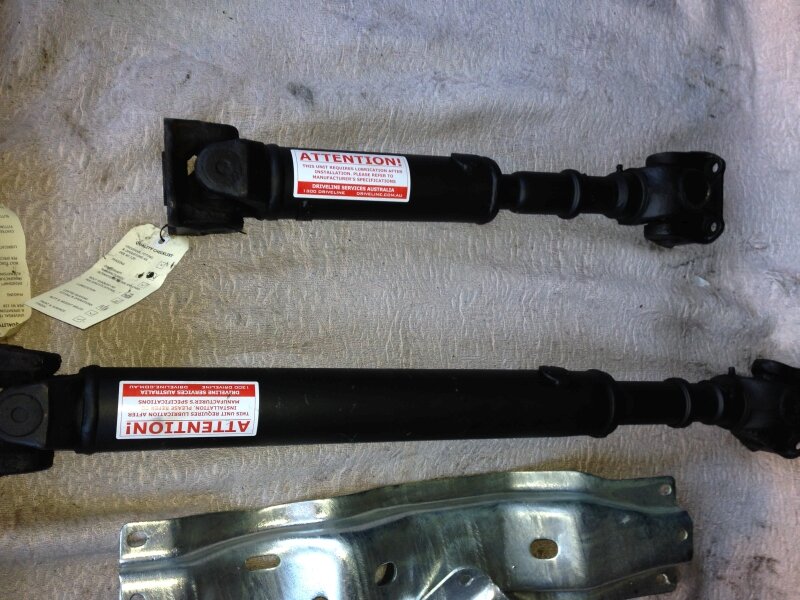

Balanced drive shafts


Front end

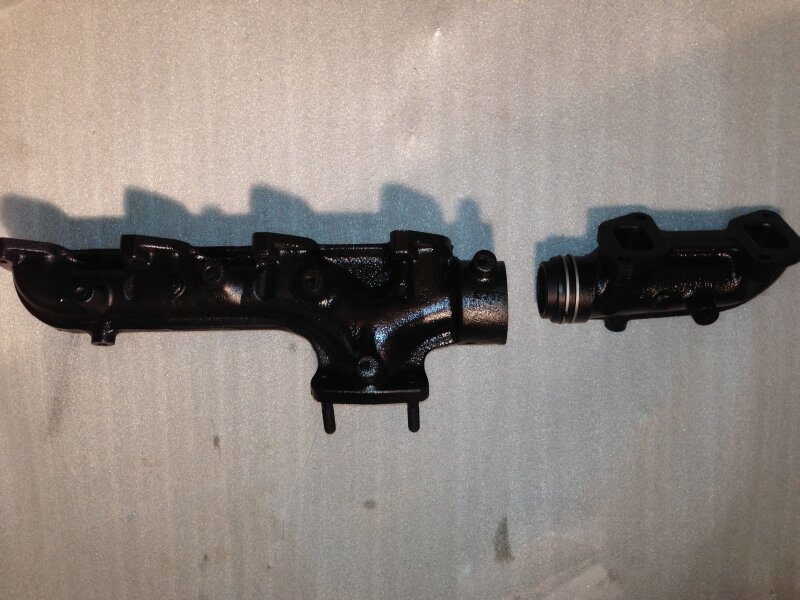

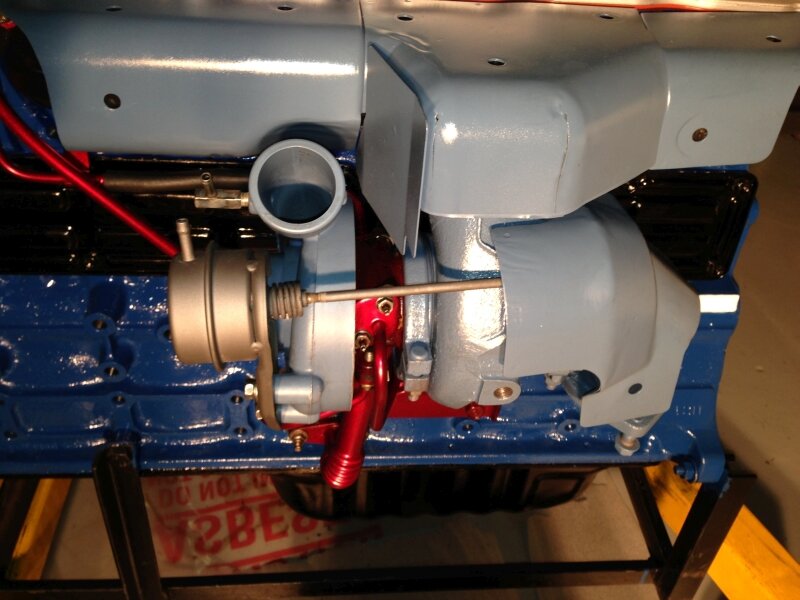

Ceramic Exhaust manifold


New Axles

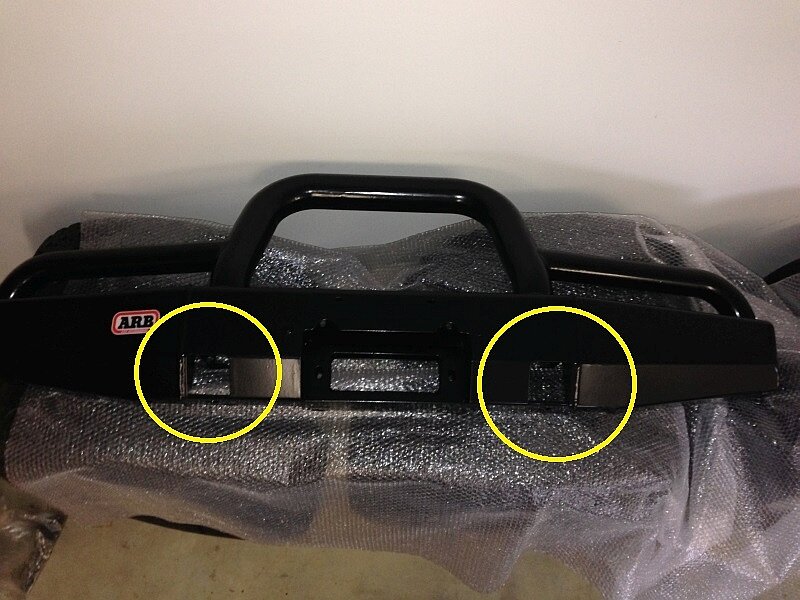

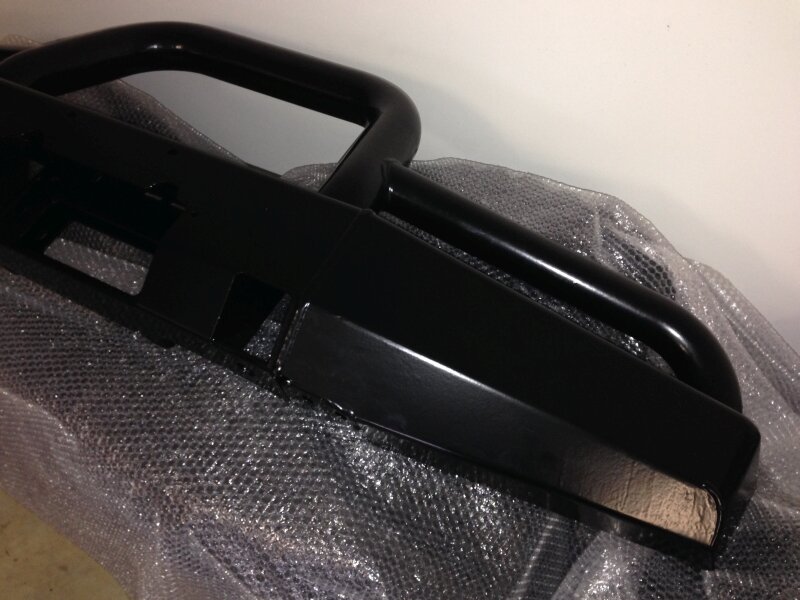

Galvanised bulbar re-powder coated



Chassis1a.jpg IMG_2013.jpg IMG_2037.jpg IMG_2150.jpg $_57.jpg IMG_0644.JPG IMG_1531.jpg IMG_1658.jpg IMG_1624.jpg IMG_0880.JPG IMG_1415.jpg IMG_1597.jpg IMG_1217.JPG IMG_2026.jpg

  • Like
Reactions: guruvetim

watrob

Active Member
I am in australia
Aug 17, 2014
81
2
16
Brisbane

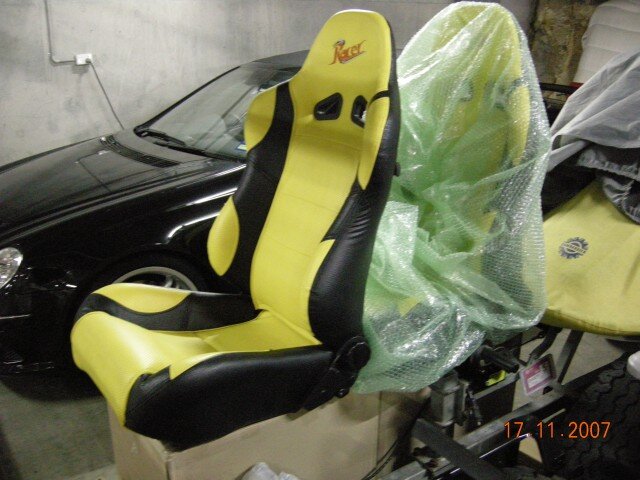

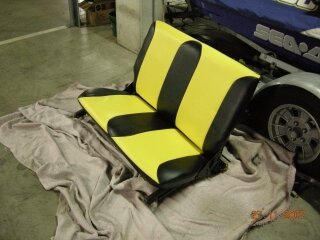

Seats

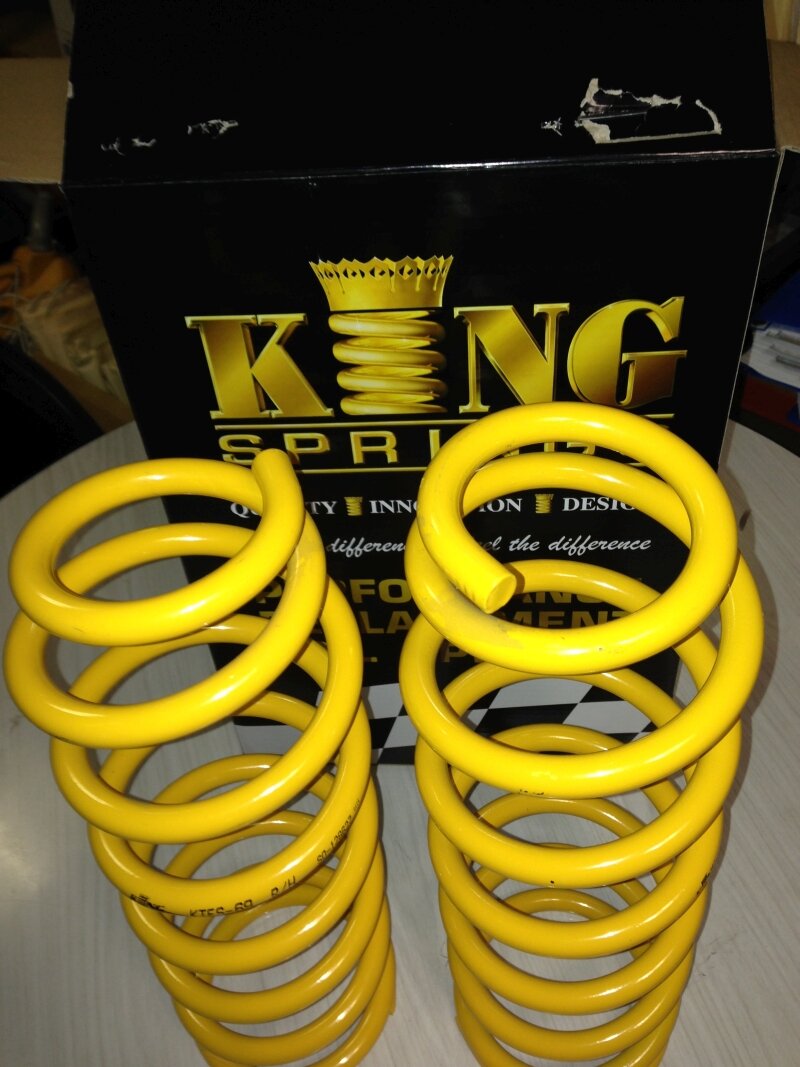

Coils

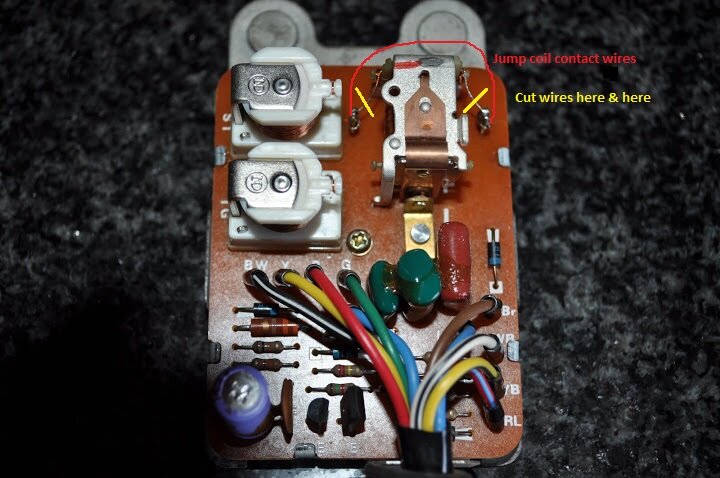

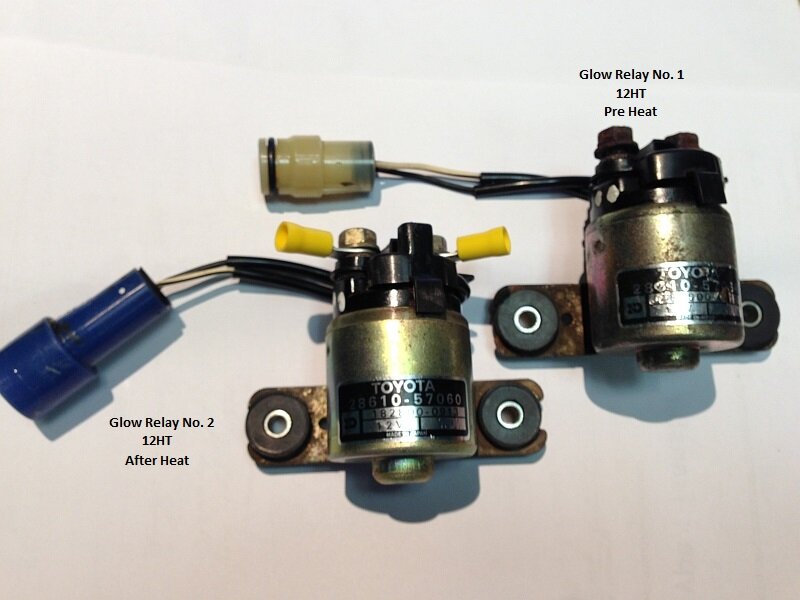

Glow relay conversion

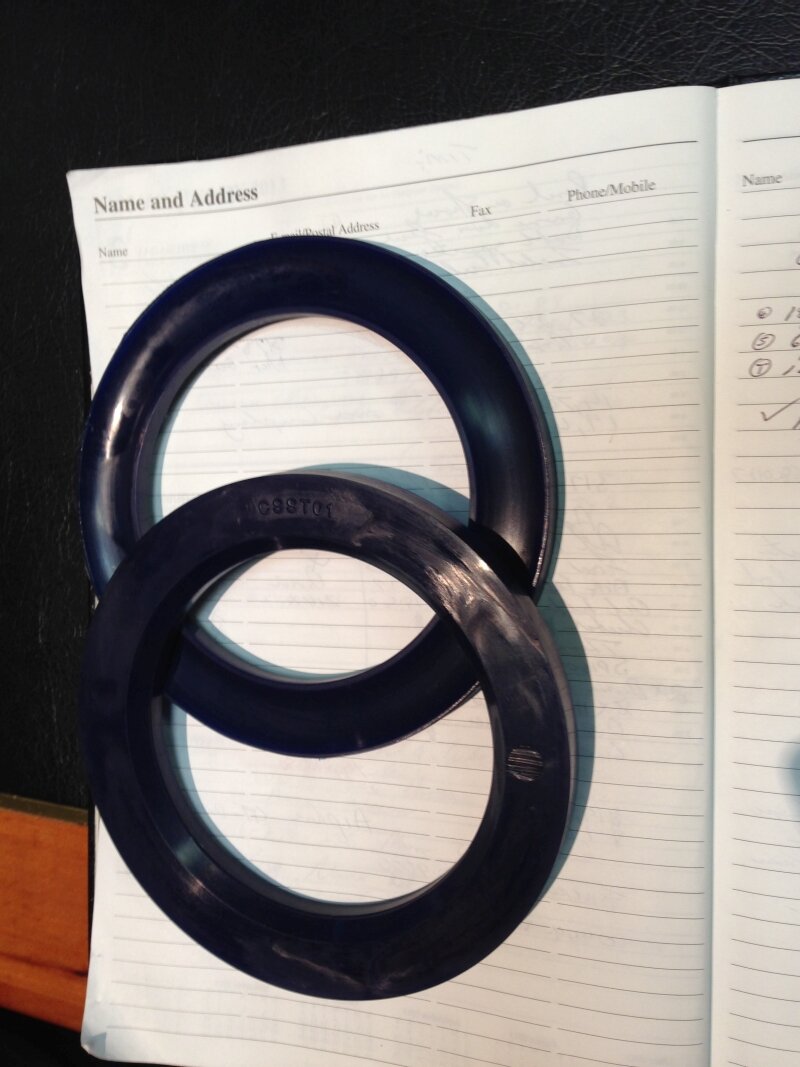

Coil Spring insulators

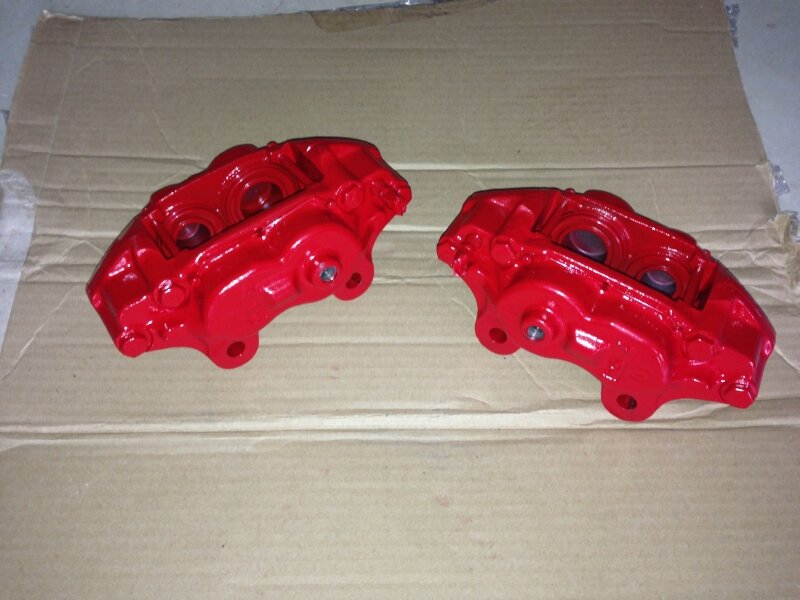

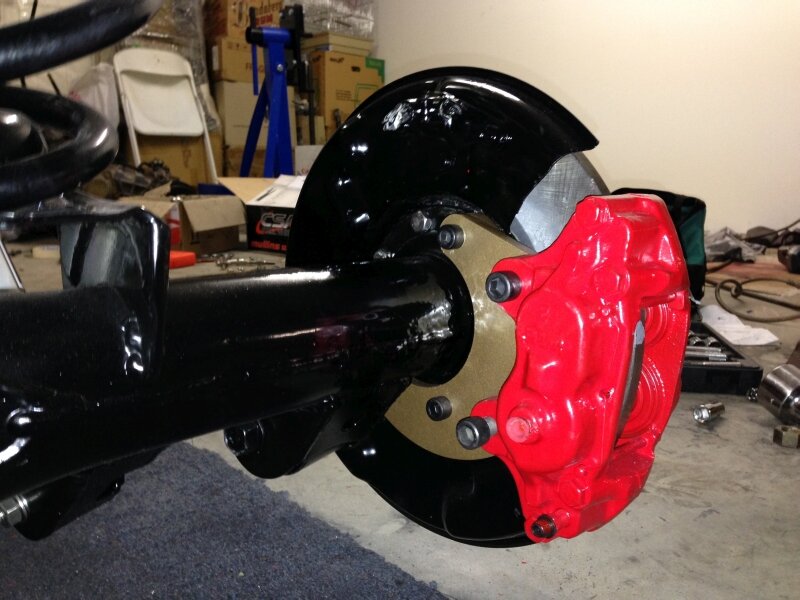

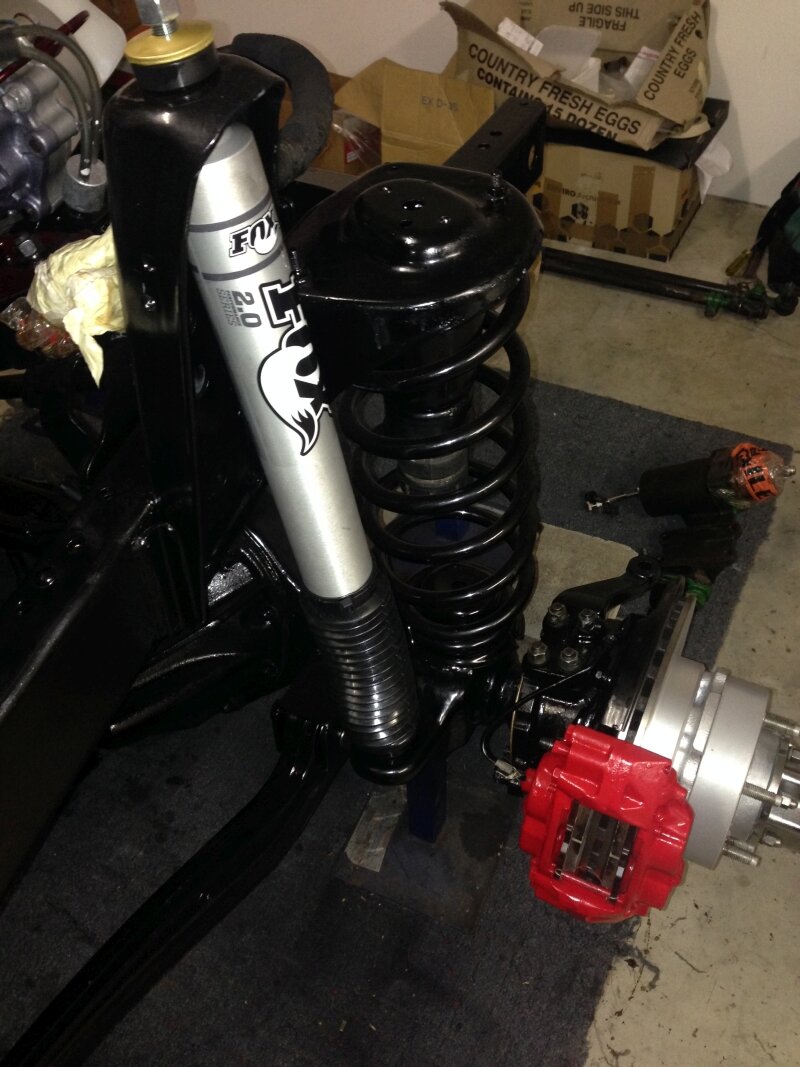

Refurbished calipers all round

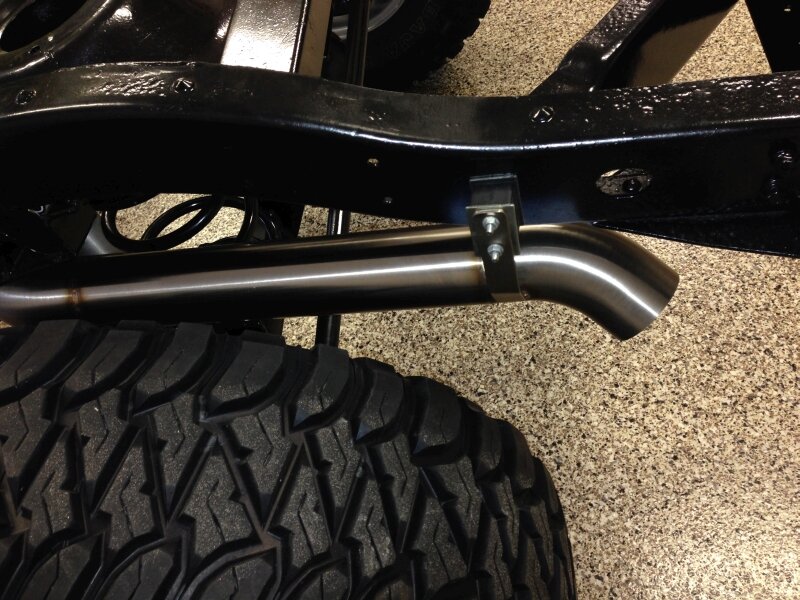

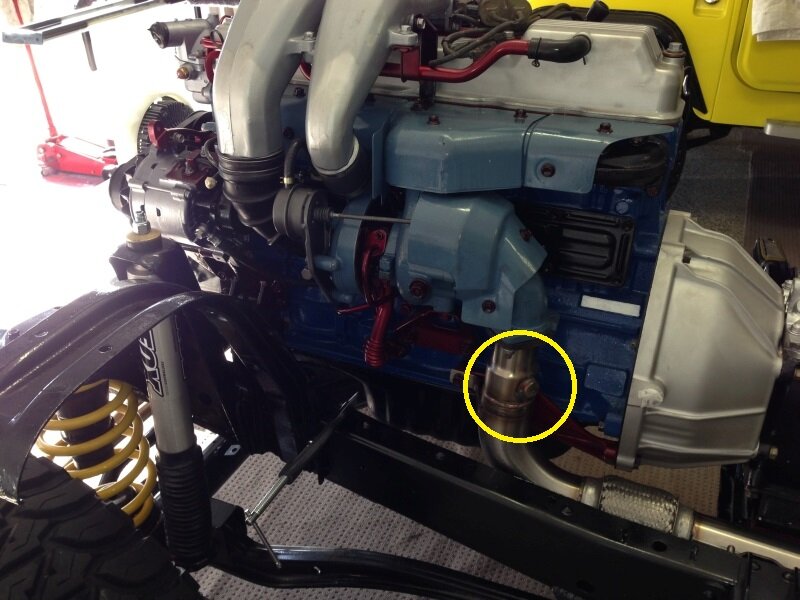

316 Stainless 3" exhaust

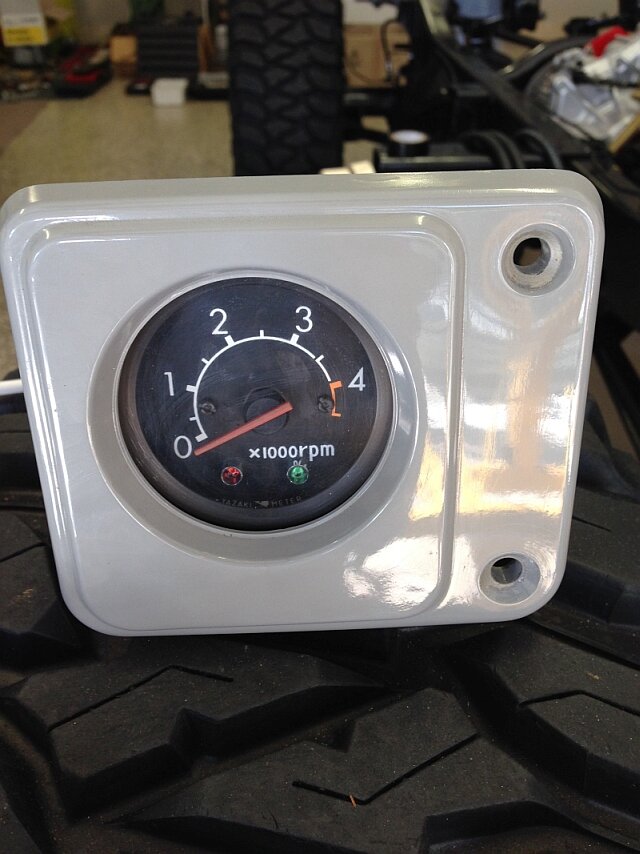

Altered Tacho with led turbo lights


Stainless Steel disc hand brake

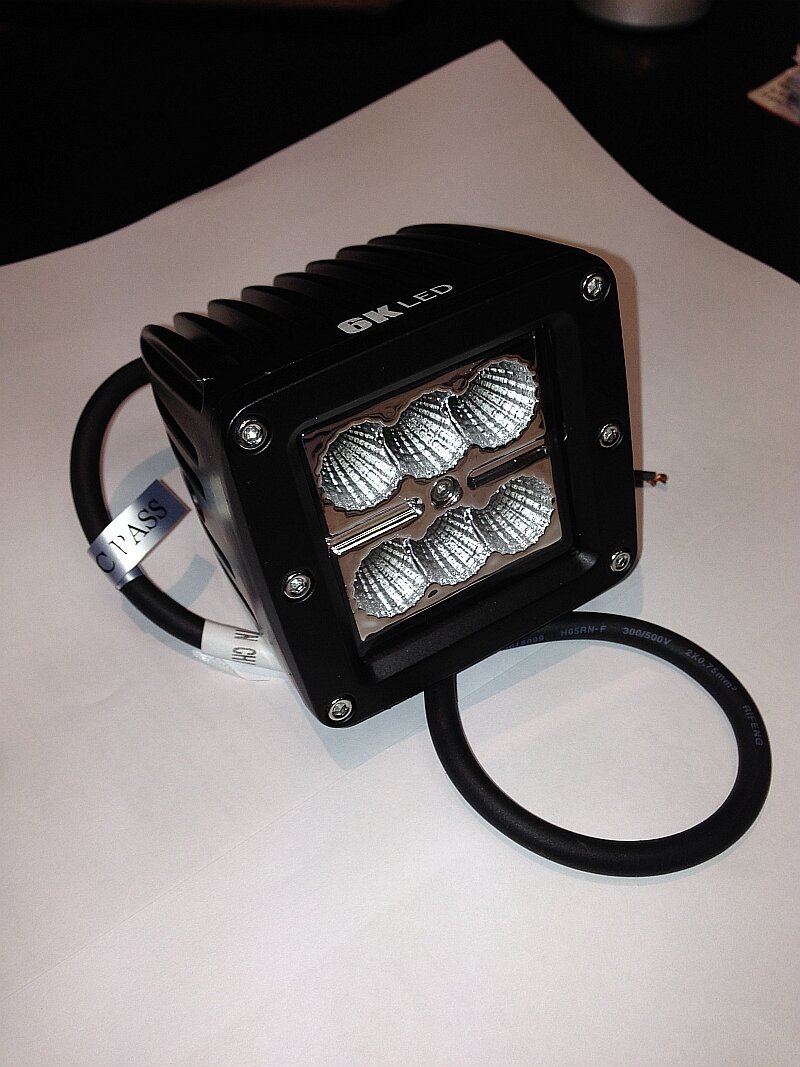

Led lights to ....


Fit in bulbar

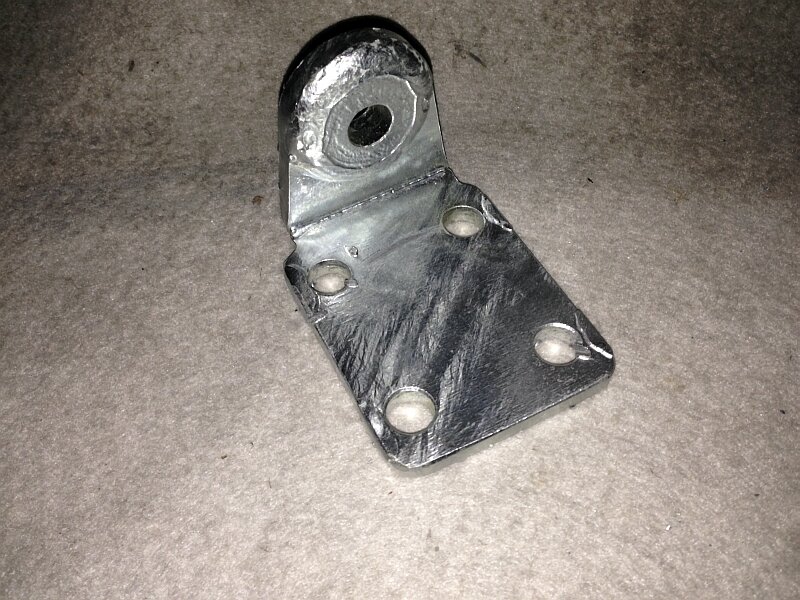

Gal'd steering dampener bracket

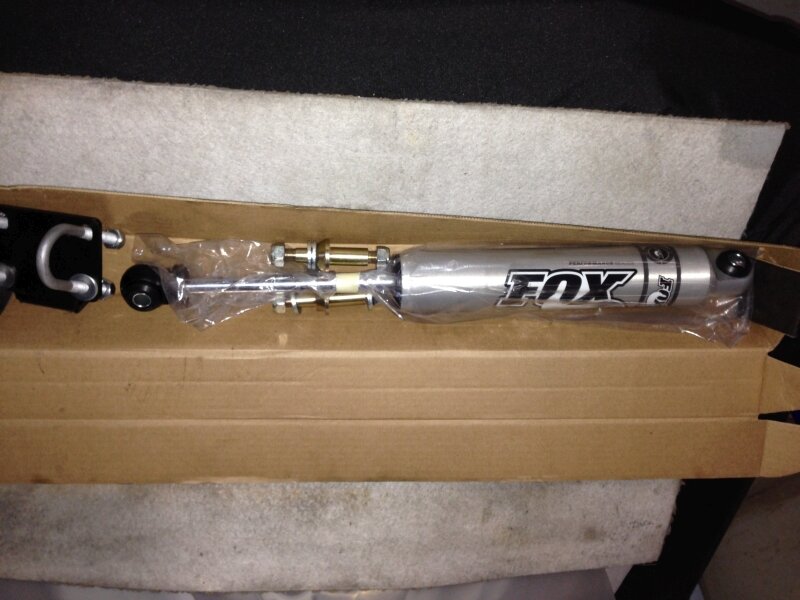

FOX alloy steering dampner


Pyro connection

IMG_1759 Probe.jpg

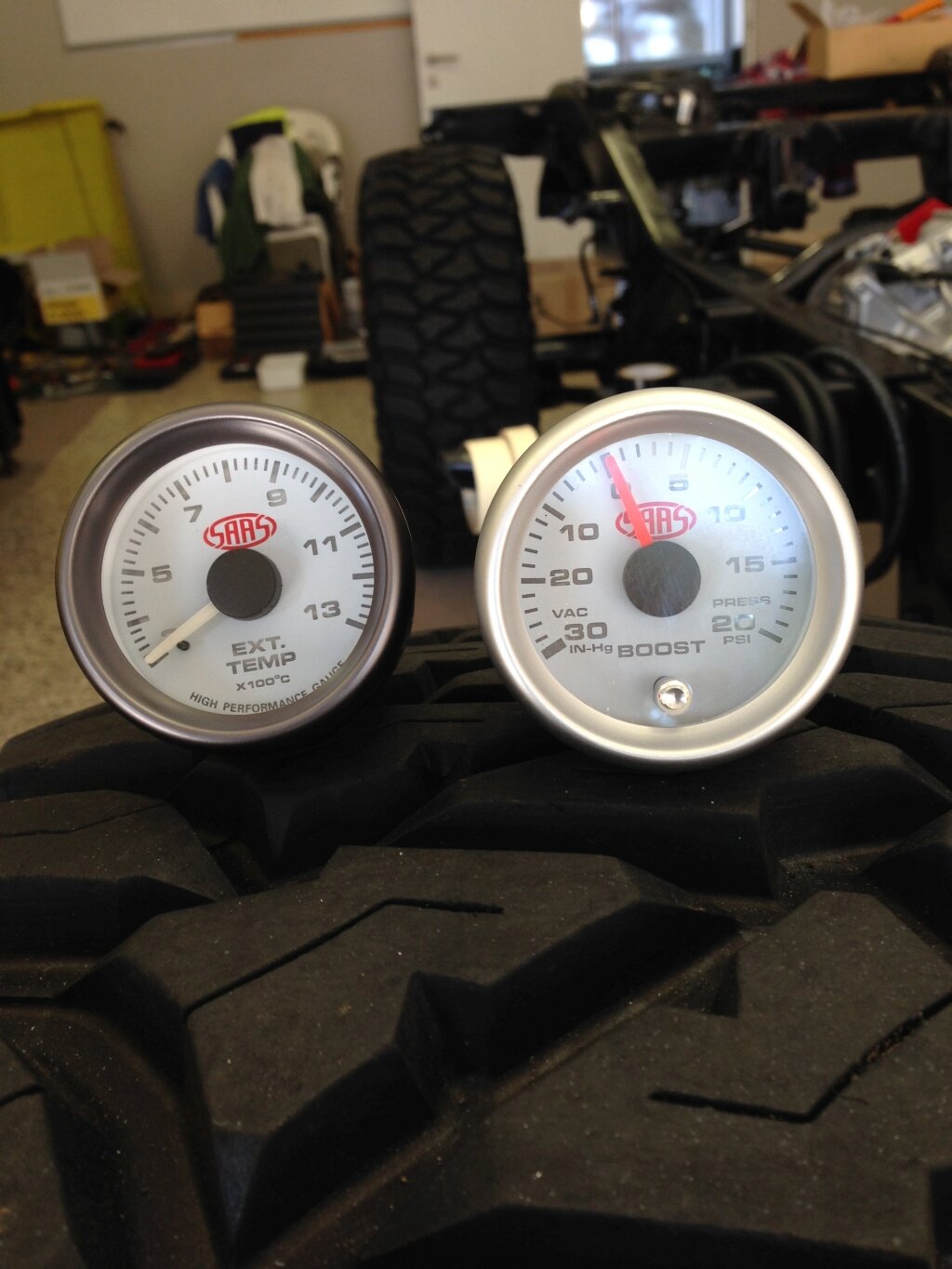

Gauges


Alloy battery cradle install



watrob

Active Member
I am in australia
Aug 17, 2014
81
2
16
Brisbane
Giles, I have really enjoyed doing this build, the technical stuff keeps ones mind active. I have all the parts (just waiting on the fibreglass body to be built) to do another which I will start in the new year. Having done one the second should be under a 12 month build. The engine is around 200 hours work and I want to have a Christmas break and just enjoy the beach & fishing with the 40 I just finished.


Giles

Well-Known Member
I am in uk
Feb 25, 2014
201
0
36
Cardiff
mate i need to move, go to the beach in the Uk around Christmas and you will get very wet/cold, could get swept away, and if its after 3pm in the afternoon you better take a torch.

I might be really interested in asking you to build one for me if that would be good for you, i wouldn't want a body as I would fit an aluminium one but only after I had got the car UK registered, take a look at the link if you not seen them before

http://www.aqualu.com/fj40-bodies--cowls.html


watrob

Active Member
I am in australia
Aug 17, 2014
81
2
16
Brisbane
Yeah I know of the Aqualu bodies but aluminium is not the best for a beach vehicle, this is my domain.


Beach is around 50 miles long from river mouth to light house.


Last edited:
  • Like
Reactions: guruvetim

watrob

Active Member
I am in australia
Aug 17, 2014
81
2
16
Brisbane
Few more photos

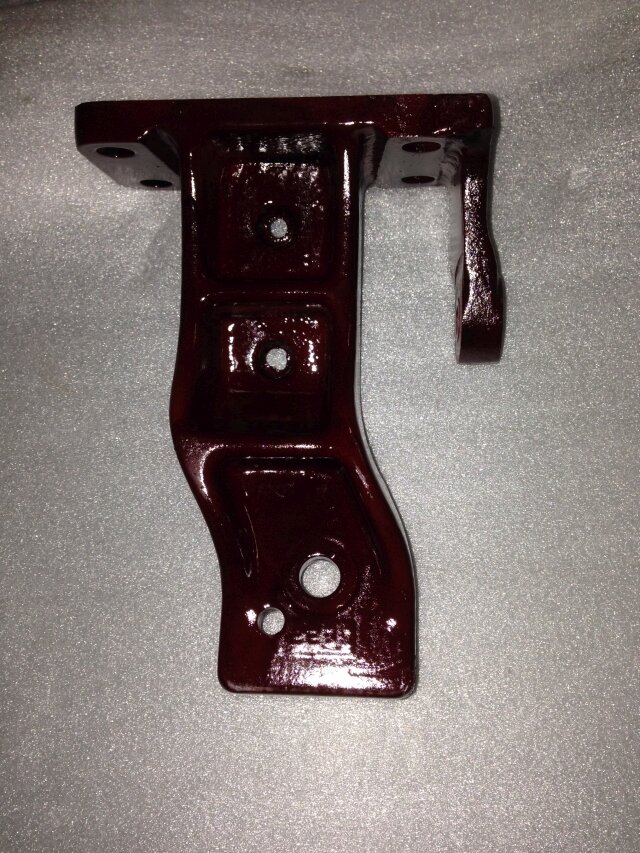

HJ47 engine bracket with added power steering bracket for 12ht

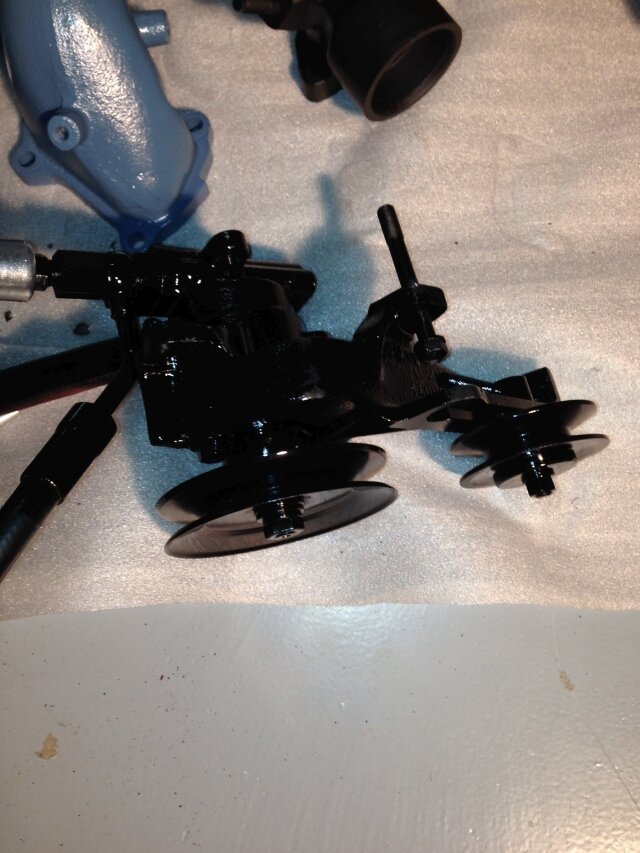

12ht power steering pump


Gal'd radiator surround



Giles
