80 series rear quarter-panel rust repairs

weldaboy

New Member
Joined
Jul 30, 2021
Messages
6
Country Flag
uk
Started my air con repairs last week but now i am forced to repair the corrosion problems before i refit the air con unit ,as if i have nothing else to do

So here goes
Firstly remove arch extensions
Two 10mm bolts from inside quater panel hold them firm,then pop out press fit white plastic studs from yellow inserts on the outside .
The rear plastic bumper corners had been restored by me several years ago and refitted using stainless fixings so that took 30 seconds to removed this time,
But if its a first time removal just grind,chisel,or snap the rusted fixings by tightening the nuts and bolts and renew all.. That will save much time and effort


And there is another job to do ,this is the rear bottom bracket,a good set of german pliers removes those screws ,i wont be using metal brackets when refitting.

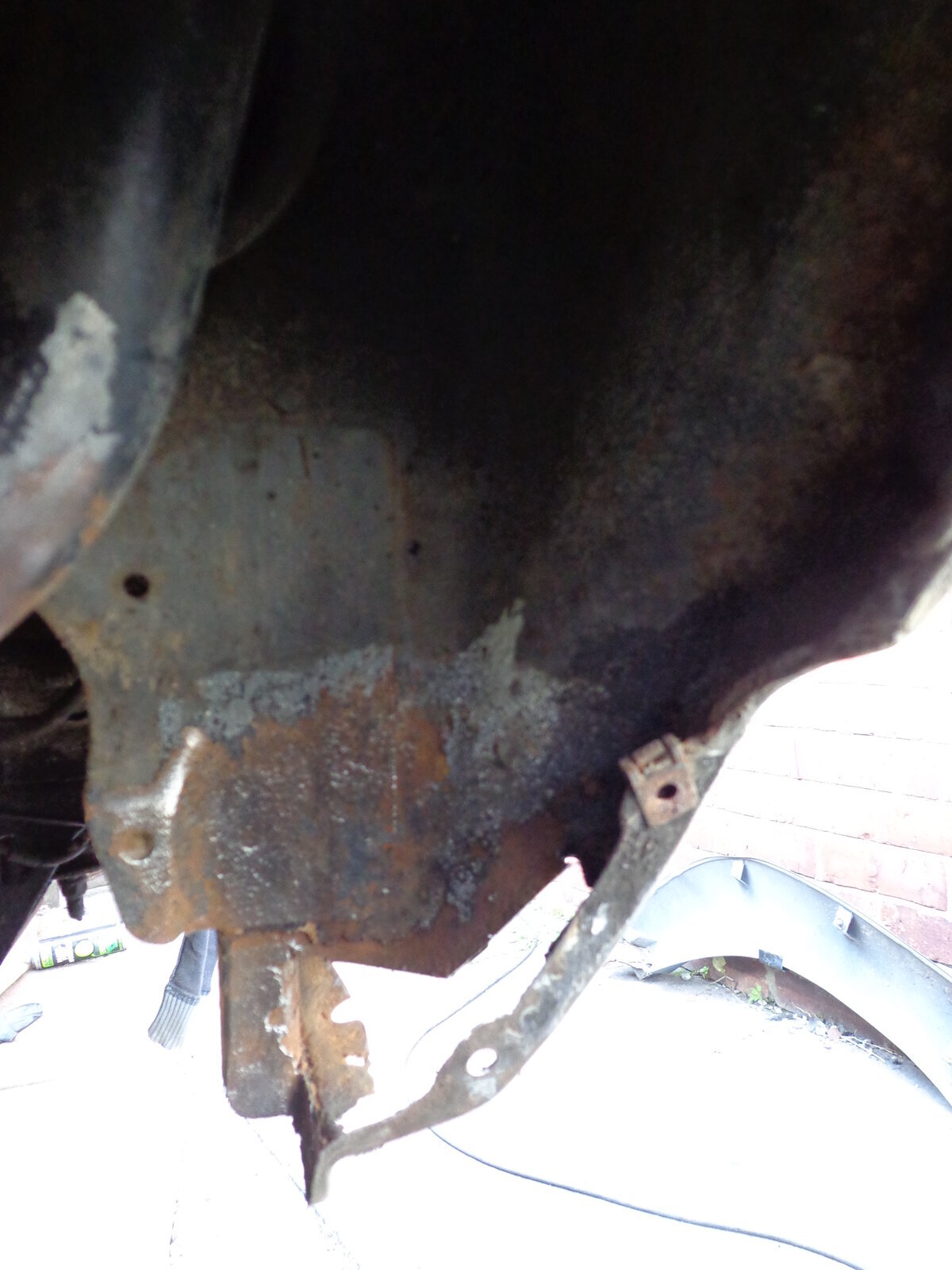

Whats left of the metal bracket which fits on the inside bottom of the rear arch



Drivers side with templates in place,but i then noticed heavy pitting at the rear , looks like corrosion from inside .


AND HERE

Always wear a full face mask and leather gloves, 1 or 1.5 mm cutting blade gives a clean cut,

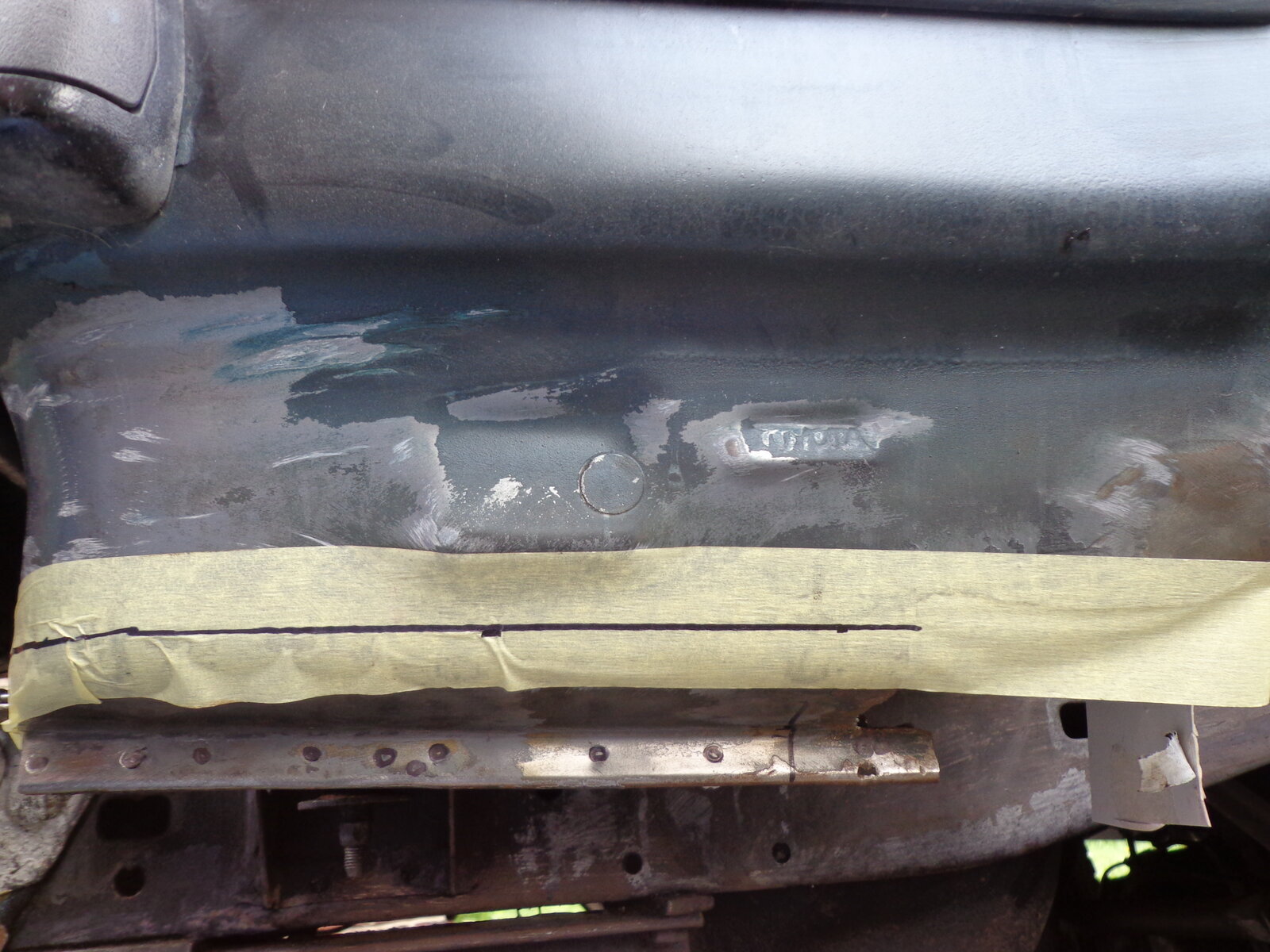

To give clear vision for cutting when wearing eye protection use a light colour tape and a black marker pen ,very easy to follow with the cutting disc.
SO I DECIDED TO CUT ,DRILL AND TAKE A LOOK.

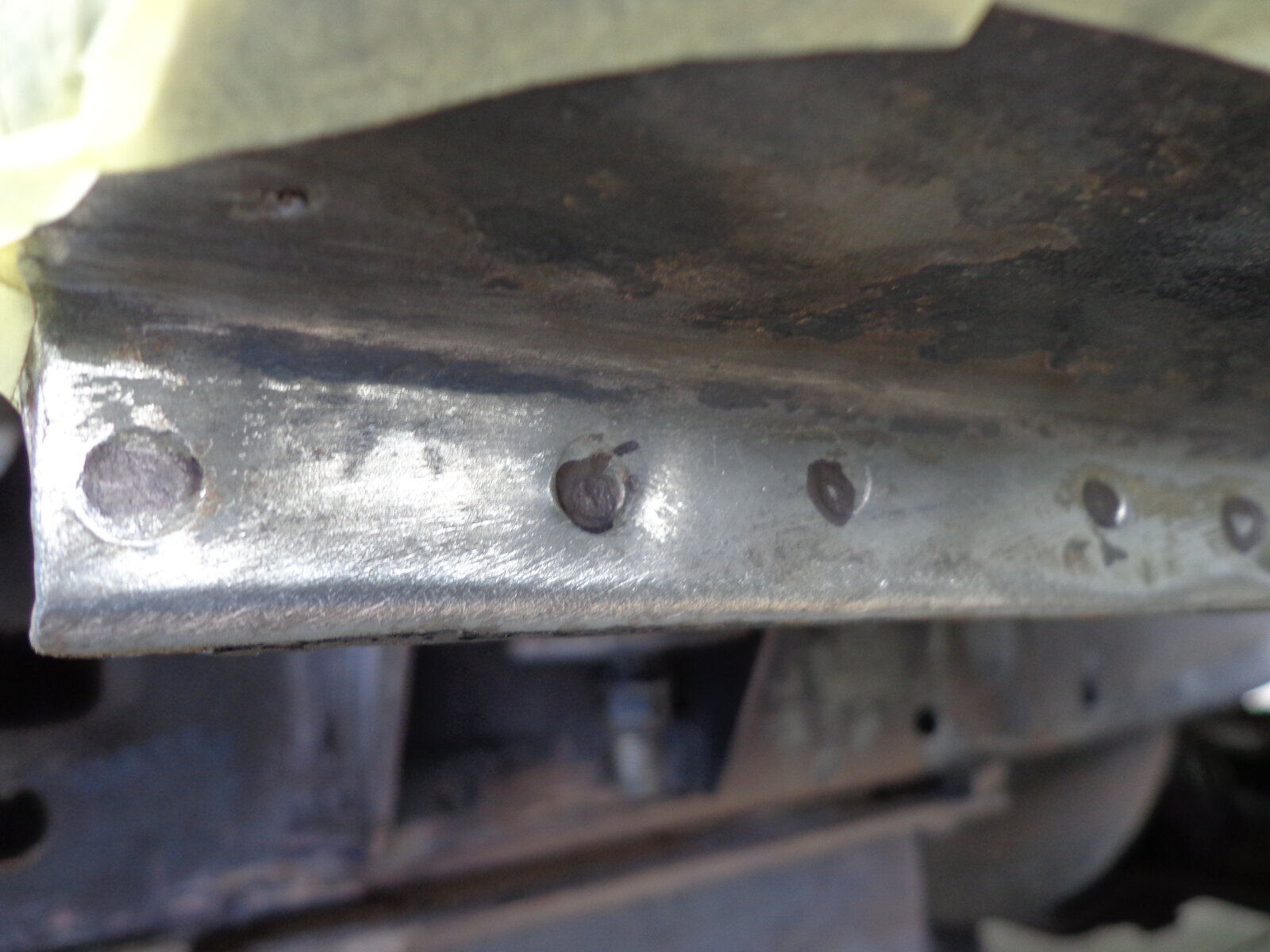

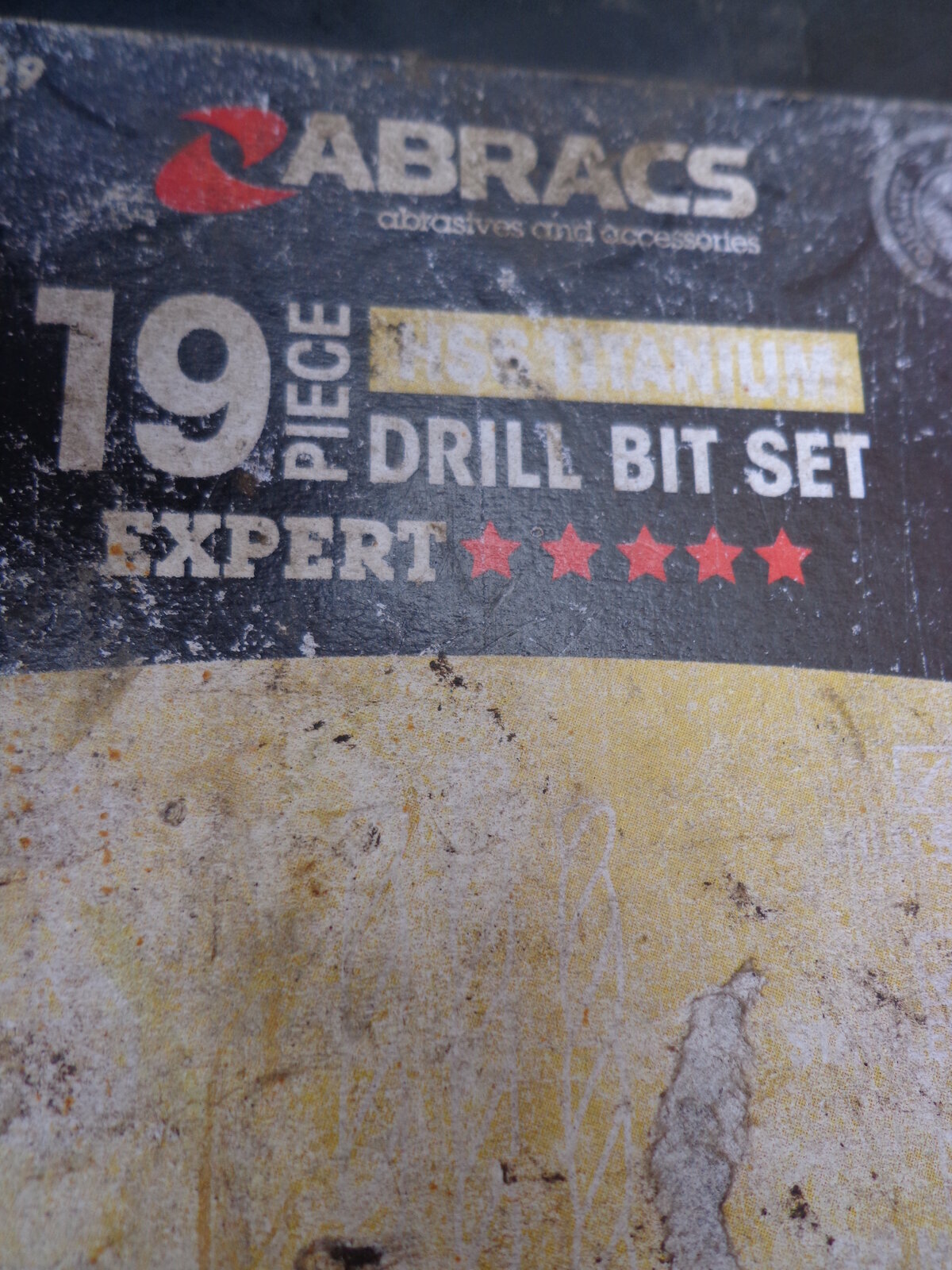

Drill out spot welds ,small drill first all the way through then take a much larger drill and ease it half way untill you see this,the 2 layers of steel

I was not expecting it to come away with the ease it did,no hammer required.

But i am very please i cut this out, what a mess

Use a wire brush on your grinder and clean it up....warning... These wires fly off and implale themselves into you and your clothing,leather jacket and double eye protection is required.

My initial plan was to acid dip this section and refit it,but after it came out of the acid i decided to make a new panel.

Drivers side has been affected worse with corrosion ,i think due to the aluminium pipes and fitting for the rear air con,

Passenger side inspection hole cut out,
i will be cutting out bottom edge also same job as drivers side.once these jobs are done there is no serious corrosion problems on my 80 series.
The 2 main reason for corrosion here is the rear arch extension,which acts as a bucket for wet mud and salt.
And water leaks from inside ,windows,
rear tailgate seal,
rear vent on sliding windows
and there are no drain holes on this spot welded section as there are on the sills,
i will be making 3 drain holes in my new panels.
More next week
As mentioned ealier while all interior rear trim is removed i noticed rust on the rear window frames so here goes.
3 spots of corrosion like this on inside rear window frame,
DSC08550.JPGali frame befroe removalDSC08734.JPGbefore i cleaned the frames i inspected the corrosion affected areas as i was mystified as to why one window frame was this and the drivers side was perfect.

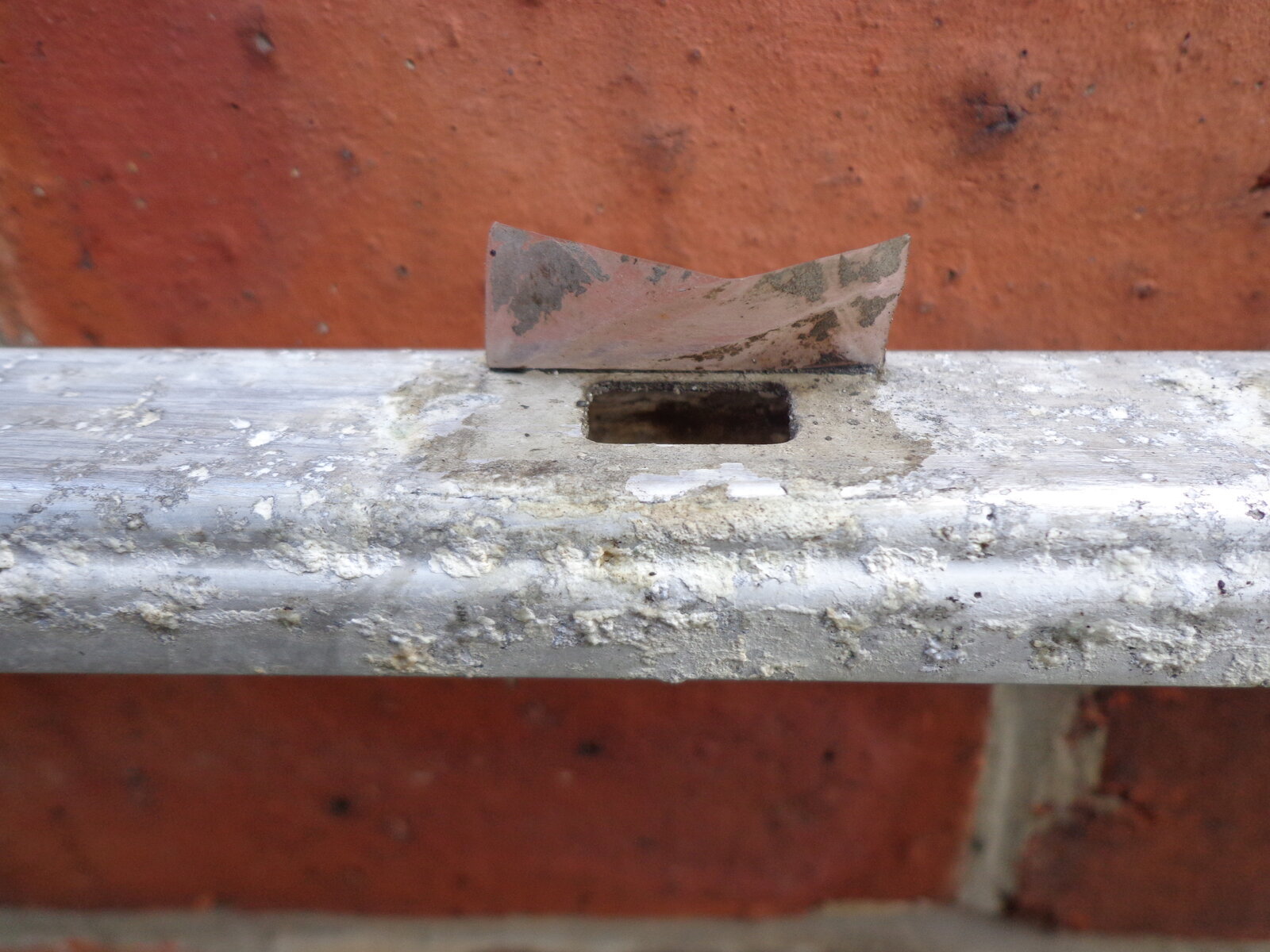

just look at the difference a plastic flap had made to the corrosion,this is a water flap,allowing water to drain from the bottom window channel, all 5 remaining flaps had protected the frame from corrosion,why i do not know.
DSC08755.JPGafter removal and a acid dipDSC08742.JPGDSC08743.JPGThe damaged aluminium window frame is going to be coated to protect it befroe refitting and the 3 rust spots on the interior window frame can be ground down,treated with acid and its as good as newish.

Concerning upgraded secirity .
As we are planning a trip next year overseas with young children and i also want carry some tools I am planning to fit 8mm lexan windows to replace the glass originals to give addional security ,manufacturing in progress now .
I will list results here if anybody is interested
Rather than fitting a lexan rear tailgate screen which to do properly is a costly process i am going use a blast resistant 3M window film which gives a decent level of impact protection but is only highly effective when overlapped by several inches on the window frames.

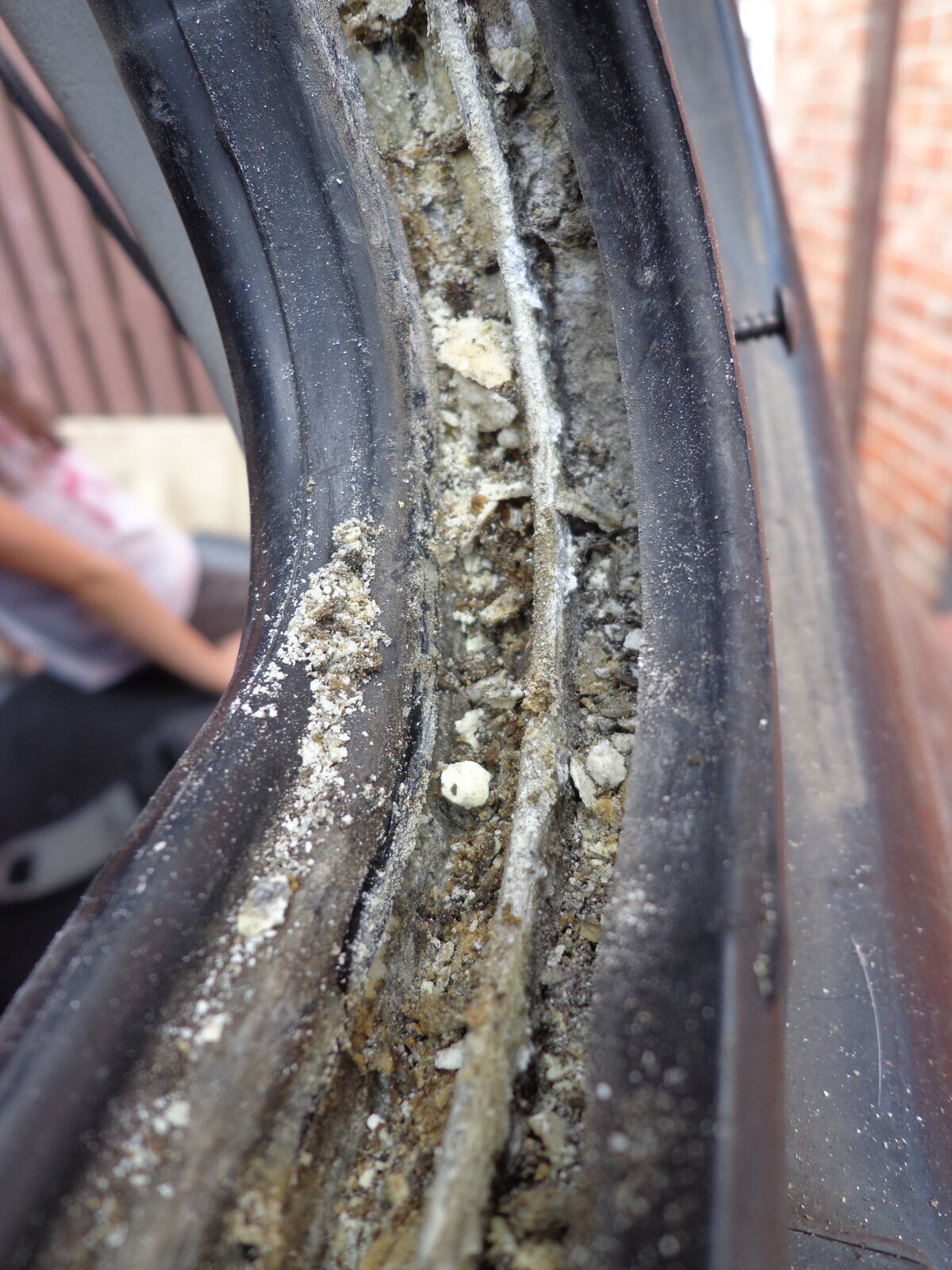

I refitted the window without the aluminium frame just to see what options i have for a refit,,DSC08745.JPGwater drain holes at bottom of winow rubberDSC08748.JPGI am looking into fitting a plastic window channel, not in the facory form.


Attachments

  • DSC08568.JPG
    184.5 KB · Views: 8
  • DSC08581.JPG
    291.4 KB · Views: 8
  • DSC08579.JPG
    197.3 KB · Views: 6
  • DSC08598.JPG
    402.5 KB · Views: 8
  • DSC08733.JPG
    383.4 KB · Views: 7
Last edited:

Chris

Super Moderator
Supporter
Joined
Feb 24, 2010
Messages
17,715
Garage
Country Flag
great_britain
Excellent work and a great write up. But you have been asked once before, please stop typing in block capitals on the forum. Your posts are most valued but typing in captitals is considered to be shouting in social media terms.


Towpack

Well-Known Member
Supporter
Joined
Oct 4, 2011
Messages
4,015
Garage
Country Flag
england
I regularly check inside the rear quarters behind the trim panels for water ingress and pooling. I had a leaky rear window some time back which I fixed. Luckily there was only slight surface corrosion just starting. I dried everything out, treated the rust and sprayed with Corrosion Block.


Bmonck

Well-Known Member
Supporter
Joined
May 23, 2015
Messages
314
Country Flag
england
Ooh this feels like a job I should explore or do but luckily the rust is out of sight at the moment. Keep the great pics and explanations coming. Cheers
