VF4B transfer case compatibility and pictures

MZ_prado

New Member
I am in mozambique
Sep 6, 2013
22
0
16
Quelimane, Mozambique

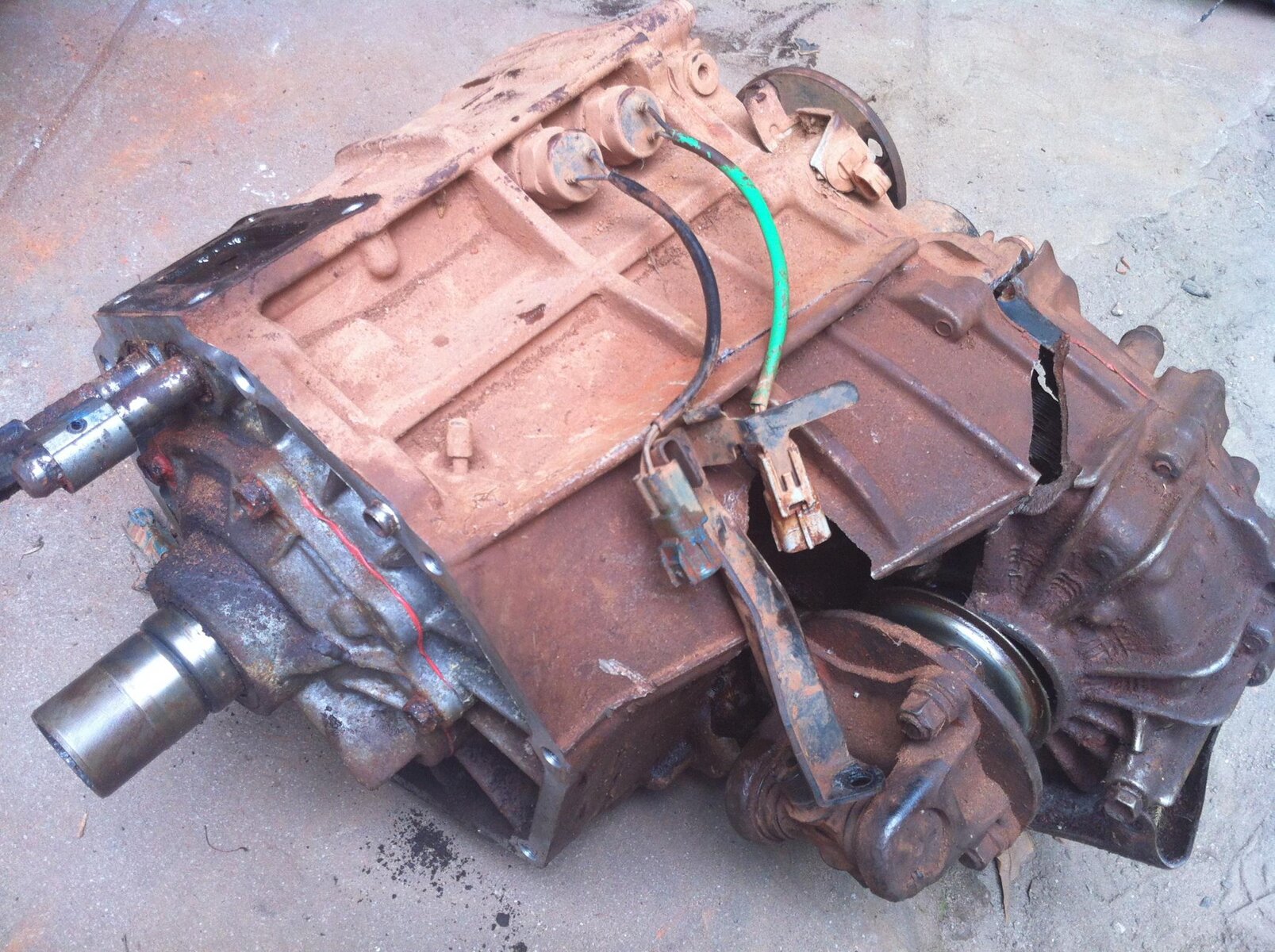

Hi there. My VF4B transfer case, from my lc 120 (RZJ120; japanese model) as been broken. This is how it looks like right now:
A useless wreck! :icon-cry:

I live in a very remote outback district in Mozambique, and is very hard for me to get spares. Therefore, I've been trying to get my hands to a used VF4B transfer case with not much success. I know that this transfer case is used in a large variety of cars.
(1) would anyone have info about the vehicles using the VF4B transfer case?
(2) would anyone have good pictures I could use as a reference in this search of mine?

Many thanks ahead.
MZ_prado.


Attachments

Last edited:

stumog

Well-Known Member
I am in england
Oct 3, 2012
3,510
644
113
blimey I have seen some unusual breakages that up there. did it run out of oil and seize? sorry I cant help you on what else will fit it. I know there is a LC breaker just out side Pretoria I can get you the number I expect let me know.
stu

Don't like the adverts? Remove them by becoming a supporting member.   Click here

MZ_prado

New Member
I am in mozambique
Sep 6, 2013
22
0
16
Quelimane, Mozambique
blimey I have seen some unusual breakages that up there. did it run out of oil and seize? sorry I cant help you on what else will fit it. I know there is a LC breaker just out side Pretoria I can get you the number I expect let me know.
stu
The joint of the front propeller broke and then the propeller slamed into the transfer case! :angry-screaming:

Not sure how would I get there, but yes, please do send me the LC breaker's contact.

Many thanks.
MZ_prado


sae70

Well-Known Member
Supporter
I am in uk
Aug 10, 2010
2,643
23
38
Witham, Essex, United Kingdom
Garage
This is not a guarantee, but here is what ToyoDiy says about the part number cross reference for the transfer box in your Jap RZJ120W-GGPEK

Part 36100-6D270 (TRANSFER ASSY) was found on the following models:

Date range Model Frames/Options Found in diagram


01/2005- TOYOTA FORTUNER GGN50,60,KUN5*,6*,LAN50,TGN51,61 36-08: TRANSFER ASSEMBLY & GASKET KIT
Model Dates: Matching Models: Model Options: Links to diagrams:
11/2006-07/2008 TGN51L-EKPSKV SR, GCC, IDSUV, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
02/2009-03/2012 TGN51L-NKPSKU SR, VN, SUVW, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
07/2005-07/2008 TGN51L-NKPSKV SR, GCC, SUVW, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
08/2008-06/2011 TGN51R-EKPSKD SR, IDN, IDSUV, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
04/2005-07/2008 TGN51R-NKPSKD SR, IDN, SUVW, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
08/2005-08/2008 TGN51R-NKPSKE SR, MA, SUVW, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
01/2005-07/2007 TGN51R-NKPSKT SR, TH, SUVW, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08


07/2011- TOYOTA FORTUNER GGN50,60,KUN5*,6*,LAN50,TGN51,61 36-08: TRANSFER ASSEMBLY & GASKET KIT
Model Dates: Matching Models: Model Options: Links to diagrams:
07/2011- TGN51L-EKPSKV SR, GCC, IDSUV, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
11/2011- TGN51L-NKPSKF SR, CO, SUVW, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
07/2011- TGN51L-NKPSKV SR, GCC, SUVW, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
07/2011- TGN51R-EKPSKD SR, IDN, IDSUV, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
07/2011- TGN51R-NKPSKD SR, IDN, SUVW, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
09/2011- TGN51R-NKPSKE SR, MA, SUVW, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08


09/2002-02/2010 TOYOTA LAND CRUISER PRADO GRJ12*,KDJ120,KZJ120,LJ12*,RZJ12*,TRJ12* 36-08: TRANSFER ASSEMBLY & GASKET KIT
Model Dates: Matching Models: Model Options: Links to diagrams:
09/2002-07/2004 RZJ120L-GKPEK GX, GEN, LHD, 3RZFE, ATM, 4FC, 5D 36-08
09/2002-07/2004 RZJ120L-GKPEKV GX, GCC, LHD, 3RZFE, ATM, 4FC, 5D 36-08
09/2002-07/2004 RZJ120R-GKPEKQ GX, ARL, RHD, 3RZFE, ATM, 4FC, 5D 36-08
09/2002-07/2004 RZJ125L-GJPEK GX, GEN, LHD, 3RZFE, ATM, 4FC, 3D 36-08
09/2002-07/2004 RZJ125L-GJPEKV GX, GCC, LHD, 3RZFE, ATM, 4FC, 3D 36-08
08/2004-07/2009 TRJ120L-GKPEK GX, GEN, LHD, 2TRFE, ATM, 4FC, 5D 36-08
08/2004-07/2009 TRJ120L-GKPEKV GX, GCC, LHD, 2TRFE, ATM, 4FC, 5D 36-08
08/2004-07/2009 TRJ125L-GJPEKV GX, GCC, LHD, 2TRFE, ATM, 4FC, 3D 36-08


MZ_prado

New Member
I am in mozambique
Sep 6, 2013
22
0
16
Quelimane, Mozambique
Many thanks for your help. I'm 2000kms away from koomatiesport, but i'm sending the item to Maputo this weekend. From there I'll have a friend helping me out with this issue. I'm sure the info you provided will be very useful.

Cheers stumog.
MZ


MZ_prado

New Member
I am in mozambique
Sep 6, 2013
22
0
16
Quelimane, Mozambique
This is not a guarantee, but here is what ToyoDiy says about the part number cross reference for the transfer box in your Jap RZJ120W-GGPEK

Part 36100-6D270 (TRANSFER ASSY) was found on the following models:

Date range Model Frames/Options Found in diagram


01/2005- TOYOTA FORTUNER GGN50,60,KUN5*,6*,LAN50,TGN51,61 36-08: TRANSFER ASSEMBLY & GASKET KIT
Model Dates: Matching Models: Model Options: Links to diagrams:
11/2006-07/2008 TGN51L-EKPSKV SR, GCC, IDSUV, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
02/2009-03/2012 TGN51L-NKPSKU SR, VN, SUVW, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
07/2005-07/2008 TGN51L-NKPSKV SR, GCC, SUVW, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
08/2008-06/2011 TGN51R-EKPSKD SR, IDN, IDSUV, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
04/2005-07/2008 TGN51R-NKPSKD SR, IDN, SUVW, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
08/2005-08/2008 TGN51R-NKPSKE SR, MA, SUVW, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
01/2005-07/2007 TGN51R-NKPSKT SR, TH, SUVW, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08


07/2011- TOYOTA FORTUNER GGN50,60,KUN5*,6*,LAN50,TGN51,61 36-08: TRANSFER ASSEMBLY & GASKET KIT
Model Dates: Matching Models: Model Options: Links to diagrams:
07/2011- TGN51L-EKPSKV SR, GCC, IDSUV, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
11/2011- TGN51L-NKPSKF SR, CO, SUVW, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
07/2011- TGN51L-NKPSKV SR, GCC, SUVW, LHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
07/2011- TGN51R-EKPSKD SR, IDN, IDSUV, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
07/2011- TGN51R-NKPSKD SR, IDN, SUVW, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08
09/2011- TGN51R-NKPSKE SR, MA, SUVW, RHD, 2TRFE, HTWC, 4FC, CBU, 5D 36-08


09/2002-02/2010 TOYOTA LAND CRUISER PRADO GRJ12*,KDJ120,KZJ120,LJ12*,RZJ12*,TRJ12* 36-08: TRANSFER ASSEMBLY & GASKET KIT
Model Dates: Matching Models: Model Options: Links to diagrams:
09/2002-07/2004 RZJ120L-GKPEK GX, GEN, LHD, 3RZFE, ATM, 4FC, 5D 36-08
09/2002-07/2004 RZJ120L-GKPEKV GX, GCC, LHD, 3RZFE, ATM, 4FC, 5D 36-08
09/2002-07/2004 RZJ120R-GKPEKQ GX, ARL, RHD, 3RZFE, ATM, 4FC, 5D 36-08
09/2002-07/2004 RZJ125L-GJPEK GX, GEN, LHD, 3RZFE, ATM, 4FC, 3D 36-08
09/2002-07/2004 RZJ125L-GJPEKV GX, GCC, LHD, 3RZFE, ATM, 4FC, 3D 36-08
08/2004-07/2009 TRJ120L-GKPEK GX, GEN, LHD, 2TRFE, ATM, 4FC, 5D 36-08
08/2004-07/2009 TRJ120L-GKPEKV GX, GCC, LHD, 2TRFE, ATM, 4FC, 5D 36-08
08/2004-07/2009 TRJ125L-GJPEKV GX, GCC, LHD, 2TRFE, ATM, 4FC, 3D 36-08
Uwouu, fantastic. Awesome help. Got to learn how to do it ;)
Much appreciated sae70

Cheers.
MZ
