Installation instruction for soft top for LJ73

[caviluca]

Hi,

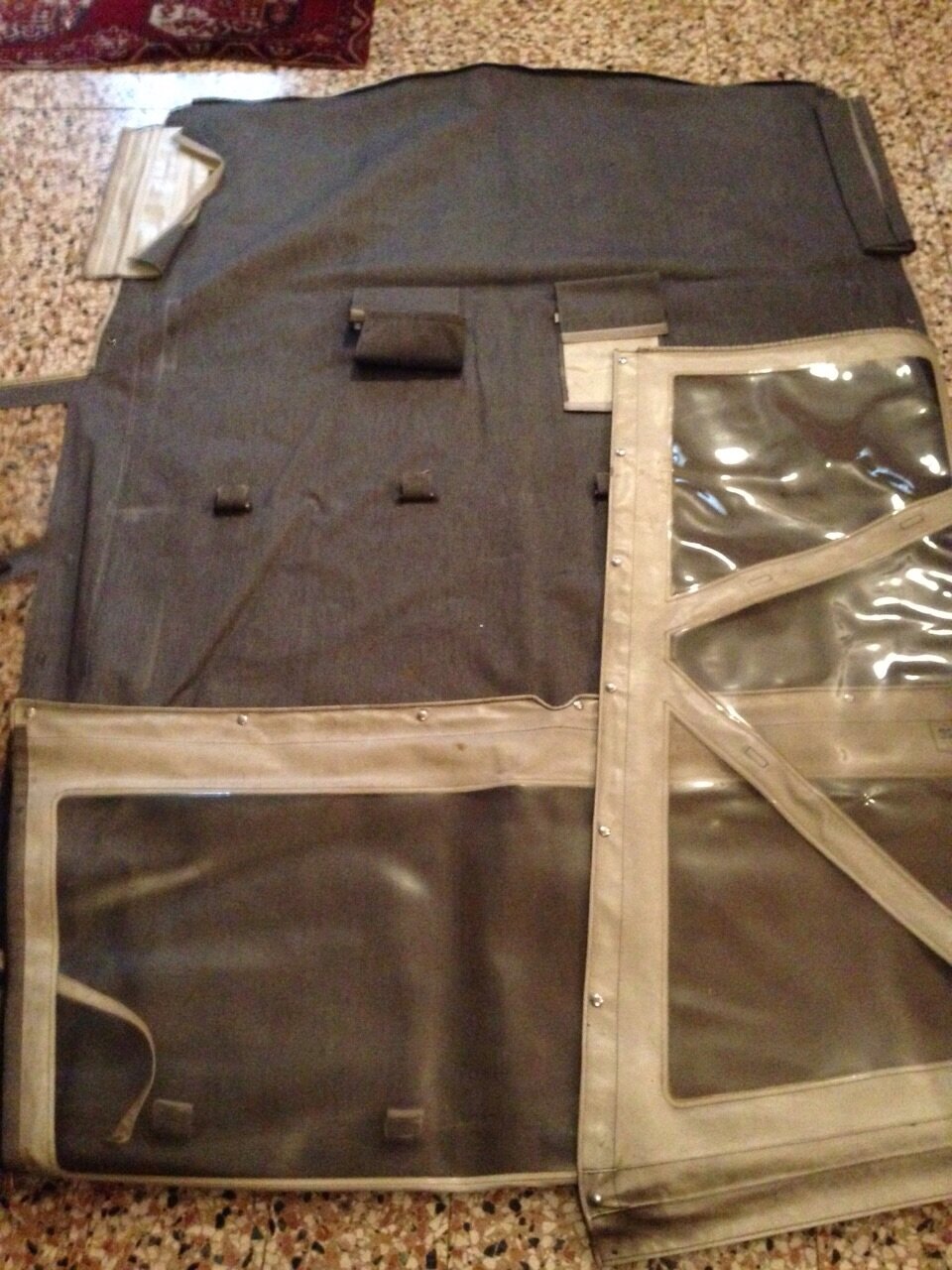

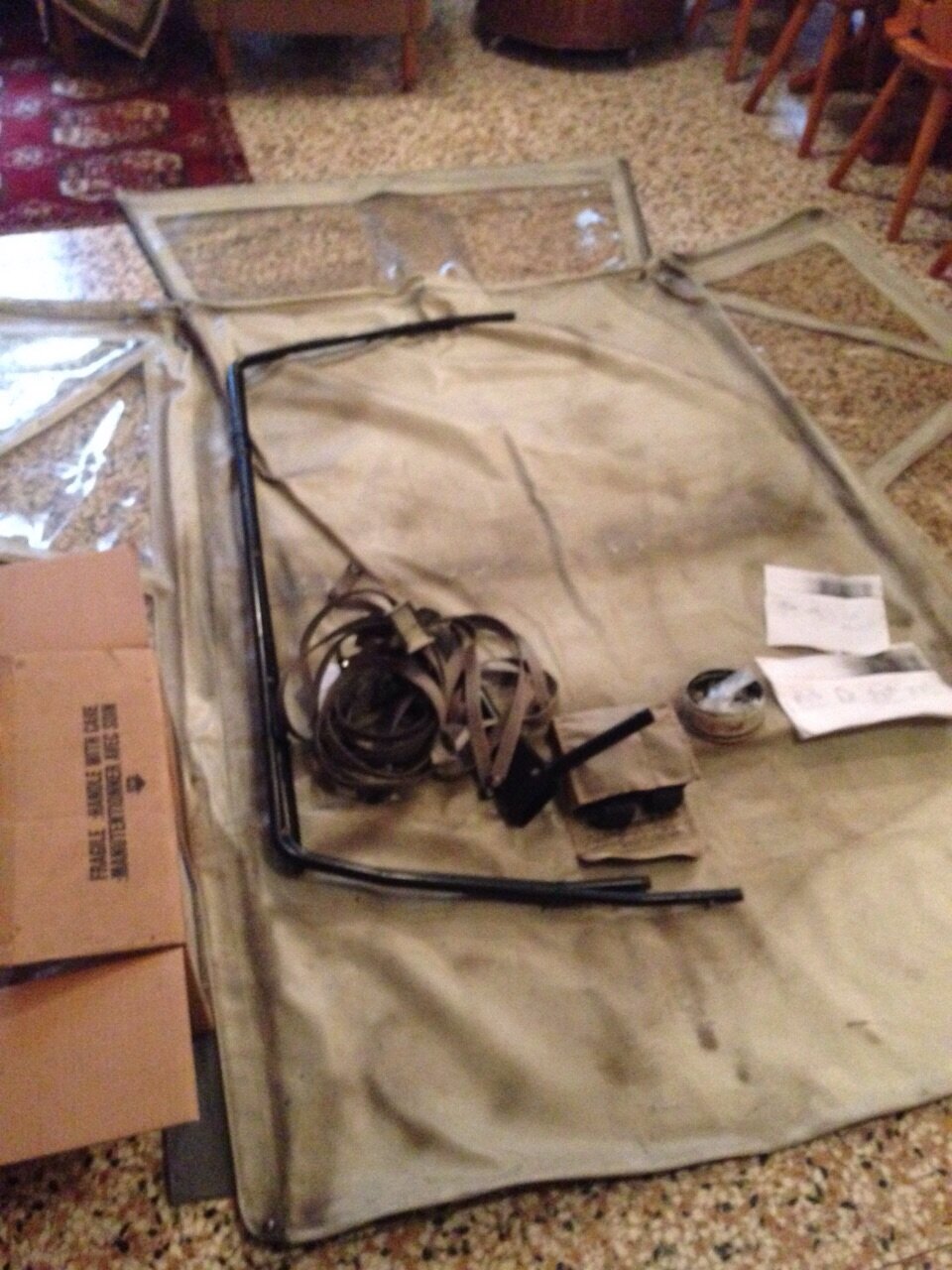

I've buy an original old soft top ( BEST TOPS for Four Wheeler Italiana Torino) for my LJ73,
but now I don't know how to mounting it.
Exist an owner's manual or a technical drawing for this softop?

Thank very much
Luca



[Ben]

Luca, I'm sure its covered in the factory service manual!

My manuals are currently out on loan, but I will get them back on Thursday and post up some pics for you.



[caviluca]

Thank you so much!!!



[Ben]

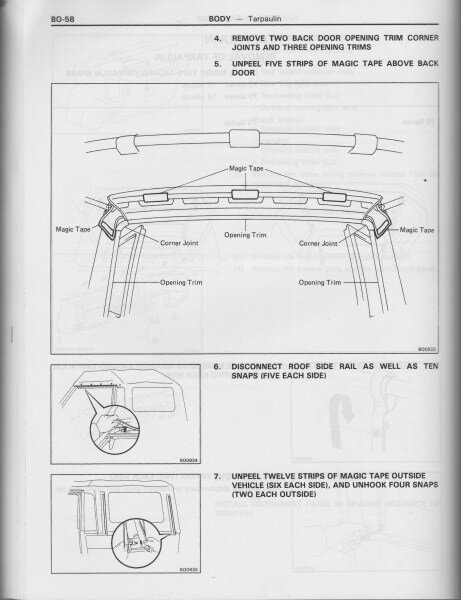

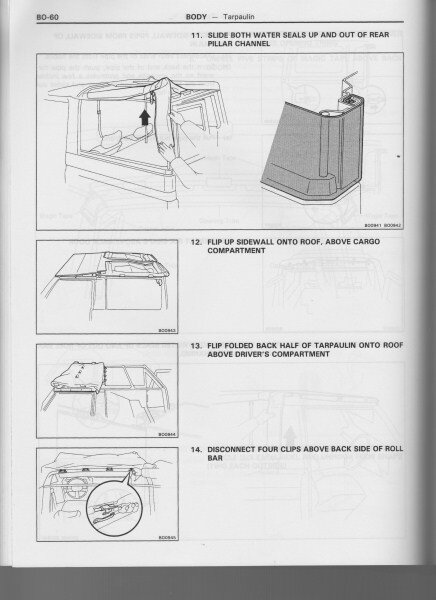

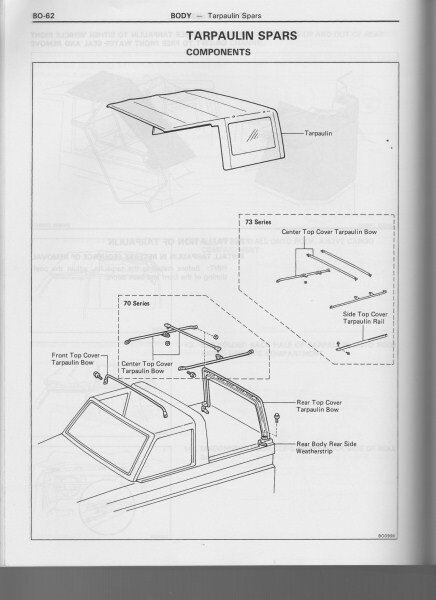

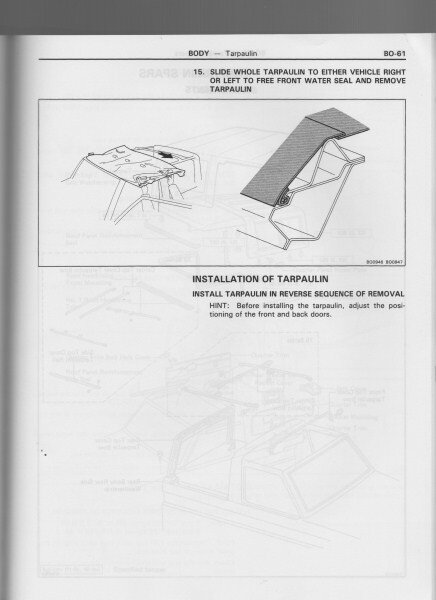

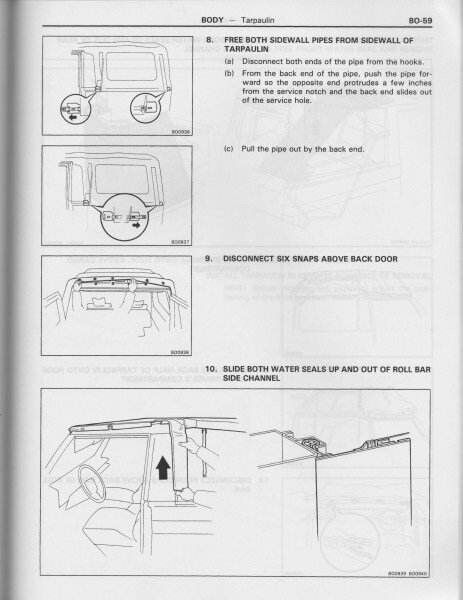

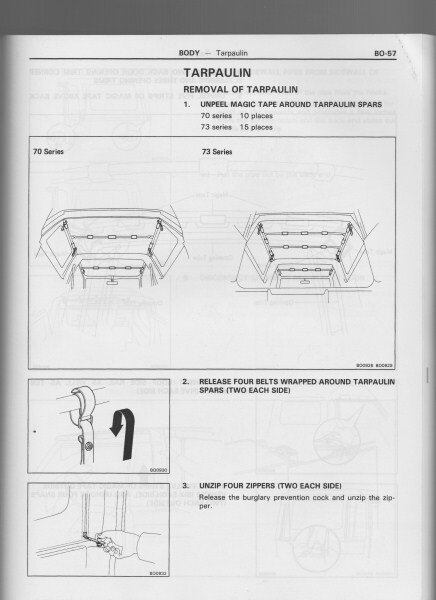

Pics as promised.

They have some unusual names for things in the FSM!

Soft top's are called Tarpaulin's and Velcro is called Magic Tape!



[clivehorridge]

Well done Ben, love this forum!

Good luck with the fitment Luca



[caviluca]

Thank you very much Ben!!!
I hope to do it, but I think that mine is silghtly different.
I'll have to drill hole in the bodywork for studs...
