    Hope I am allowed to document build of my Hilux on here :eusa-whistle: after all its a Toyota :icon-cool:

    Starting with some accessories for the rear tub, a removable storage system.

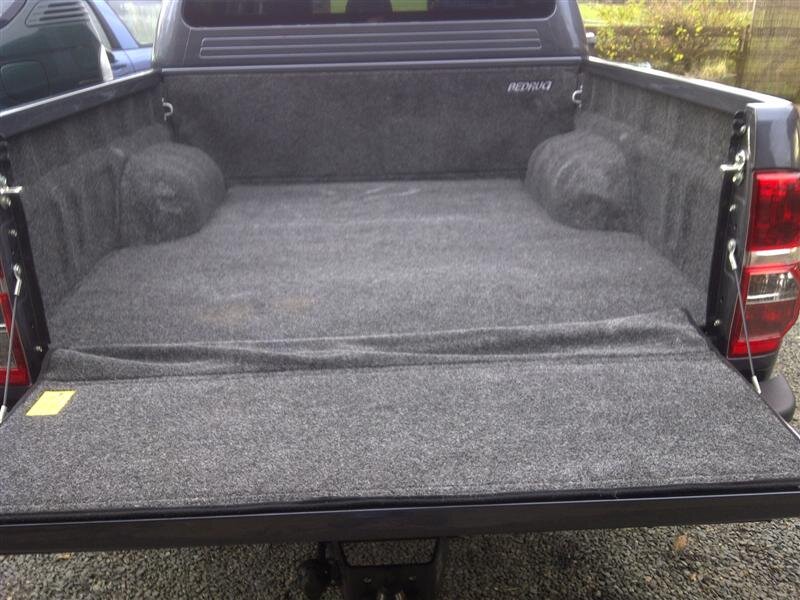

    First I purchased and fitted a Bedrug to protect the load area, this is waterproof and can be jet sprayed and carry logs/junk etc when my storage system is removed.

    IMG-20131127-01214 (Medium).jpg

    I have ordered a custom made N&J aluminum overland canopy to be fitted at some-point in next few months, once it has been fabricated.

    In meantime I have started on drawer build. I am using the method Sam used after discussions with Chris.
    The main frame being 30cm cable tray, and I am building a system very similar to the African Outback drawers.
    Sealed cartridge bearings used for the runners.
    The drawers will be around 30cm in depth, 50cm wide and 120cm long. there will still be 25cm space at the front of the tub for water-tank etc. and 20cm wide spaces at each side, for leisure battery and other stuff.

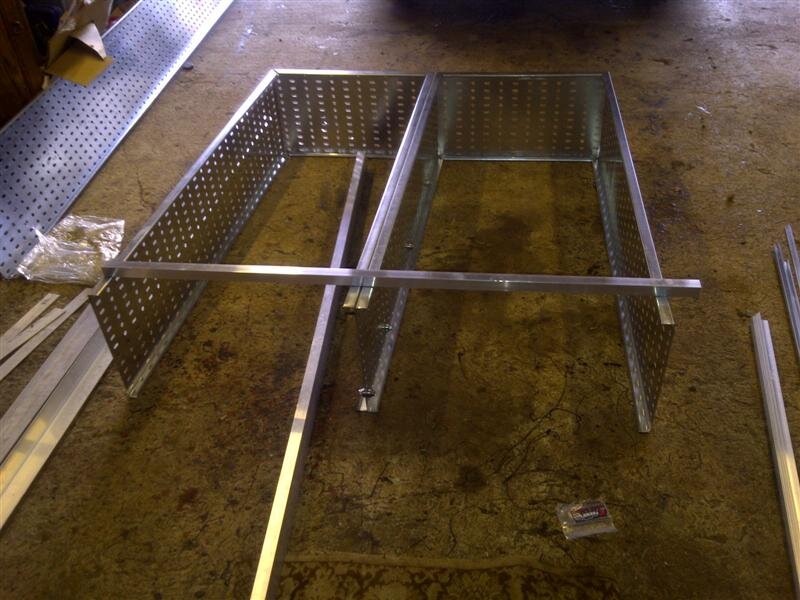

    so I made on-side from the cable tray after cutting and folding it.
    I will be bolting profiled "cargo track" to the floor of the tub, then the removable drawer frame will bolt to these. when the drawers are removed, other tie-down loop accessories etc can be fitted to the cargo track, or a rubber strip I bought can be inserted along it to fill in the channel holes etc.

    IMG-20131208-01218 (Medium).jpg

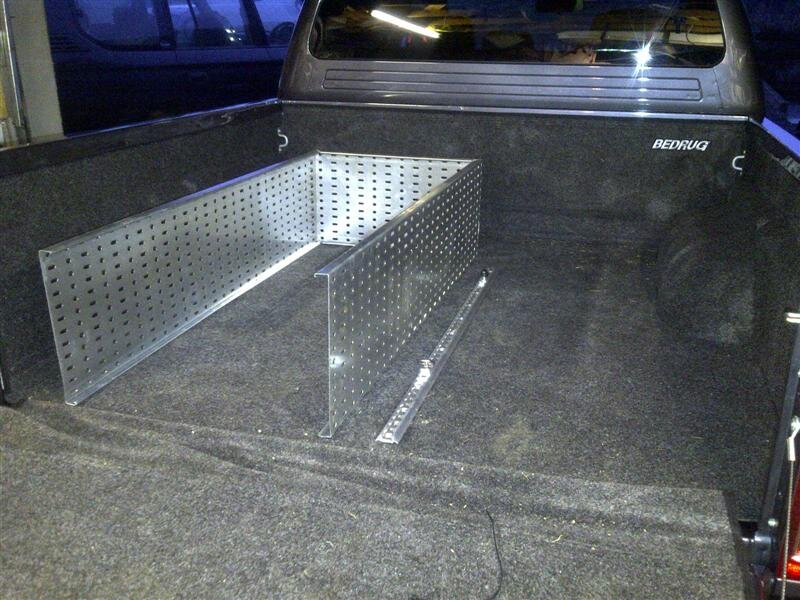

    Then the otherside

    IMG-20131209-01219 (Medium).jpg

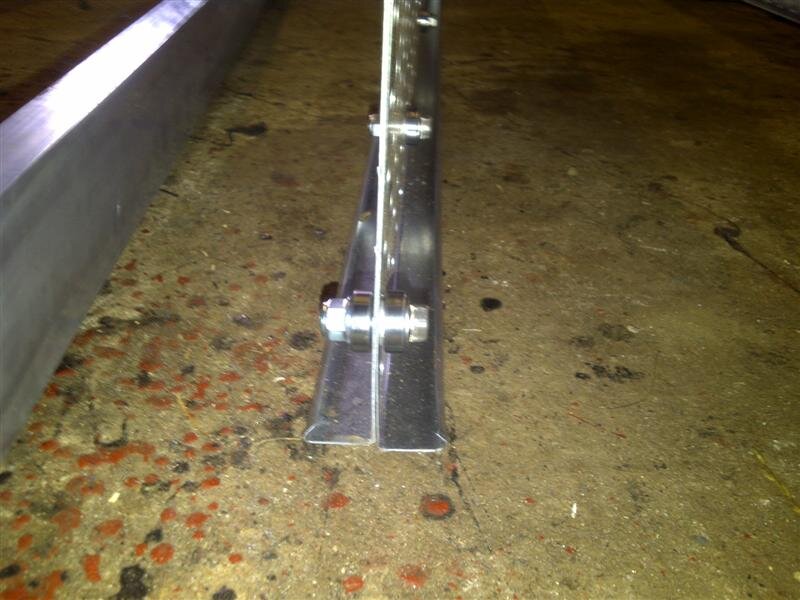

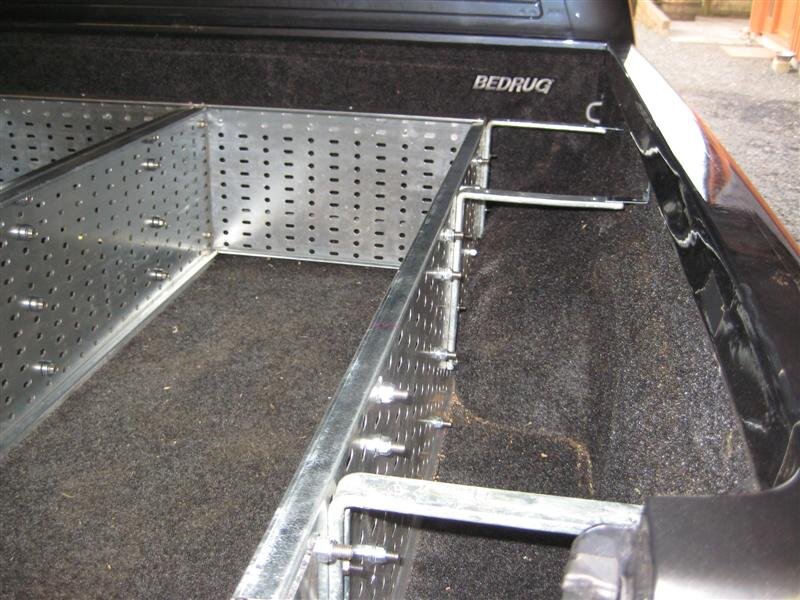

    bolted some bearings in place

    IMG-20131209-01220 (Medium).jpg

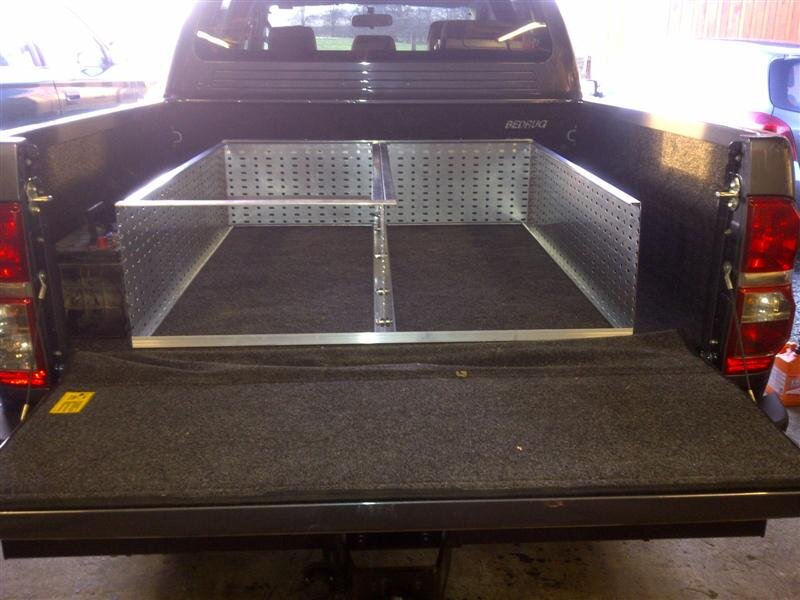

    The fitted back in tub, after adding some extra bracing

    IMG-20131209-01222 (Medium).jpg

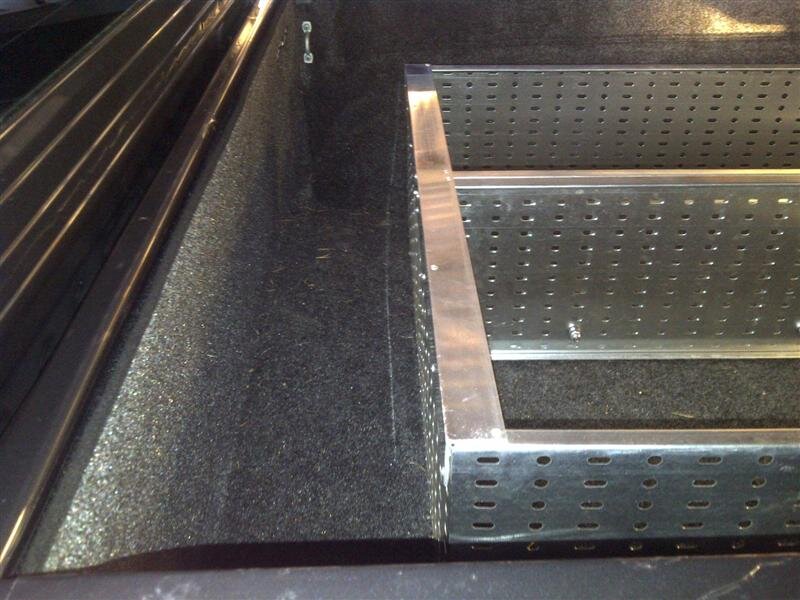

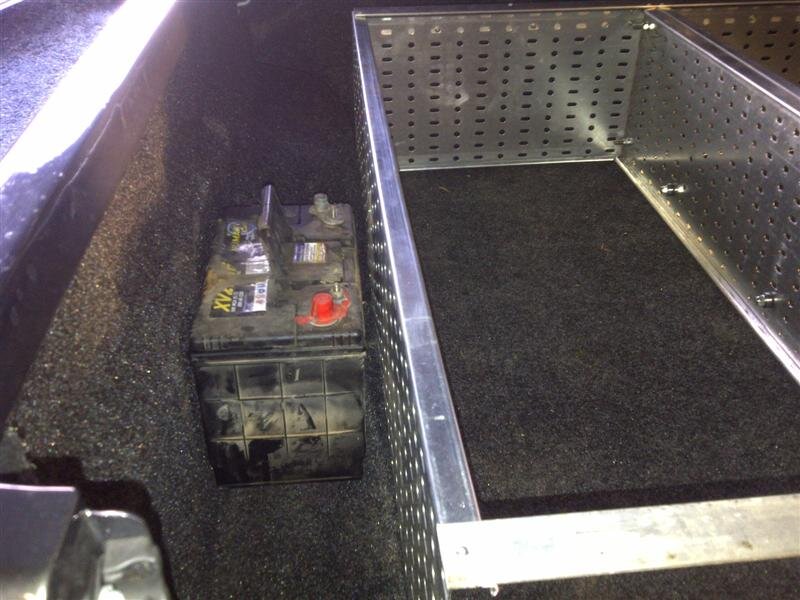

    plenty of room for leisure battery in the side wings

    IMG-20131209-01224 (Medium).jpg

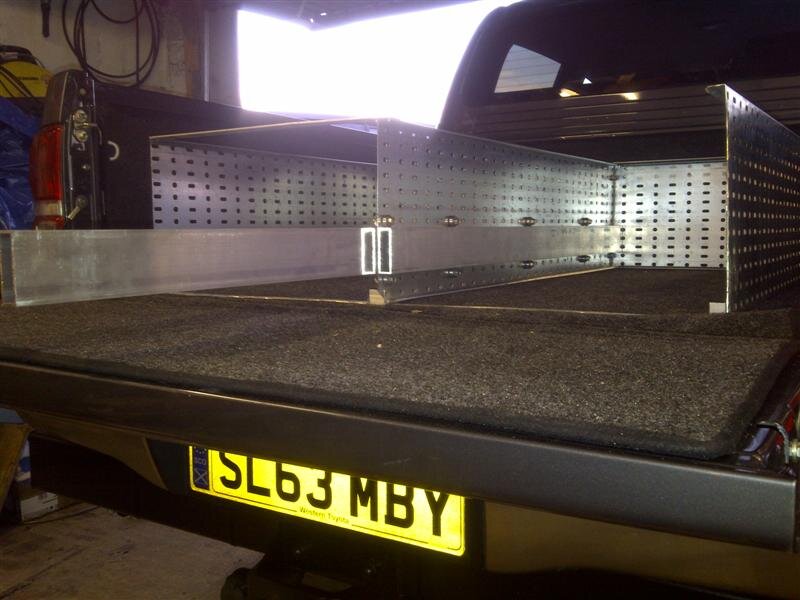

    And useful space at front of tub for water tank and other kit


    IMG-20131209-01225 (Medium).jpg

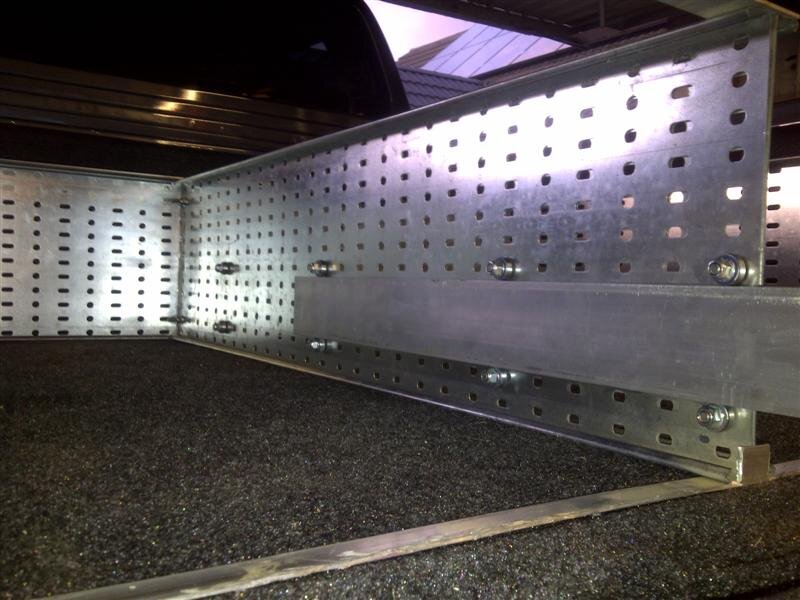

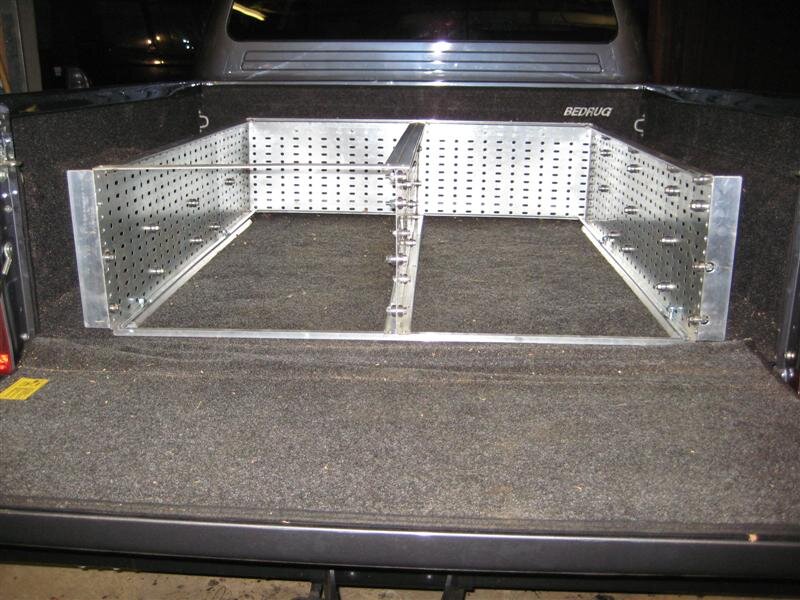

    Fitted more bearings and test fitted the aluminum channel runners for main drawers.

    IMG-20131209-01226 (Medium).jpg

    IMG-20131209-01227 (Medium).jpg

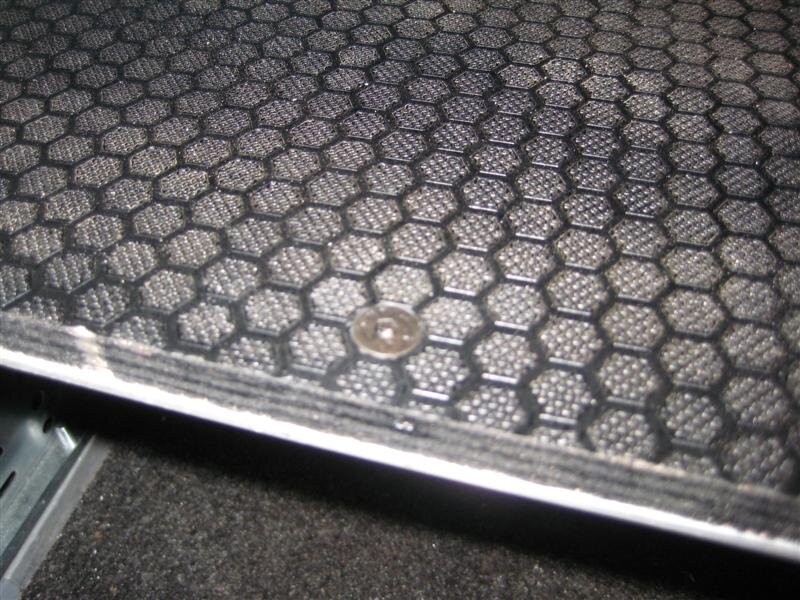

    The unit top and drawers will be made from 12mm hexagrip

    IMG-20131202-01215 (Medium).jpg

    My plan is to make the drivers side top of unit a sliding panel, above the drawer, as a fridge slide - like the AO system
    so both can be opened/closed independently

    thats all for now :)

  2. grantw

    grantw Well-Known Member Supporter

    1,753
    180
    63
    Map
    Brilliant idea on the drawers. They are coming along very nicely.

  3. Ecoman

    Ecoman Well-Known Member I am in scotland

    1,893
    4
    38
    Map
    Looking good Andy:thumbup:

  4. stumog

    stumog Well-Known Member I am in england

    2,953
    380
    83
    Map
    well done good idea with the electric channel. what you going to make the drawers from sorry cant wait.
    stu

  5. AndyCook

    AndyCook Well-Known Member I am in scotland

    3,534
    359
    83
    Garage:
    Map
  6. stumog

    stumog Well-Known Member I am in england

    2,953
    380
    83
    Map
    brillent idea. well done all that came up with it.stu

  7. Gav Peter

    Gav Peter Well-Known Member I am in england

    4,827
    6
    38
    Map
    Great start Andy. Looking forward to seeing how it turns out :)

    Sent from my GT-I9100 using Tapatalk

  8. Chris

    Chris Super Moderator Supporter I am in europe

    15,175
    2,552
    113
    Garage:
    Map
    Thanks for the credit there Andy. It was my idea but I never made any. Quite a bit of work but a MASSIVE saving. Ben went down that route too with his drawers. It's all that the African Outback ones are made from really. Once again it's the thinking that you pay for not the material. I might make a small set of vertical stacking ones for the back or to go where one of the rear seats fits. 3 or 4 drawers maybe. We'll see.

    Nice work buddy. Tidy as ever.

  9. Gary820

    Gary820 Well-Known Member I am in great_britain

    2,785
    980
    113
    Garage:
    Map
    Very nice and a great idea. Nice motor too.

  10. warrenpfo

    warrenpfo Well-Known Member

    2,893
    10
    38
    Map
    Flipping fantastic, im watching with much interest and will follow suit.

  11. SpinDrift

    SpinDrift Well-Known Member Supporter

    1,021
    61
    48
    Garage:
    Map
    That looks great Andy. Watching with interest.

  12. clivehorridge

    clivehorridge Well-Known Member Supporter Guru I am in romania

    13,657
    3,600
    113
    Garage:
    Map
    Very neat and professional Andy, watching with interest :icon-biggrin:

  13. stumog

    stumog Well-Known Member I am in england

    2,953
    380
    83
    Map
    Andy
    do you have a supplier for handle / catches please. love the idea and getting the bits together now. I think i am going to do different size drawers.
    stu

  14. AndyCook

    AndyCook Well-Known Member I am in scotland

    3,534
    359
    83
    Garage:
    Map
    No - just been looking on ebay and searching on here for them actually
    i have flight case handles aready from my old drawer system
    but looking for a different latch mechanism, preferably a sprung slam latch

  15. stumog

    stumog Well-Known Member I am in england

    2,953
    380
    83
    Map
    i looked at a supplier i used to use for catches and they dont do them. there is another company i know off but cant remeber there name.
    stu

  16. grantw

    grantw Well-Known Member Supporter

    1,753
    180
    63
    Map
  17. stumog

    stumog Well-Known Member I am in england

    2,953
    380
    83
    Map
    Have alook here they do do the ones i was thinking of.
    They are a bit hard work but pretty cheap as they deal with the trade. they also do the Aluminium runners for tieing things down. its in coach seat section have a look good products.
    http://www.stedall.co.uk/acatalog/Online_Store.html
    Stu

  18. AndyCook

    AndyCook Well-Known Member I am in scotland

    3,534
    359
    83
    Garage:
    Map
    I am between jobs at the moment, so cracking on with my storage drawer build

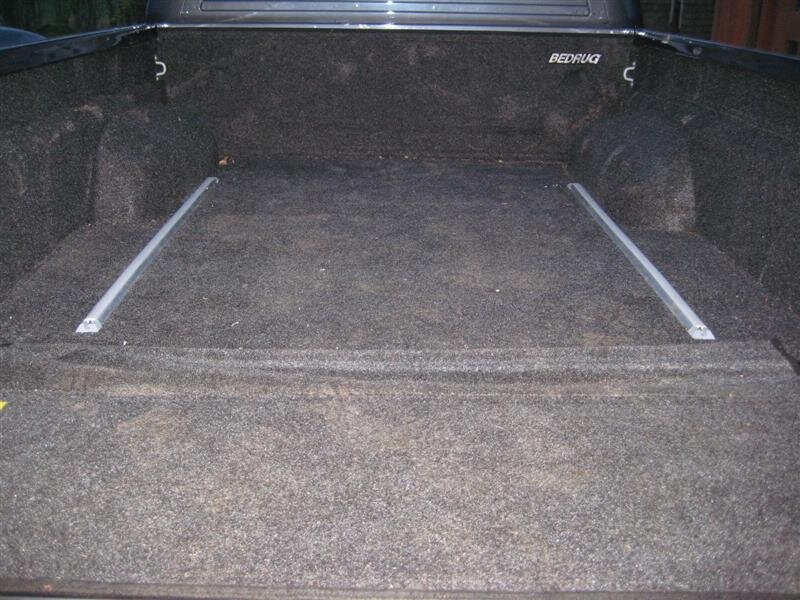

    Fitted cargo track, and protective rubber strip prior to filling the tub with elm logs i was shifting from chopping area to my log store

    IMG_5820 (Medium).JPG

    IMG_5823 (Medium).JPG

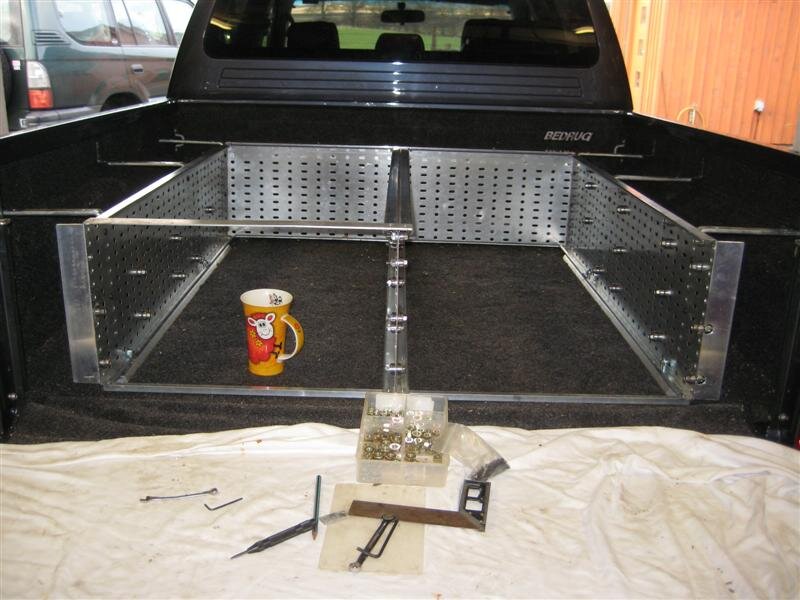

    Fitted my drawer frame onto the cargo track bolts

    IMG_5824 (Medium).JPG

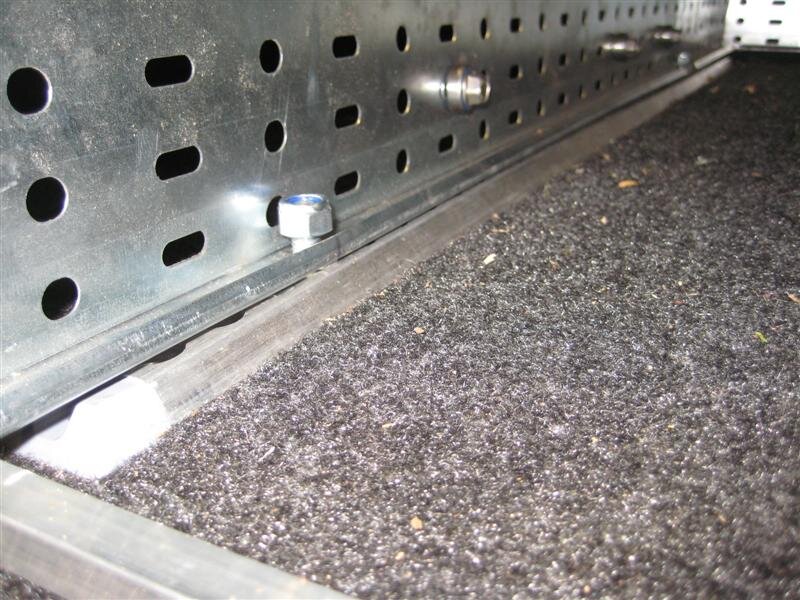

    Cargo track - T-bolts

    IMG_5825 (Medium).JPG

    strong shelf brackets used to make "wings" on sides of drawers for storage cubbyholes

    IMG_5826 (Medium).JPG

    the side wing area

    IMG_5827 (Medium).JPG

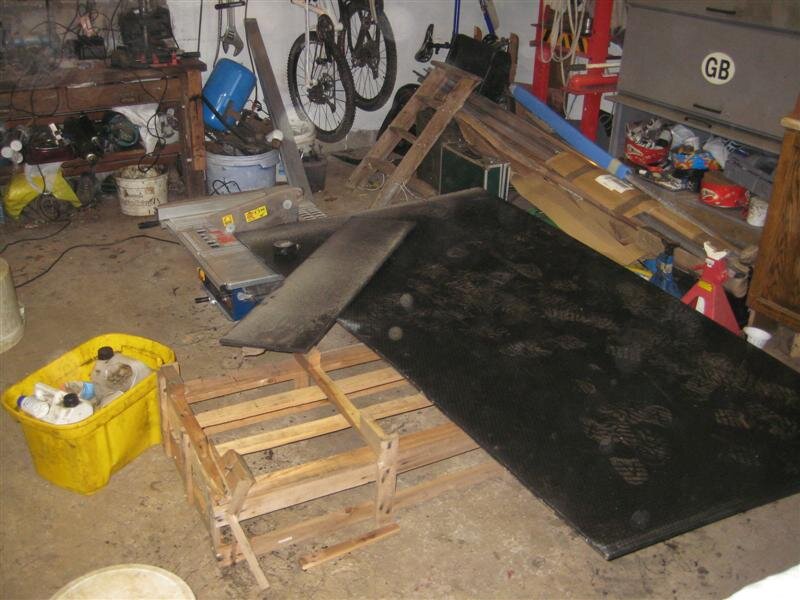

    cutting the Buffalo board sheet
    IMG_5828 (Medium).JPG

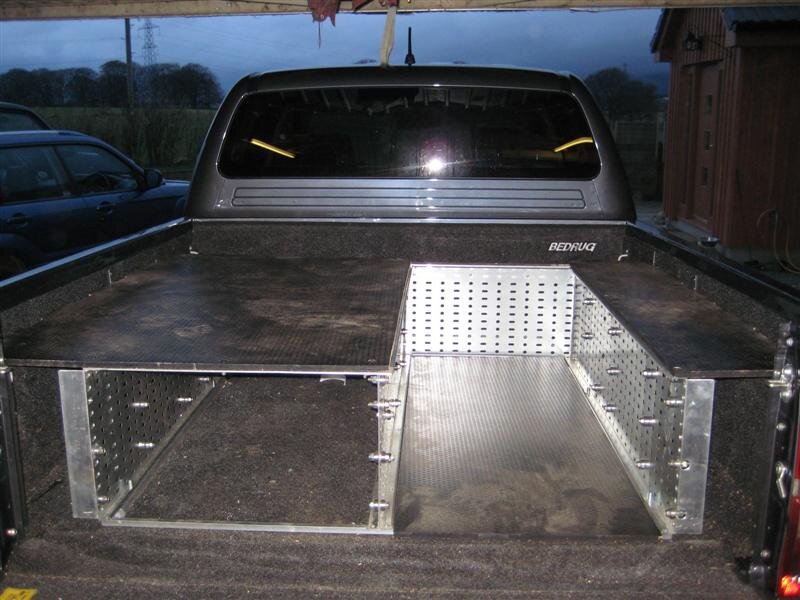

    Drawer tops made from buffalo board

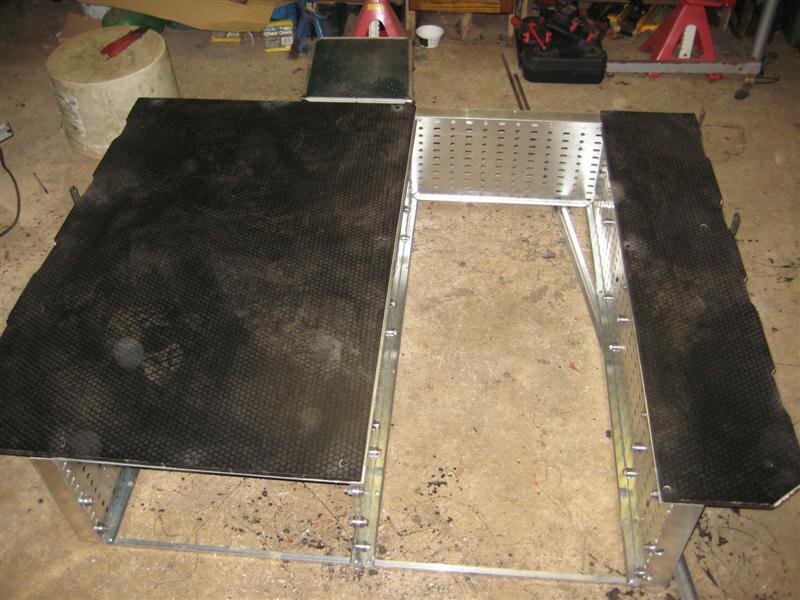

    IMG_5829 (Medium).JPG


    IMG_5830 (Medium).JPG

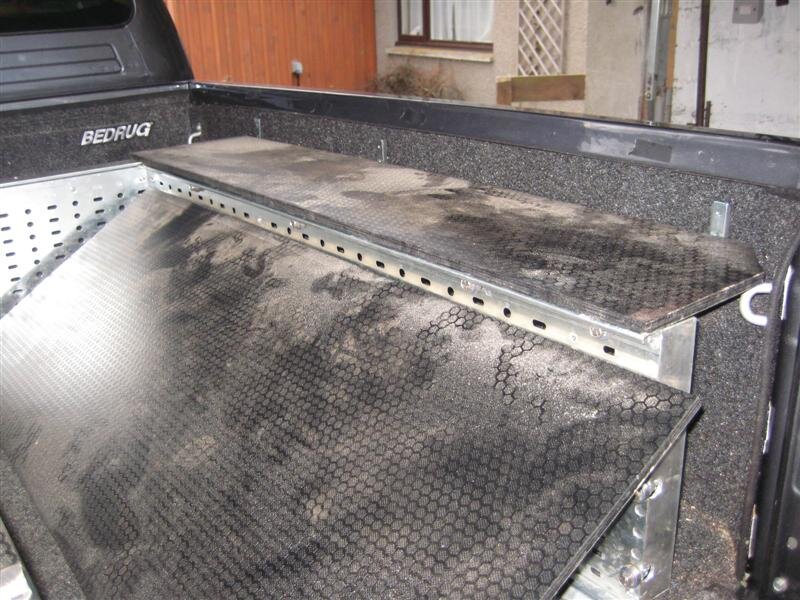

    one of side wings

    IMG_5831 (Medium).JPG

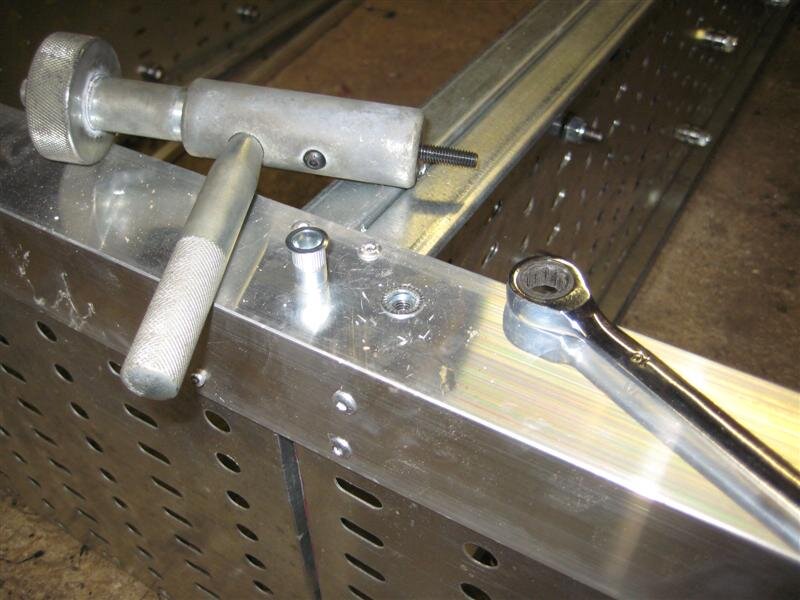

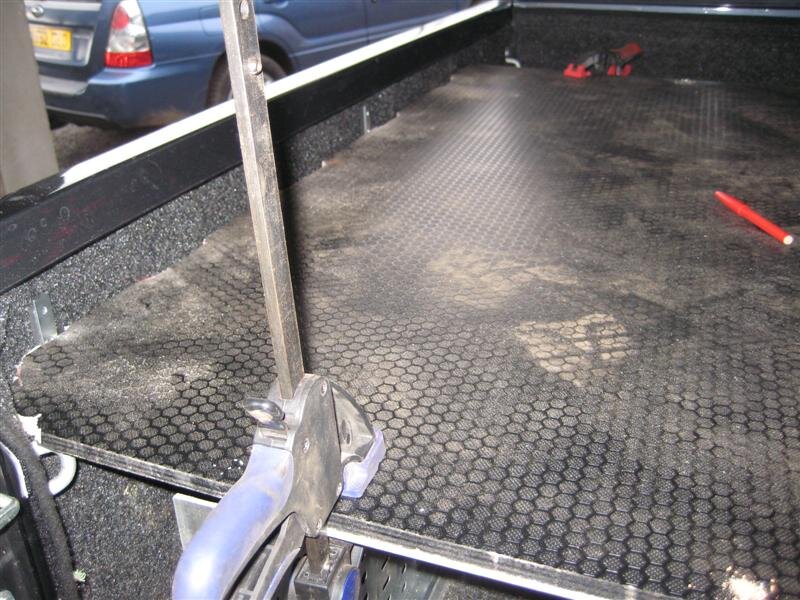

    Securing the top of drawers to the frame with rivnut inserts

    IMG_5832 (Medium).JPG

    space inbetween for fridge slide

    IMG_5833 (Medium).JPG

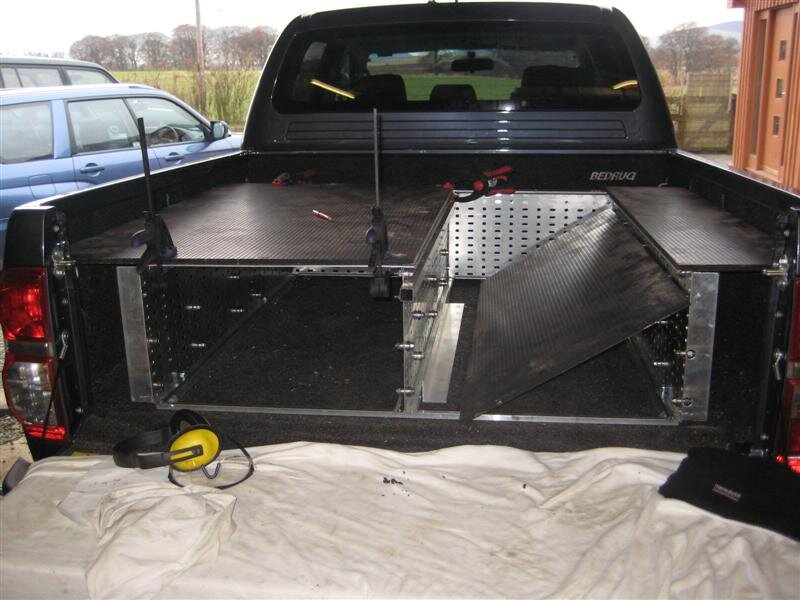

    fitted in vehicle

    IMG_5834 (Medium).JPG

    flush hex bolts secure board to frame via rivnuts

    IMG_5835 (Medium).JPG

    Last edited: Dec 18, 2013
  19. sae70

    sae70 Well-Known Member I am in uk

    2,610
    0
    36
    Garage:
    Map
    Those are a thing to behold :clap: Love 'em :icon-biggrin: We need more dimensions and part number though, else how are we supposed to make our own :icon-rolleyes: Perhaps some links to suppliers :icon-smile:

  20. fridayman

    fridayman Well-Known Member

    1,578
    0
    36
    Garage:
    Map
    Looks very good. Will it be waterproof?
