Been a bit of a wiring frenzy today in between the downpours. Just about there.
Started with a chunk of steel plate and got going with some milling Action. More on this later.
But this groove
fits into this cut out
like this.
Quite a bit of milling later .....
OK, it was dry for a bit so I headed outside. Got the main feed from the fuse to the CTEK laid in.
Got most of the main cables in, with just a bit of tying back to do against the tray.
Had to retreat again, so busied myself with fitting outlets. I wired in some cigar lighter sockets and USB charging points. Plus a little LED voltmeter. Which if nothing else lets me know the power is on.
All these go through the Blue Sea switch panel.
At this point I remembered how much I hate cigar lighter sockets. OK in about 1970 they were a revolution but in 2014, come on. So I cut the plug off the fridge and hard wired it straight into the switch. Ahh, before you say something, I have a spare lead. I raided VWP the other day and bought little sleeved grommets and all sorts of bits. Nice tidy finish and it can't be yanked through.
Next job was to start at the other end and get ready for the battery going in.
Fixed the shunt to this handy strut and connected the chassis earth.

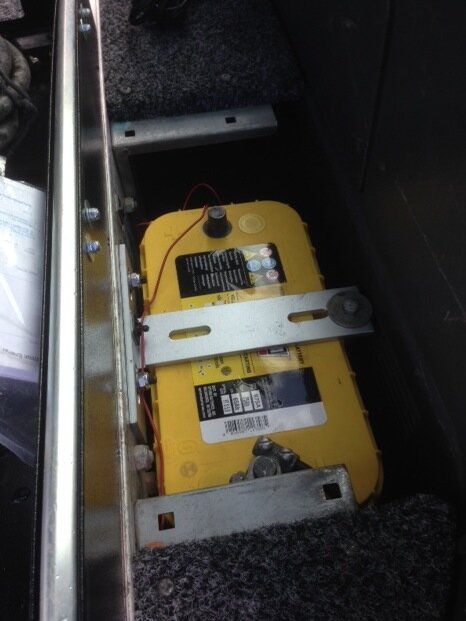

Now this bit I am pleased with. There must be 34 ways to fasten the battery down. But this came to me. The first plate is bolted to the drawer carcass and the second top plate hooks underneath. The end of the plate has a hole with the bolt running down to a turnbuckle hooked through a big stainless ring (actually a staple from a hasp and staple) bolted through the floor pan. The tension I can get on that is so much, I actually backed it off a little in case I cracked the battery case! That battery is going nowhere. It was pretty captive to start with but now. It's fixed.
Off road tomorrow, but on Monday I should get the power on. It's progress. Need to fasten the inverter in, but at least the cabling is in for that over on the other side.
Started with a chunk of steel plate and got going with some milling Action. More on this later.
But this groove
fits into this cut out
like this.
Quite a bit of milling later .....
OK, it was dry for a bit so I headed outside. Got the main feed from the fuse to the CTEK laid in.
Got most of the main cables in, with just a bit of tying back to do against the tray.
Had to retreat again, so busied myself with fitting outlets. I wired in some cigar lighter sockets and USB charging points. Plus a little LED voltmeter. Which if nothing else lets me know the power is on.
All these go through the Blue Sea switch panel.
At this point I remembered how much I hate cigar lighter sockets. OK in about 1970 they were a revolution but in 2014, come on. So I cut the plug off the fridge and hard wired it straight into the switch. Ahh, before you say something, I have a spare lead. I raided VWP the other day and bought little sleeved grommets and all sorts of bits. Nice tidy finish and it can't be yanked through.
Next job was to start at the other end and get ready for the battery going in.
Fixed the shunt to this handy strut and connected the chassis earth.
Now this bit I am pleased with. There must be 34 ways to fasten the battery down. But this came to me. The first plate is bolted to the drawer carcass and the second top plate hooks underneath. The end of the plate has a hole with the bolt running down to a turnbuckle hooked through a big stainless ring (actually a staple from a hasp and staple) bolted through the floor pan. The tension I can get on that is so much, I actually backed it off a little in case I cracked the battery case! That battery is going nowhere. It was pretty captive to start with but now. It's fixed.
Off road tomorrow, but on Monday I should get the power on. It's progress. Need to fasten the inverter in, but at least the cabling is in for that over on the other side.
Whoo hoo look at the pwetty lights.
Last cable in and fixed. Found some really grippy reusable cable clamps in Maplin. Very good for this sort of thing.
Unit lights up
Switches powered
Victron..Victron.. Christ knows but it's doing something.
I put a small LED voltmeter in the cabin too, just as a simple reference when looking at the units from the back seats. It's powered from the unit and not from the battery - read 14.5 immediately I fired up. After a minute or so, the other split charge came in and it dropped, within a couple of seconds, the units boosted that back to 14.5.
Right, well as long as it doesn't catch fire ......
Last cable in and fixed. Found some really grippy reusable cable clamps in Maplin. Very good for this sort of thing.
Unit lights up
Switches powered
Victron..Victron.. Christ knows but it's doing something.
I put a small LED voltmeter in the cabin too, just as a simple reference when looking at the units from the back seats. It's powered from the unit and not from the battery - read 14.5 immediately I fired up. After a minute or so, the other split charge came in and it dropped, within a couple of seconds, the units boosted that back to 14.5.
Right, well as long as it doesn't catch fire ......
