Well, finally got cracking on the winch bumper today. Not all gone entirely to plan but at least the winch tray is made and fixed on. I bought a winch tray thinking that I was very clever and subsequently have spent all day trying to make use of it. Should have ditched it and gone with plan A. Still, Jon will be pleased to know that it's 14mm thick now. Well over-engineered. I have some finishing off to do on the mount and then I will have to think about the rest of the bumper. Just for speed, seeing as Lincomb is looming, I shall just make a sort of space frame affair to keep it 'legal' as I think that PC Pullem might not like it as it is.

Really good to work with. Better than a 90. Plenty of bolt holes in there already



Made some sort of overshoe brackets to start with to mount the arms for the tray



The angle is 10 mm. Nice and strong

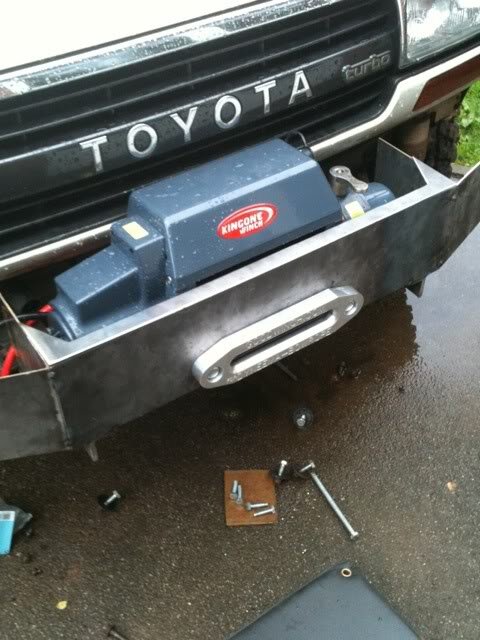

And there we have a winch mounted and working



Lots to do tomorrow.

Chris

Don't like the adverts? Remove them by becoming a supporting member.   Click here

Chris

Super Moderator
Supporter
I am in europe
Feb 24, 2010
17,182
3,951
113
Chesterfield, Derbyshire
Garage
Well it's a 9.5i. I believe that it's the same externally as the 12i. Just the gearing that's different. It does look bigger than the basic 9.5 but I prefer the contacts in the bridge on the TDS. Just easier and neater. I guess you could get a standard winch tucked under the grille a little more, but this is as close as you can get this puppy.

Nice to be welding again. I've missed it. Still got the touch.

CHris


Chris

Super Moderator
Supporter
I am in europe
Feb 24, 2010
17,182
3,951
113
Chesterfield, Derbyshire
Garage
Well, had time to reflect on the day's efforts and was on the drive at 07.30 taking it off again. I didn't like the winch tray and decided that it would mount nicely upside down at the back when I come to make my rear winch. That gave me a clear field to go at. And go at it I did until I ran out of steel.

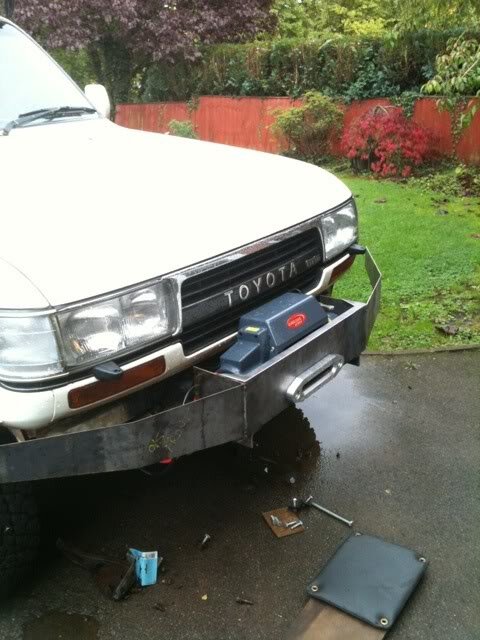

Got the front box made up and the main fender sections too. Once I cut the top sections and weld the internal gussets in place it will be mighty strong. I can get High Lift points in and my ARB recovery hooks too, plus of course the outlets for my compressor. Hope to be legal for Lincomb or it's back on with the old one. It won't be finished, but as long as it's OK to travel, I shall be sporting a rusty new winch bumper come Friday.

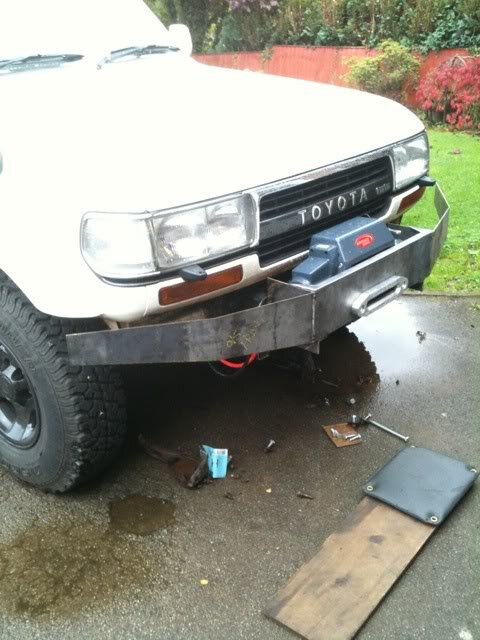

Really starting to come together now. Will get some more steel tomorrow. It's all 3mm. Not too heavy to lift. Nice to weld. When powder coated it will look almost like a bought one. But a fraction of the price of course. Spent nearly £20 on steel so far!!
